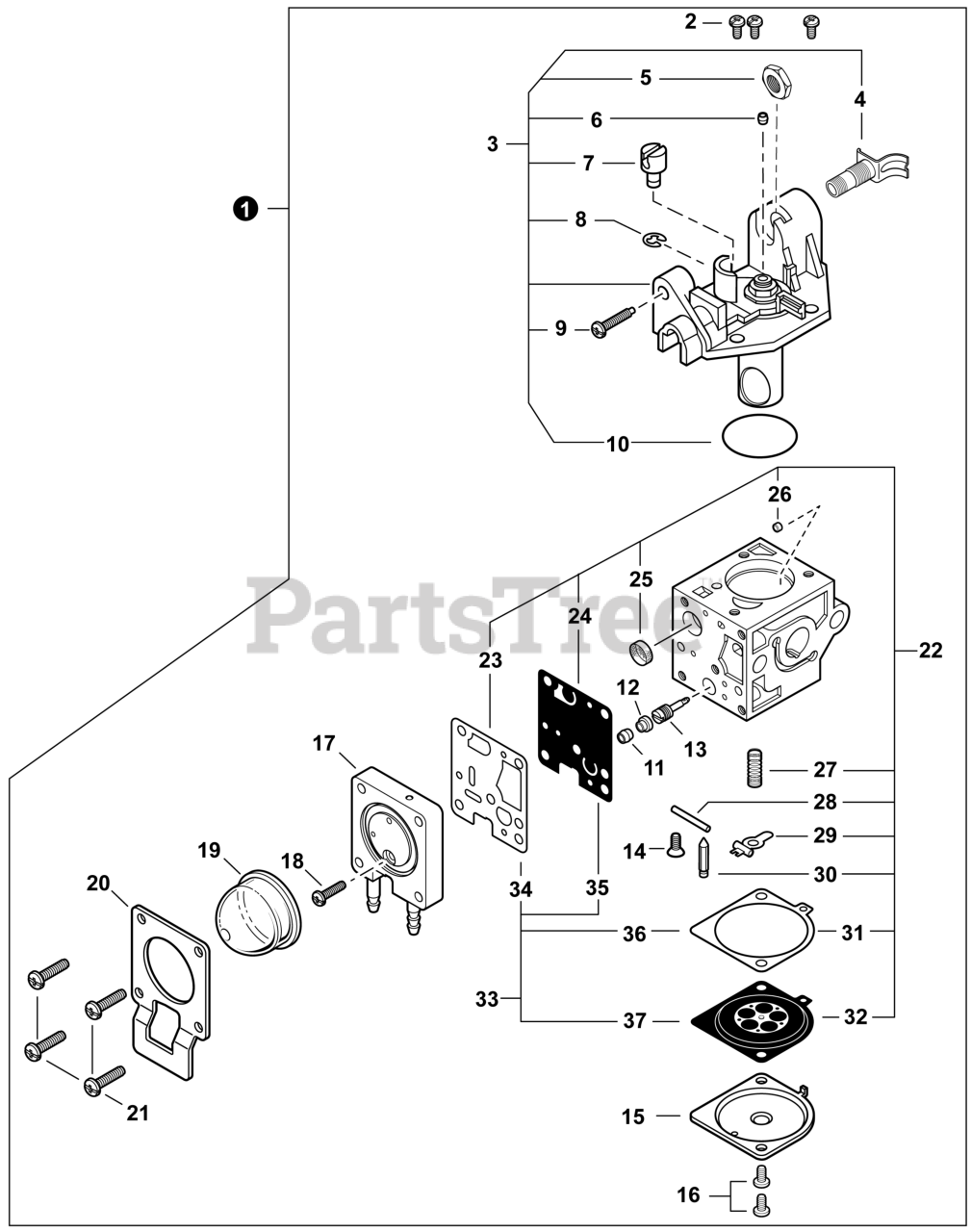

PB-255 LN - Echo Handheld Blower (SN: P60412001001 - P60412999999) Carburetor Parts Diagram

Handheld Blower

Carburetor Parts Diagram

  • Title

1

Echo A021005460

CARBURETOR - Z011-0OA

Note: Includes Items 2-37

$72.99

$

Usually ships in 2-4 days

0

2

Echo 12534413931

SCREW

Note: +

$2.99

$

In Stock, Qty 9

0

3

Echo P005004810

COVER KIT, ROTOR

Note: Includes Items 4-10+

$22.99

$

Usually ships in 2-4 days

0

4

--

ADJUSTER, CABLE

Note: ++

$

$

Not available

5

--

NUT

Note: ++

$

$

Not available

6

--

PLUG

Note: ++

$

$

Not available

7

--

SWIVEL

Note: ++

$

$

Not available

8

--

E-RING

Note: ++

$

$

Not available

9

--

SCREW, THROTTLE ADJUST

Note: ++

$

$

Not available

10

--

O-RING

Note: ++

$

$

Not available

11

Echo P005001270

PLUG

Note: +

$1.49

$

In Stock, Qty 20+

0

12

Echo P005005320

CAP, LIMITER

Note: +

$4.49

$

Usually ships in 2-4 days

0

13

Echo P005001260

NEEDLE, HIGH SPEED

Note: +

$6.99

$

In Stock, only 2 left!

0

14

Echo 12533942030

SCREW

Note: +

$0.99

$

In Stock, Qty 11

0

15

Echo 12534252130

COVER, METERING DIAPHRAGM

Note: +

$4.99

$

In Stock, only 2 left!

0

16

Echo 12534452130

SCREW

Note: +

$0.99

$

In Stock, Qty 10

0

17

Echo P005004240

BODY ASSY, PURGE

Note: +

$35.99

$

In Stock, only 2 left!

0

18

Echo P005000270

SCREW

Note: +

$1.49

$

In Stock, Qty 20+

0

19

Echo P005003110

BULB, PURGE

Note: +

$7.99

$

In Stock, Qty 20+

0

20

Echo P005000250

RETAINER, PURGE BULB

Note: +

$2.49

$

In Stock, Qty 13

0

21

Echo P005001900

SCREW

Note: +

$0.99

$

In Stock, Qty 20+

0

22

Echo P005002280

REPAIR KIT, CARBURETOR

Note: Includes Items 23-32+

$17.99

$

In Stock, Qty 20+

0

23

--

GASKET, PUMP

Note: ++

$

$

Not available

24

--

DIAPHRAGM, PUMP

Note: ++

$

$

Not available

25

--

SCREEN, FUEL INLET

Note: ++

$

$

Not available

26

--

GUIDE, ROLLER

Note: ++

$

$

Not available

27

--

SPRING, METERING LEVER

Note: ++

$

$

Not available

28

--

PIN, METERING LEVER

Note: ++

$

$

Not available

29

--

LEVER, METERING

Note: ++

$

$

Not available

30

--

VALVE, INLET NEEDLE

Note: ++

$

$

Not available

31

--

GASKET, METERING DIAPHRAGM

Note: ++

$

$

Not available

32

--

DIAPHRAGM, METERING

Note: ++

$

$

Not available

33

--

GASKET / DIAPHRAGM KIT

Note: Includes Items 34-37+

$

$

Not available

34

--

GASKET, PUMP

Note: ++

$

$

Not available

35

--

DIAPHRAGM, PUMP

Note: ++

$

$

Not available

36

--

GASKET, METERING DIAPHRAGM

Note: ++

$

$

Not available

37

--

DIAPHRAGM, METERING

Note: ++

$

$

Not available
