PB-255 LN - Echo Handheld Blower (SN: P60412001001 - P60412999999) Fuel System Parts Diagram

Handheld Blower

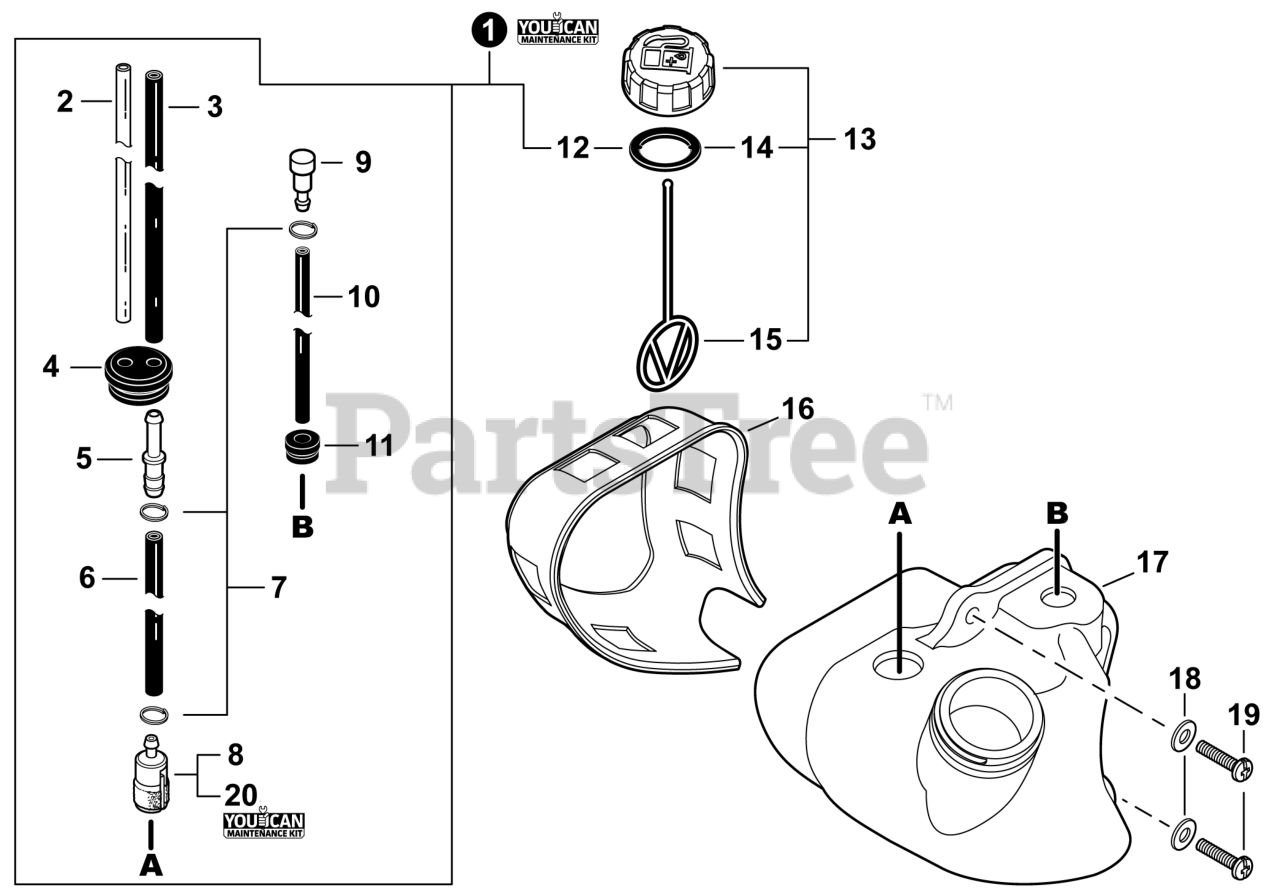

Fuel System Parts Diagram

  • Title

1

Echo 90130Y

FUEL SYSTEM KIT - YOUCAN™

Note: Includes Items 2-12

$29.99

$

In Stock, Qty 10

0

2

Echo 13201049730

PIPE, FUEL 3x6x85 YELLOW

Note: +

$2.99

$

In Stock, only 3 left!

0

3

Echo V471005660

PIPE, FUEL 3x5.5x87 BLACK

Note: +

$4.49

$

In Stock, only 2 left!

0

4

Echo 13211544331

GROMMET, FUEL

Note: +

$2.49

$

In Stock, Qty 20+

0

5

Echo V186000520

CONNECTOR, PIPE 5x3.5

Note: +

$0.99

$

In Stock, Qty 20+

0

6

Echo V471001211

PIPE, FUEL 3x5x90 BLACK

Note: +

$0.99

$

In Stock, Qty 17

0

7

Echo V490001240

CLIP 6

Note: +

$0.99

$

In Stock, Qty 20+

0

8

Echo A369000480

FILTER, FUEL

Note: +

$6.49

$

In Stock, Qty 20+

0

9

Echo A356000031

VENT ASSY

Note: +

$9.49

$

In Stock, Qty 20+

0

10

Echo V471001221

PIPE, FUEL VENT 3x5x50

Note: +

$1.99

$

Usually ships in 2-4 days

0

11

Echo 13211501462

GROMMET

Note: +

$1.99

$

In Stock, Qty 20+

0

12

Echo V107000210

GASKET, FUEL CAP
(Superseded to V107000150)

Note: +

$4.99

$

In Stock, Qty 14

0

13

Echo P100011640

CAP ASSY, FUEL

Note: Includes Items 14-15

$10.99

$

Usually ships in 2-4 days

0

14

Echo V107000210

GASKET, FUEL CAP
(Superseded to V107000150)

Note: +

$4.99

$

In Stock, Qty 14

0

15

Echo 13105156030

CONNECTOR, CAP L= 100 MM

Note: +

$1.49

$

In Stock, only 1 left!

0

16

Echo V420001430

GUARD, FUEL TANK

$1.99

$

Usually ships in 2-4 days

0

17

Echo A350002551

TANK, FUEL

$35.99

$

In Stock, only 1 left!

0

18

Echo 90060300005

WASHER 5.5x12x0.8

$0.99

$

In Stock, Qty 20+

0

19

Echo 90025305020

SCREW, TAPPING 5x20

$1.99

$

In Stock, Qty 20+

0

20

Echo 90154Y

TUNE-UP KIT - YOUCAN™

$25.99

$

In Stock, Qty 8

0
