PB-260 L - Echo Backpack Blower (SN: 03001001 - 03999999) Exhaust Parts Diagram

Echo PB-260L Backpack Blower: 25.4 cc 2-stroke air-cooled engine (EPA Phase 2), Walbro diaphragm carburetor, flywheel magneto ignition. 375 mm x 410 mm x 460 mm, 6.6 kg weight, 650 ml fuel tank, 300-hour emission durability. Ideal for heavy-duty debris clearing.

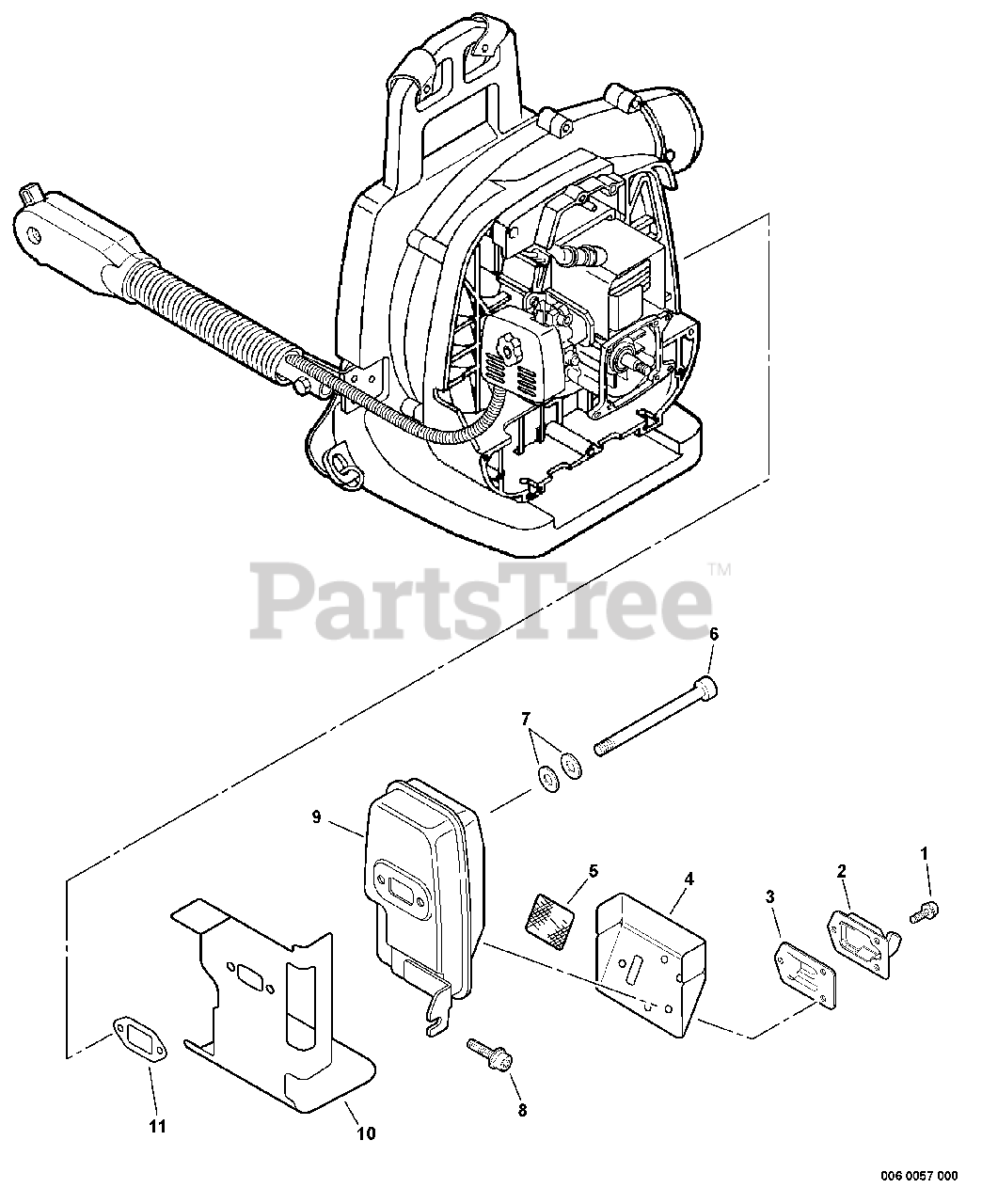

Exhaust Parts Diagram

  • Title

1

Echo 9136704012

SCREW 4×12

Note: PB-260L S/N: 03001001-04999999

$0.99

$

In Stock, Qty 20+

0

2

Echo A313000080

GUIDE, EXHAUST
(Superseded to Discontinued)

Note: PB-260L S/N: 03001001-04999999

$

$

Not available

3

Echo A313000110

GUIDE, EXHAUST

Note: PB-260L S/N: 03001001-04999999

$

$

Not available

4

Echo V104000350

GASKET, EXHAUST
(Superseded to Discontinued)

Note: PB-260L S/N: 03001001-04999999

$

$

Not available

5

Echo 14586240630

SCREEN, SPARK ARRESTER

Note: PB-260L S/N: 03001001-04999999

$2.49

$

In Stock, Qty 20+

0

6

Echo 90010505060

BOLT 5×60

Note: PB-260L S/N: 03001001-04999999

$2.49

$

In Stock, only 3 left!

0

7

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

Note: PB-260L S/N: 03001001-04999999

$0.99

$

In Stock, Qty 20+

0

8

Echo 90016205016

BOLT 5×16

Note: PB-260L S/N: 03001001-04999999

$1.49

$

In Stock, Qty 20+

0

9

Echo A300000090

MUFFLER
(Superseded to Discontinued)

Note: PB-260L S/N: 03001001-04999999

$

$

Not available

10

Echo V104000041

SHIELD, EXHAUST

Note: Included In GASKET KIT

$10.99

$

Usually ships in 2-4 days

0

11

Echo V104000160

GASKET, EXHAUST

Note: Included In GASKET KIT

$2.49

$

In Stock, Qty 20+

0
