PB-260 L - Echo Backpack Blower (SN: 03001001 - 03999999) Hip Mount Throttle Parts Diagram

Echo PB-260L Backpack Blower: 25.4 cc 2-stroke air-cooled engine (EPA Phase 2), Walbro diaphragm carburetor, flywheel magneto ignition. 375 mm x 410 mm x 460 mm, 6.6 kg weight, 650 ml fuel tank, 300-hour emission durability. Ideal for heavy-duty debris clearing.

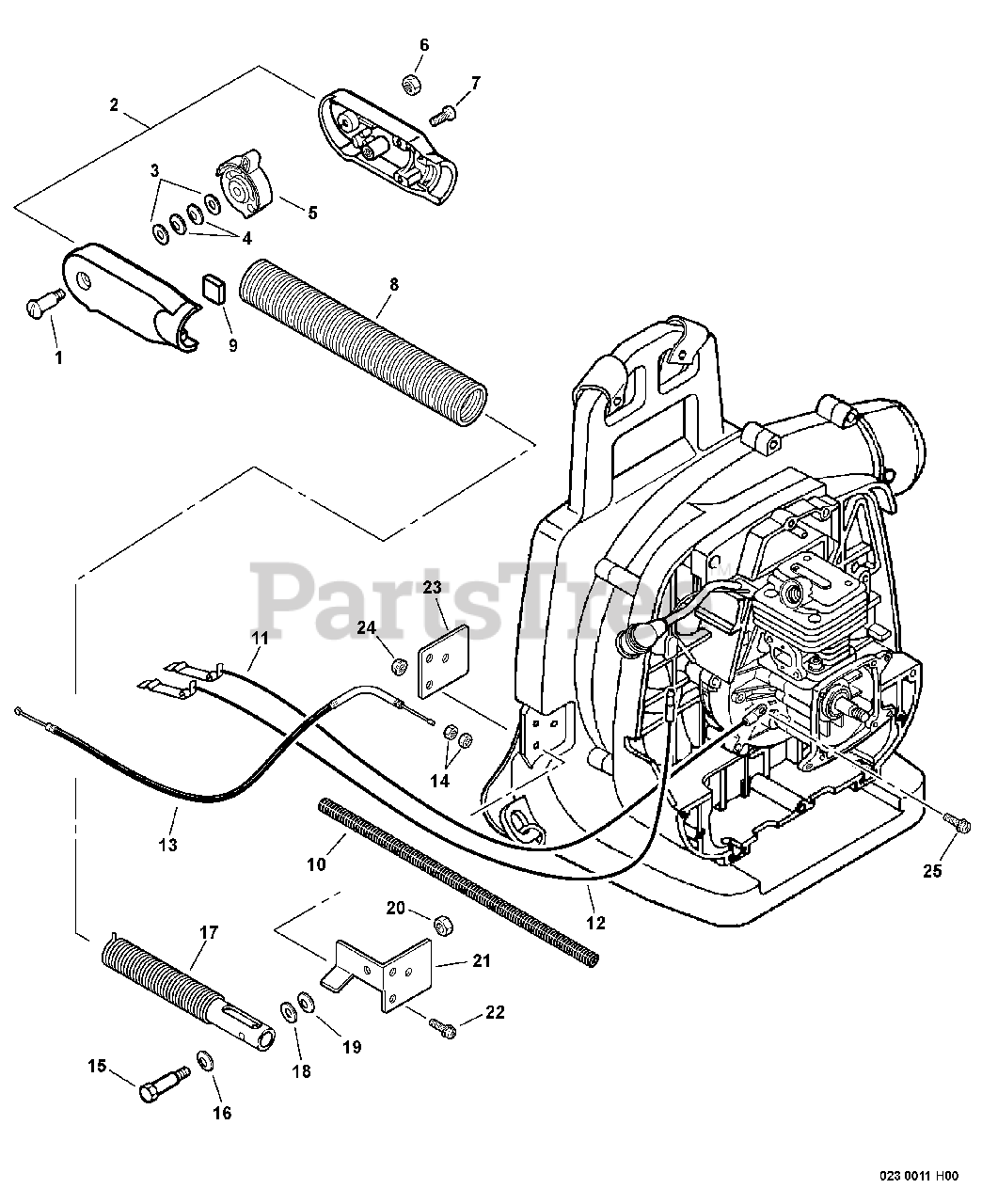

Hip Mount Throttle Parts Diagram

  • Title

1

Echo 60403021060

SCREW 4

$1.99

$

In Stock, only 2 left!

0

2

Echo P021003010

GRIP ASSY, THROTTLE

Note: INCLUDES ITEMS 3-4

$6.99

$

In Stock, only 2 left!

0

3

Echo 69911804560

WASHER 6.5×15.5×0.6

$0.99

$

In Stock, Qty 20+

0

4

Echo 17816021060

WASHER, FRICTION 6.6×14.3

$0.99

$

In Stock, only 2 left!

0

5

Echo C453000021

LEVER, THROTTLE

$3.49

$

In Stock, only 2 left!

0

6

Echo 90056000004

NUT, LOCK 4

$0.99

$

In Stock, Qty 20+

0

7

Echo 88995021060

SCREW 5

$0.99

$

In Stock, Qty 20+

0

8

Echo V475000910

TUBE, OUTER FLEX

$1.49

$

In Stock, Qty 5

0

9

Echo 10429321060

PAD, FOAM

$4.99

$

In Stock, only 1 left!

0

10

Echo 16202321061

TUBE, PROTECTIVE - CORRUGATED

$0.99

$

In Stock, Qty 8

0

11

Echo V485000122

LEAD - GROUND

$3.99

$

Usually ships in 2-4 days

0

12

Echo V485000060

LEAD - IGNITION

$5.99

$

In Stock, only 2 left!

0

13

Echo V430000120

CABLE, THROTTLE

$11.99

$

In Stock, Qty 6

0

14

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 11

0

15

Echo 43261721060

BOLT 6

$1.99

$

In Stock, Qty 10

0

16

Echo 17812921060

WASHER, WAVE

$2.99

$

In Stock, only 4 left!

0

17

Echo V475000920

TUBE, SPRING

$25.99

$

Usually ships in 2-4 days

0

18

Echo 69402921060

WASHER 8

$0.99

$

In Stock, Qty 5

0

19

Echo 70101721060

WASHER - 8
(Superseded to 70101721061)

$0.99

$

In Stock, Qty 7

0

20

Echo 90003010008

NUT, 6

$0.99

$

In Stock, Qty 7

0

21

Echo C625000000

BRACKET, MOUNTING

$5.99

$

In Stock, Qty 6

0

22

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

23

Echo C625000010

PLATE

$1.99

$

In Stock, only 2 left!

0

24

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

25

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

0
