PB-260 L - Echo Backpack Blower (SN: 03001001 - 03999999) Ignition Parts Diagram

Echo PB-260L Backpack Blower: 25.4 cc 2-stroke air-cooled engine (EPA Phase 2), Walbro diaphragm carburetor, flywheel magneto ignition. 375 mm x 410 mm x 460 mm, 6.6 kg weight, 650 ml fuel tank, 300-hour emission durability. Ideal for heavy-duty debris clearing.

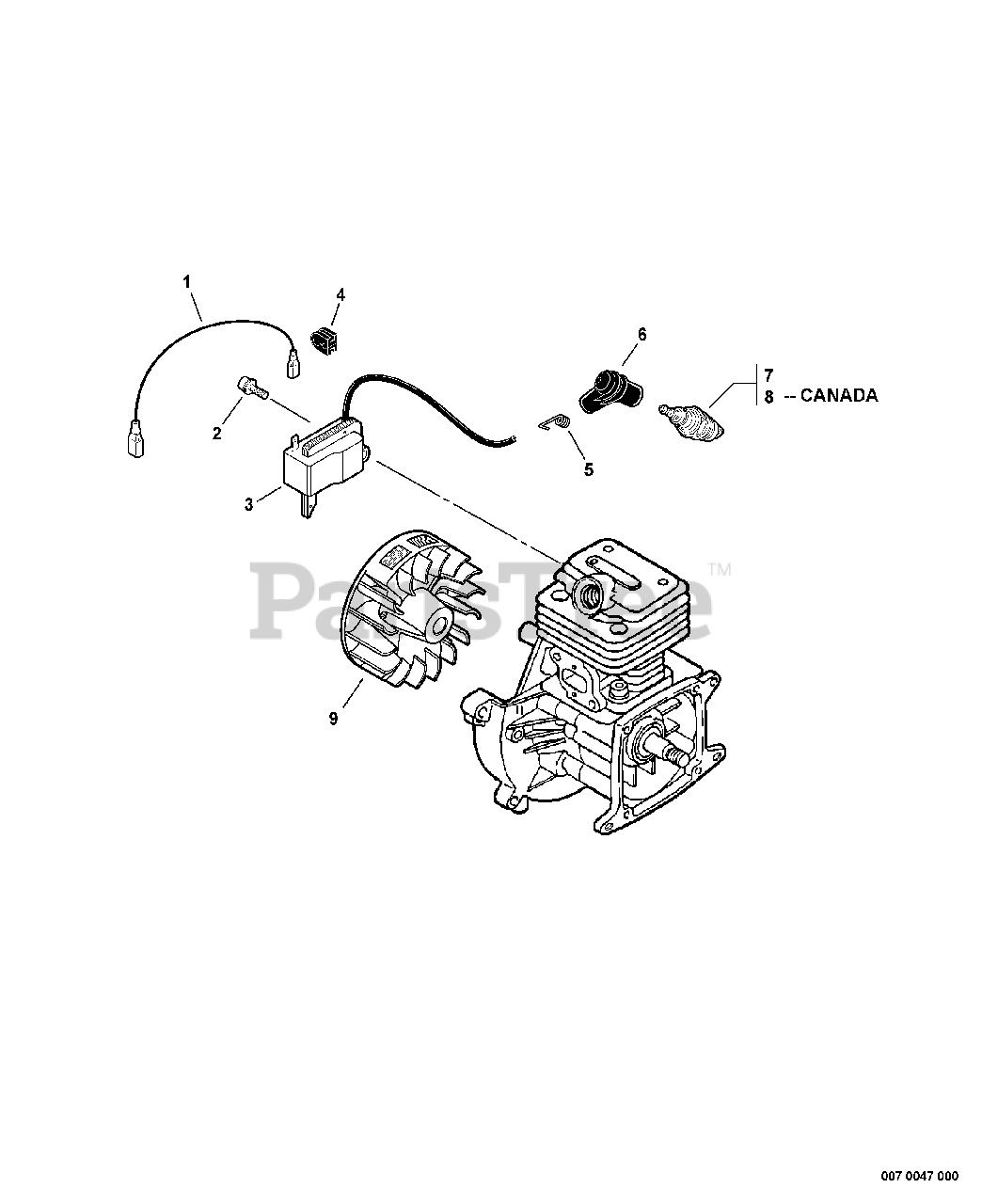

Ignition Parts Diagram

  • Title

1

Echo V485000040

LEAD - IGNITION

$11.99

$

Usually ships in 2-4 days

0

2

Echo 90016205016

BOLT 5×16

$1.49

$

In Stock, Qty 20+

0

3

Echo A411000010

COIL, IGNITION

$83.99

$

In Stock, only 1 left!

0

4

Echo 15611240630

GROMMET

$1.99

$

In Stock, Qty 20+

0

5

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

6

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 19

0

7

Echo 99944500071

SPARK PLUG - BPM-7Y

Note: Included In RePower KIT

$

$

Not available

8

Echo 15901010230

SPARK PLUG - BPMR7A

Note: CANADA MODELS Included In RePower KIT

$3.99

$

In Stock, Qty 20+

0

9

Echo A409000020

FLYWHEEL

$81.99

$

Usually ships in 2-4 days

0
