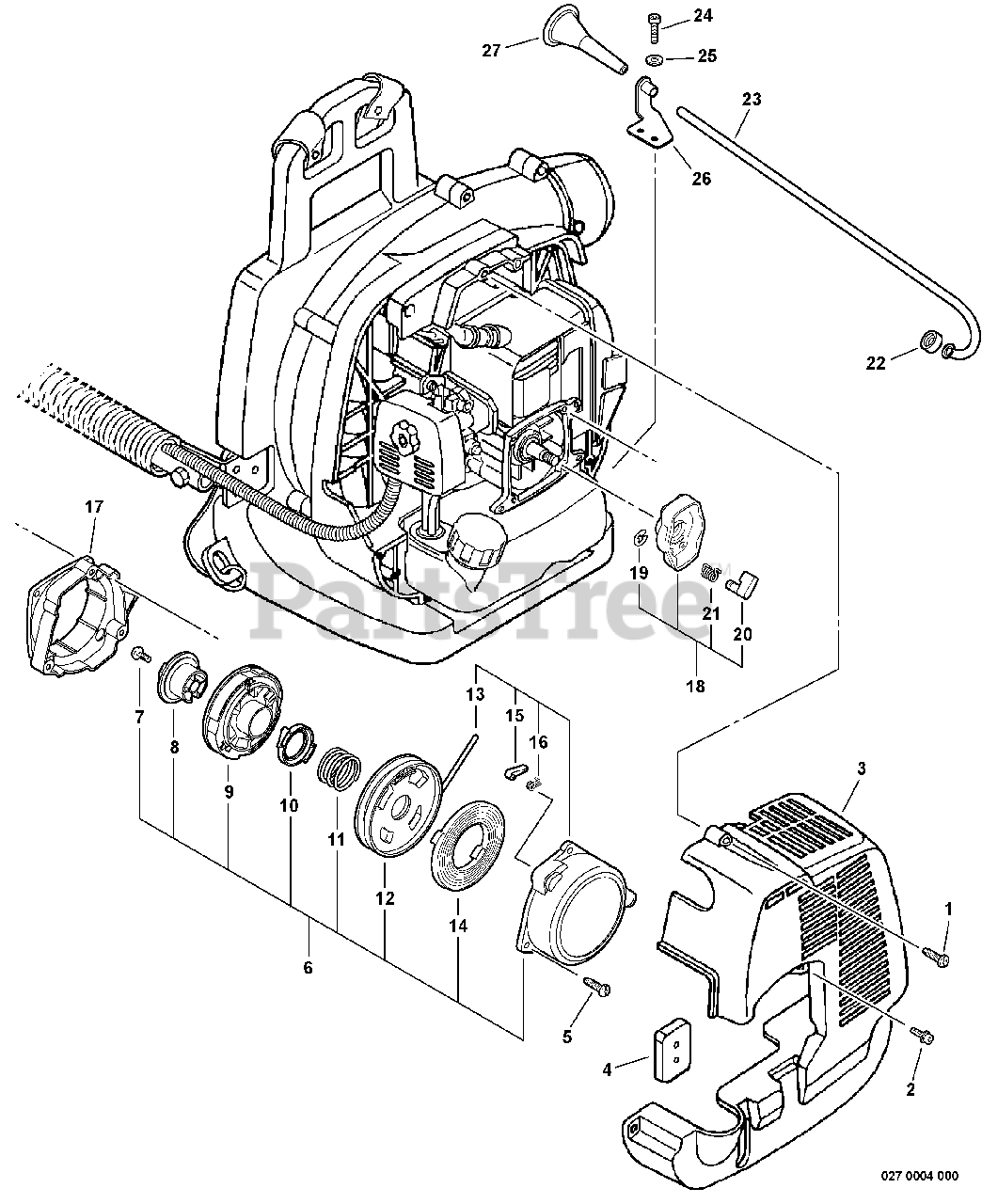

PB-261 i - Echo Backpack Blower (SN: 06001001 - 06999999) Engine Cover, Starter Parts Diagram

Backpack Blower

Engine Cover, Starter Parts Diagram

  • Title

1

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.99

$

In Stock, Qty 20+

0

2

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 7

0

3

Echo A190000011

COVER, ENGINE

$27.99

$

Usually ships in 2-4 days

0

4

Echo V420000390

CUSHION, FUEL TANK - FRONT
(Superseded to Discontinued)

$

$

Not available

5

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.99

$

In Stock, Qty 20+

0

6

Echo A051000300

STARTER ASSY
(Superseded to A051000301)

Note: INCLUDES ITEMS 7-16

$63.99

$

Usually ships in 2-4 days

0

7

Echo P022004630

SCREW

$1.99

$

Usually ships in 2-4 days

0

8

Echo P022004710

PLATE, CAM

$7.99

$

Usually ships in 2-4 days

0

9

Echo P022004700

SPRING ASSY

$72.99

$

Usually ships in 2-4 days

0

10

Echo P022004670

PAWL

$5.49

$

Usually ships in 2-4 days

0

11

Echo P022004660

SPRING, RETURN

$3.99

$

In Stock, only 2 left!

0

12

Echo P022004690

REEL, ROPE

$8.99

$

Usually ships in 2-4 days

0

13

Echo P022005020

ROPE, STARTER - 3X1220

Note: RePower BULK OPTION: 99944440000

$5.99

$

Usually ships in 2-4 days

0

14

Echo P022004680

SPRING, REWIND

$12.99

$

In Stock, only 1 left!

0

15

Echo P022004620

PAWL, STARTER

$3.99

$

Usually ships in 2-4 days

0

16

Echo P022004610

SPRING, PAWL RETURN

$1.99

$

Usually ships in 2-4 days

0

17

Echo V376000310

MOUNT, STARTER

$5.49

$

Usually ships in 2-4 days

0

18

Echo A052000110

STARTER PAWL ASSY

Note: INCLUDES ITEMS 19-21

$8.49

$

Usually ships in 2-4 days

0

19

Echo P022002100

RING, RETAINING - 4

$0.99

$

In Stock, Qty 5

0

20

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 17

0

21

Echo 17723440630

SPRING, RETURN

$3.99

$

In Stock, only 2 left!

0

22

Echo V420000630

CUSHION

$3.99

$

Usually ships in 2-4 days

0

23

Echo A510000020

GUIDE, ROPE

$15.99

$

Usually ships in 2-4 days

0

24

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, only 3 left!

0

25

Echo 61301907350

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

26

Echo V152000900

BRACKET, ROPE GUIDE

$8.99

$

Usually ships in 2-4 days

0

27

Echo A511000020

GRIP, STARTER

$6.49

$

Usually ships in 2-4 days

0
