PB-2620 - Echo Handheld Blower (SN: P60012001001 - P60012999999) Engine Parts Diagram

Handheld Blower

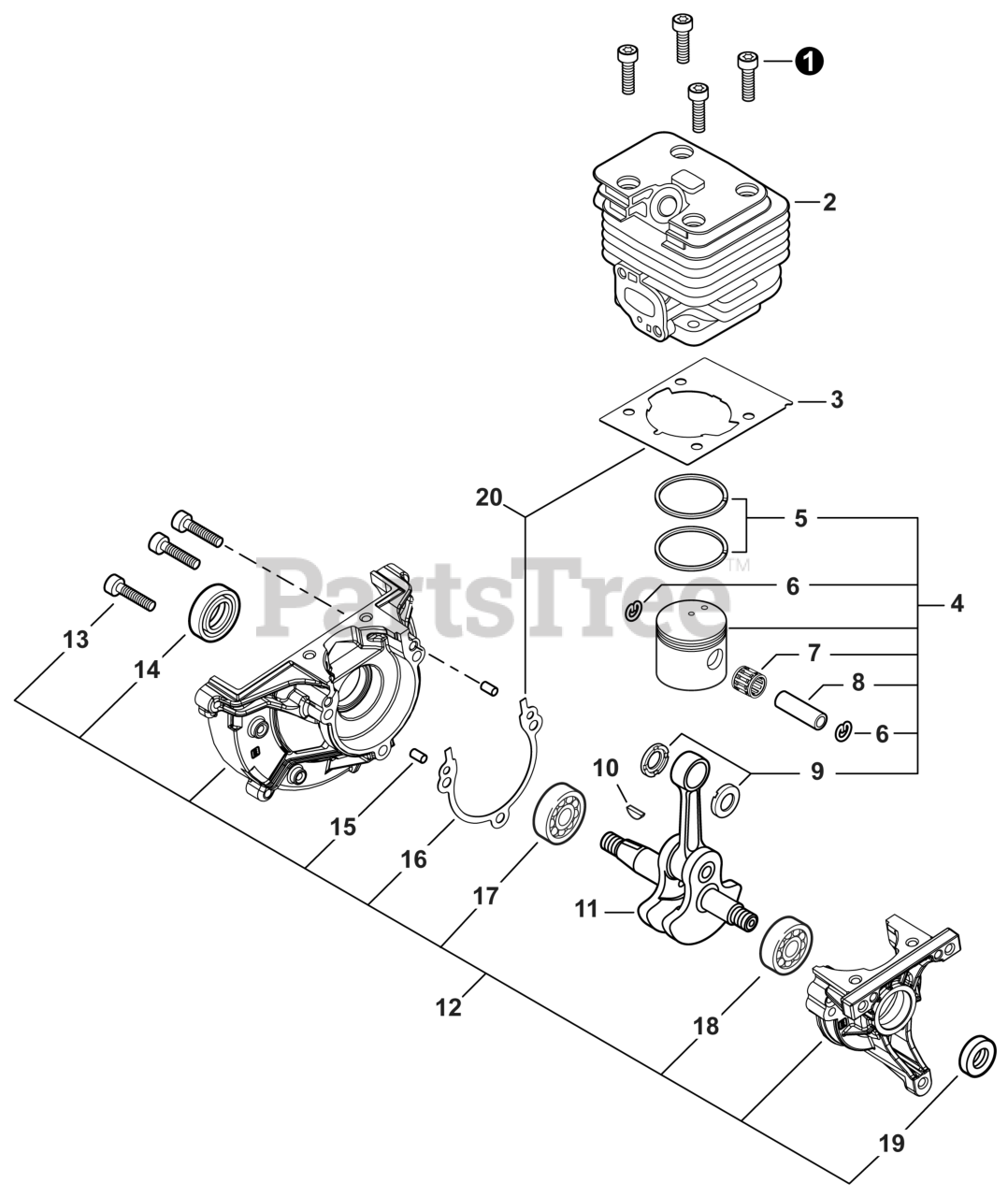

Engine Parts Diagram

  • Title

1

Echo V805000210

BOLT, TORX 5x20

$1.99

$

In Stock, Qty 20+

0

2

Echo A130002370

CYLINDER

$98.99

$

Usually ships in 2-4 days

0

3

Echo V100000860

GASKET, CYLINDER

$2.99

$

In Stock, Qty 7

0

4

Echo P021052780

PISTON KIT

Note: Includes Items 5-9

$71.99

$

Usually ships in 2-4 days

0

5

Echo A101000010

RING, PISTON

$8.99

$

In Stock, only 3 left!

0

6

Echo 10001503931

RING, SNAP

$0.99

$

In Stock, Qty 13

0

7

Echo V554000020

BEARING, NEEDLE 9

$11.99

$

In Stock, only 2 left!

0

8

Echo 10001335430

PIN, PISTON

$6.99

$

Usually ships in 2-4 days

0

9

Echo 10001453630

WASHER, THRUST

$6.49

$

Usually ships in 2-4 days

0

10

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, Qty 14

0

11

Echo A011001650

CRANKSHAFT ASSY

$

$

Not available

12

Echo P021052790

CRANKCASE ASSY

Note: Includes Items 13-19

$189.99

$

Usually ships in 2-4 days

0

13

Echo V805000220

BOLT, TORX 5x25

$1.99

$

In Stock, Qty 5

0

14

Echo 10021242031

SEAL, OIL 12

$7.49

$

In Stock, Qty 17

0

15

Echo 90033040080

PIN, LOCATING 4x8

$1.49

$

In Stock, Qty 16

0

16

Echo V102000300

GASKET, CRANKCASE

$2.49

$

In Stock, only 4 left!

0

17

Echo 9409536001

BEARING, BALL

$6.99

$

Usually ships in 2-4 days

0

18

Echo 9409536000

BEARING, BALL

$6.99

$

Usually ships in 2-4 days

0

19

Echo V503000040

SEAL, OIL 10

$5.99

$

In Stock, only 1 left!

0

20

Echo P021052820

GASKET KIT: ENGINE, INTAKE, EXHAUST

$12.99

$

In Stock, only 3 left!

0
