PB-265 L - Echo Backpack Blower (SN: 09001001 - 09999999) Fuel System Parts Diagram

Backpack blower with a 25.4 cc air-cooled 2-stroke engine (34 mm bore, 28 mm stroke), 6.1 kg, 305 x 410 x 435 mm. Idle 3,000 rpm, peak 6,950 rpm. 0.66 L fuel tank, 22.3 fl oz see-through, 50:1 gasoline/2-stroke oil mix. Equipped with i-30� electric start, rotary carburetor, 375 CFM air volume at nozzle.

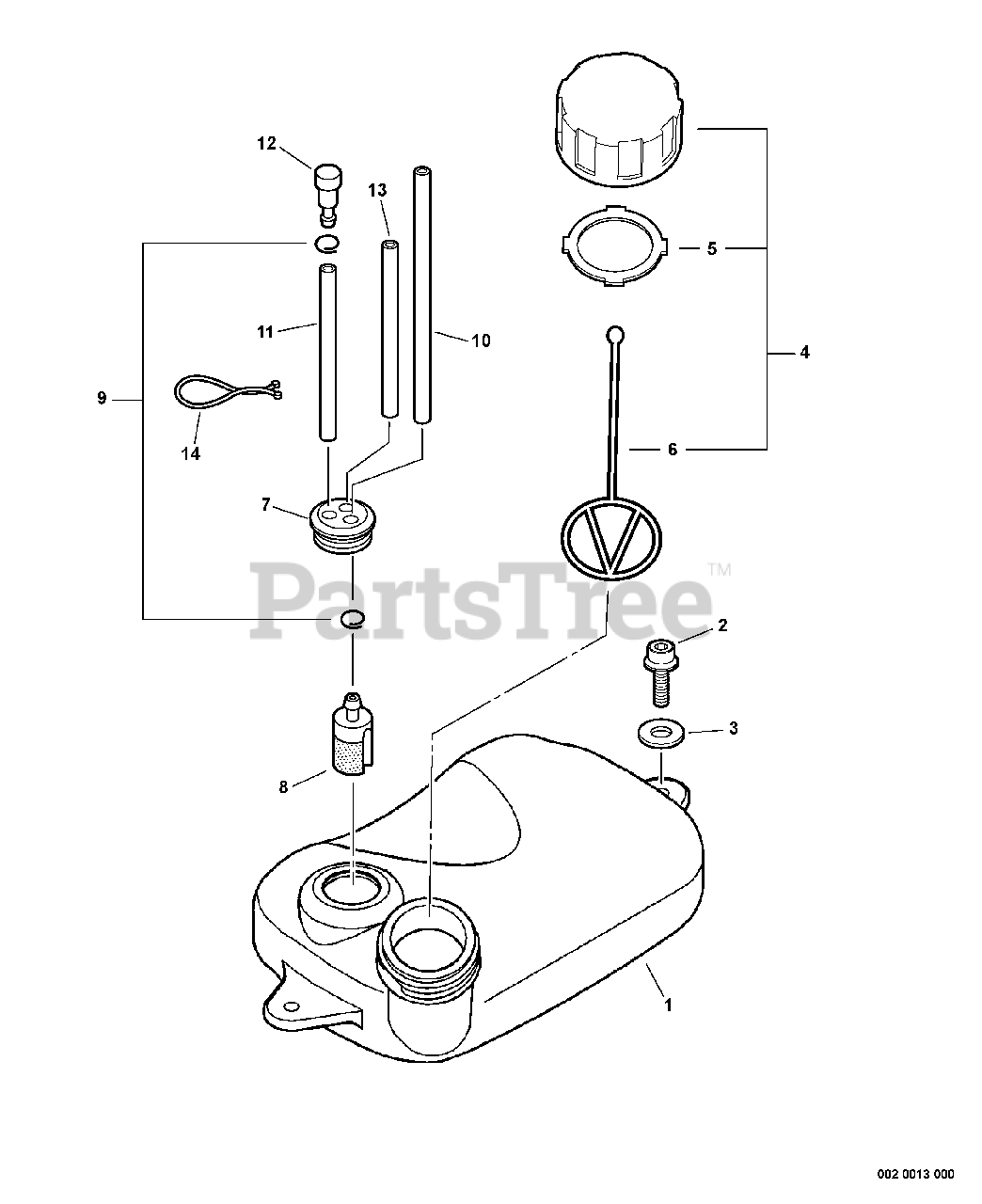

Fuel System Parts Diagram

  • Title

1

Echo A350000470

TANK, FUEL
(Superseded to A350000560)

$17.99

$

Usually ships in 2-4 days

0

2

Echo 9114705020

BOLT 5×20

$0.99

$

In Stock, Qty 20+

0

3

Echo 61301907350

WASHER 5.5×16×2T

$0.99

$

In Stock, Qty 20+

0

4

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

$7.49

$

In Stock, Qty 8

0

5

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

6

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 14

0

7

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 20+

0

8

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

9

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 15

0

10

Echo V471001230

PIPE, FUEL 3×5×210 BLACK
(Superseded to V471001231)

Note: RePower BULK OPTION: 90014

$5.99

$

In Stock, Qty 20+

0

11

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

12

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

13

Echo V471003000

PIPE, FUEL 3×6×125

Note: RePower BULK OPTION: 90017

$2.49

$

In Stock, Qty 12

0

14

Echo 13201305060

CLIP, TUBE

$

$

Not available
