PB-265 L - Echo Backpack Blower (SN: 09001001 - 09999999) Intake Parts Diagram

Backpack blower with a 25.4 cc air-cooled 2-stroke engine (34 mm bore, 28 mm stroke), 6.1 kg, 305 x 410 x 435 mm. Idle 3,000 rpm, peak 6,950 rpm. 0.66 L fuel tank, 22.3 fl oz see-through, 50:1 gasoline/2-stroke oil mix. Equipped with i-30� electric start, rotary carburetor, 375 CFM air volume at nozzle.

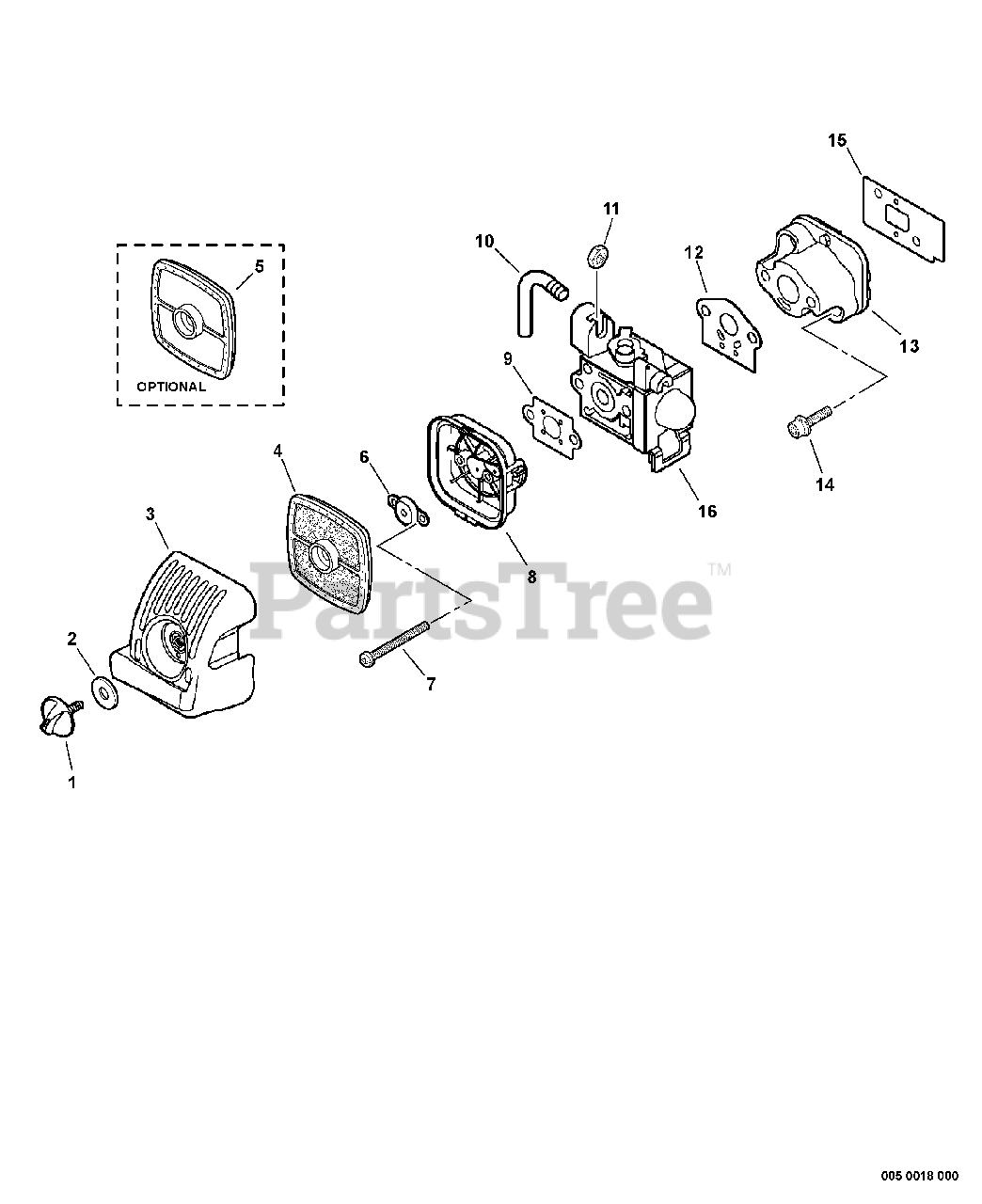

Intake Parts Diagram

  • Title

1

Echo V299000250

THUMBSCREW

$4.99

$

In Stock, Qty 20+

0

2

Echo 13191103460

WASHER 5.5×16×0.8

$0.99

$

In Stock, Qty 20+

0

3

Echo A232000340

COVER, AIR FILTER

$7.49

$

In Stock, Qty 7

0

4

Echo A226000471

FILTER, AIR - DOUBLE LAYER
(Superseded to A226000472)

Note: Included In RePower KIT

$10.99

$

In Stock, Qty 20+

0

5

Echo A226000350

FILTER, AIR - SINGLE LAYER
(Superseded to A226000351)

Note: OPTIONAL

$10.99

$

In Stock, Qty 20+

0

6

Echo A244000070

PLATE, PREVENT

$5.99

$

In Stock, Qty 20+

0

7

Echo 90010505060

BOLT 5×60

$2.49

$

In Stock, only 1 left!

0

8

Echo P021010980

CASE ASSY, AIR FILTER

$11.99

$

In Stock, only 2 left!

0

9

Echo 130016-42031

GASKET, INTAKE

Note: Included In GASKET KIT

$1.49

$

In Stock, Qty 20+

0

10

Echo C482000040

ADJUSTER, THROTTLE CABLE

$6.99

$

Usually ships in 2-4 days

0

11

Echo 9200307000

NUT 3N-7

$0.99

$

In Stock, Qty 7

0

12

Echo 13001013410

GASKET, CARBURETOR

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 20+

0

13

Echo A200000280

INSULATOR, INTAKE

$9.99

$

In Stock, only 2 left!

0

14

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

15

Echo V103000300

GASKET, INTAKE

$1.99

$

In Stock, Qty 5

0

16

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available
