PB-265 L - Echo Backpack Blower (SN: P06313001001 - P06313999999) Fan Case Parts Diagram

Backpack blower with a 25.4 cc air-cooled 2-stroke engine (34 mm bore, 28 mm stroke), 6.1 kg, 305 x 410 x 435 mm. Idle 3,000 rpm, peak 6,950 rpm. 0.66 L fuel tank, 22.3 fl oz see-through, 50:1 gasoline/2-stroke oil mix. Equipped with i-30� electric start, rotary carburetor, 375 CFM air volume at nozzle.

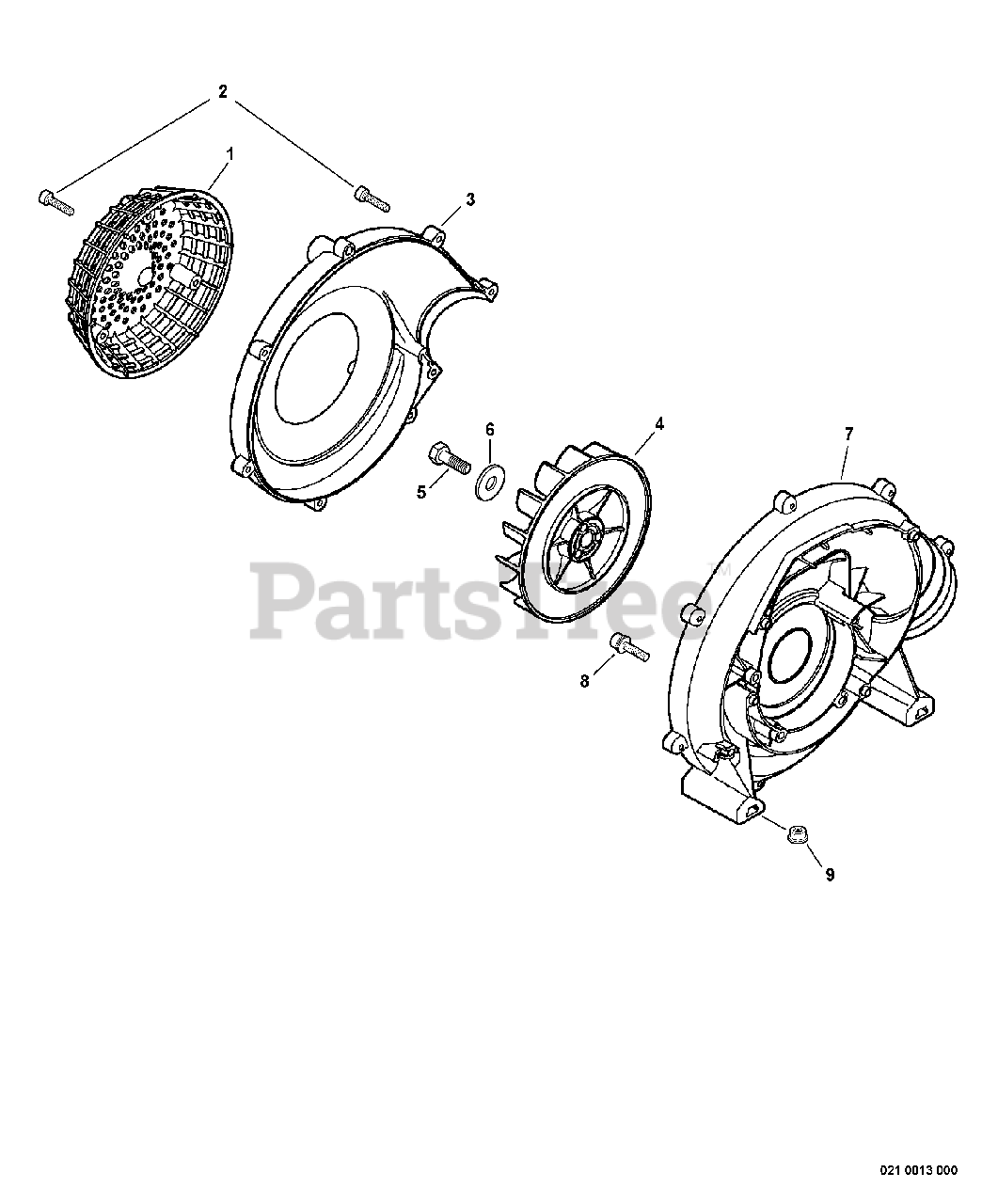

Fan Case Parts Diagram

  • Title

1

Echo E104000071

GUARD, DEBRIS

$9.49

$

Usually ships in 2-4 days

0

2

Echo 9114505020

SCREW TAPPING 5×20

$1.49

$

In Stock, Qty 12

0

3

Echo E103000390

COVER, FAN

$68.99

$

Usually ships in 2-4 days

0

4

Echo E100000061

FAN
(Superseded to E100000062)

$19.99

$

In Stock, only 1 left!

0

5

Echo 90010008014

BOLT 8×14

$0.99

$

In Stock, Qty 20+

0

6

Echo 10014319830

WASHER 8.2×31×0.8

$1.99

$

In Stock, Qty 20+

0

7

Echo E103000380

CASE, FAN

$65.99

$

Usually ships in 2-4 days

0

8

Echo 90016204020

BOLT 4×20

$1.49

$

In Stock, Qty 20+

0

9

Echo V263000070

NUT, FLANGE M5

$0.99

$

In Stock, only 4 left!

0
