PB-265 L - Echo Backpack Blower (SN: P09312001001 - P09312999999) Backpack Frame, Harness Parts Diagram

Backpack blower with a 25.4 cc air-cooled 2-stroke engine (34 mm bore, 28 mm stroke), 6.1 kg, 305 x 410 x 435 mm. Idle 3,000 rpm, peak 6,950 rpm. 0.66 L fuel tank, 22.3 fl oz see-through, 50:1 gasoline/2-stroke oil mix. Equipped with i-30� electric start, rotary carburetor, 375 CFM air volume at nozzle.

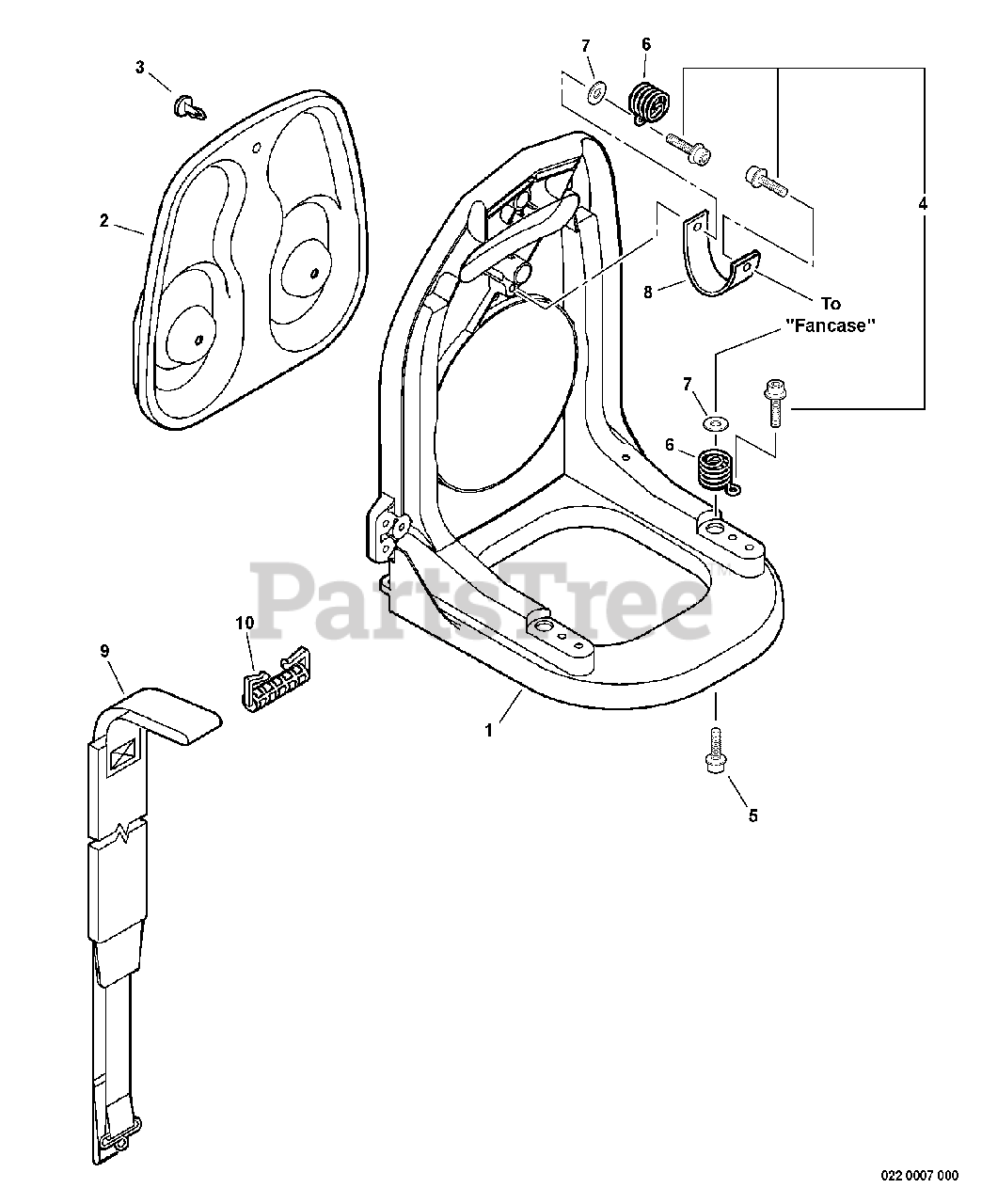

Backpack Frame, Harness Parts Diagram

  • Title

1

Echo C620000290

FRAME, BACKPACK

$60.99

$

Usually ships in 2-4 days

0

2

Echo C630000040

CUSHION, BACKPACK

$22.99

$

Usually ships in 2-4 days

0

3

Echo V491000120

CLIP

$0.99

$

In Stock, Qty 20+

0

4

Echo 9114705020

BOLT 5×20

$0.99

$

In Stock, Qty 20+

0

5

Echo 90010605014

BOLT 5×14

$1.49

$

In Stock, Qty 20+

0

6

Echo V450000551

SPRING, COMPRESSION

$3.99

$

Usually ships in 2-4 days

0

7

Echo 61301907350

WASHER 5.5×16×2T

$0.99

$

In Stock, Qty 20+

0

8

Echo C617000290

STRAP, SAFETY
(Superseded to C617000380)

$1.49

$

In Stock, only 3 left!

0

9

Echo C061000161

HARNESS ASSY
(Superseded to C061000190)

$16.99

$

In Stock, Qty 20+

0

10

Echo V491000040

CLIP, HARNESS

$1.49

$

In Stock, Qty 20+

0
