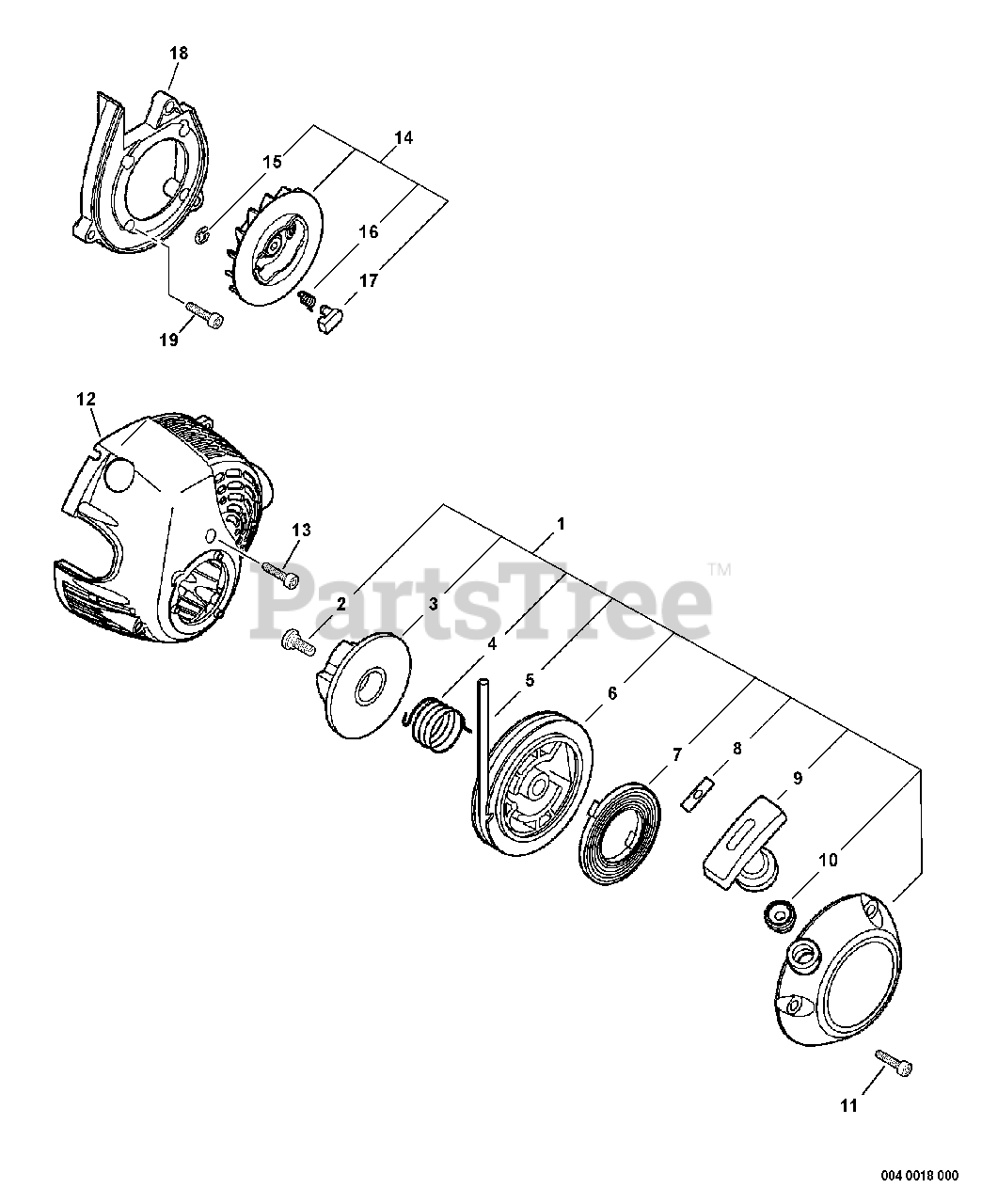

PB-265 L - Echo Backpack Blower (SN: P09312001001 - P09312999999) Starter Parts Diagram

Backpack blower with a 25.4 cc air-cooled 2-stroke engine (34 mm bore, 28 mm stroke), 6.1 kg, 305 x 410 x 435 mm. Idle 3,000 rpm, peak 6,950 rpm. 0.66 L fuel tank, 22.3 fl oz see-through, 50:1 gasoline/2-stroke oil mix. Equipped with i-30� electric start, rotary carburetor, 375 CFM air volume at nozzle.

Starter Parts Diagram

  • Title

1

Echo A050000110

STARTER ASSY, RECOIL
(Superseded to A050000111)

Note: Includes ITEMS 2-10

$74.99

$

In Stock, only 2 left!

0

2

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, only 2 left!

0

3

Echo P022008280

PLATE, CAM (NLA SEE PB 15-06)
(Superseded to Discontinued)

$

$

Not available

4

Echo P022008270

SPRING, TORSION

$9.49

$

In Stock, Qty 19

0

5

Echo P022008260

ROPE, STARTER 3×700

Note: RePower BULK OPTION: 99944440000

$6.49

$

Usually ships in 2-4 days

0

6

Echo P022006830

REEL, ROPE
(Superseded to P050009900)

$18.99

$

In Stock, Qty 20+

0

7

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 6

0

8

Echo 177246-11120

RETAINER, ROPE
(Superseded to P022037670)

$2.49

$

In Stock, only 2 left!

0

9

Echo 17722827030

GRIP, STARTER

$7.49

$

In Stock, Qty 8

0

10

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

11

Echo 9114505016

SCREW TAPPING 5×16

$1.49

$

In Stock, only 3 left!

0

12

Echo A190000581

COVER, ENGINE

$27.99

$

Usually ships in 2-4 days

0

13

Echo 9114505020

SCREW TAPPING 5×20

$1.49

$

In Stock, Qty 12

0

14

Echo A052000200

PAWL ASSY, STARTER
(Superseded to A052000250)

Note: Includes ITEMS 15-17

$17.99

$

In Stock, only 2 left!

0

15

Echo 90070000004

E-RING 4

$0.99

$

In Stock, Qty 20+

0

16

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 20+

0

17

Echo P022006850

PAWL, STARTER

$3.99

$

In Stock, only 4 left!

0

18

Echo V376000830

SPACER

$14.99

$

Usually ships in 2-4 days

0

19

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0
