PB-265 LN - Echo Backpack Blower (SN: P35312001001 - P35312999999) Intake, Air Filter Parts Diagram

Backpack blower with a 25.4 cc 2-stroke engine with rotary carburetor and i-30 start. 22.3 fl oz see-through fuel tank. 375 CFM output at the nozzle, reaching 158 mph.

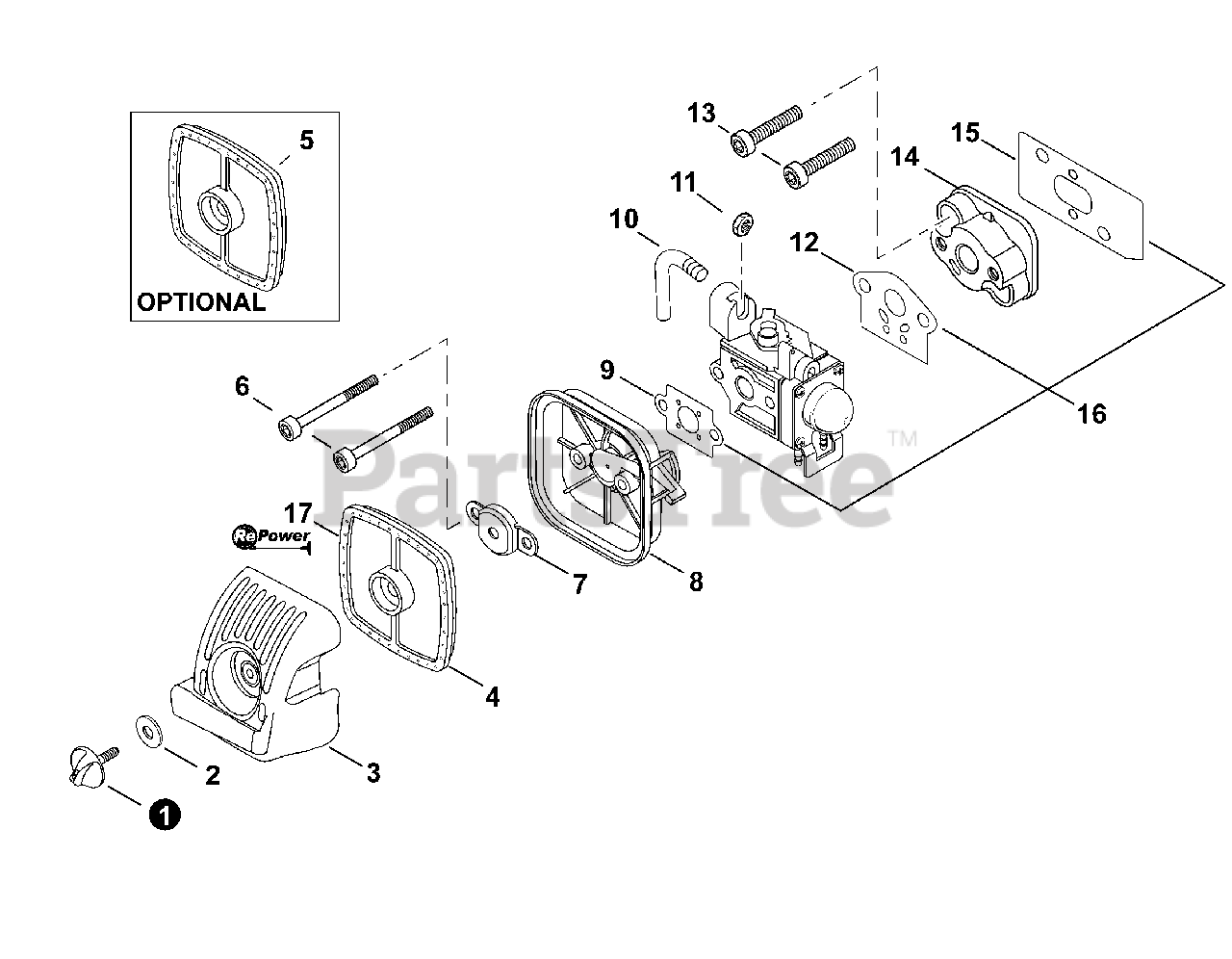

Intake, Air Filter Parts Diagram

  • Title

1

Echo V299000250

THUMBSCREW

$4.99

$

In Stock, Qty 20+

0

2

Echo 13191103460

WASHER 5.5×16×0.8

$0.99

$

In Stock, Qty 20+

0

3

Echo A232000340

COVER, AIR FILTER

$7.49

$

In Stock, only 4 left!

0

4

Echo A226000472

FILTER, AIR - DOUBLE LAYER
(Superseded to A226000473)

Note: Included In RePower KIT

$10.99

$

In Stock, Qty 20+

0

5

Echo A226000350

FILTER, AIR - SINGLE LAYER
(Superseded to A226000351)

Note: OPTIONAL

$10.99

$

In Stock, Qty 20+

0

6

Echo 90010505060

BOLT 5×60

$2.49

$

Usually ships in 2-4 days

0

7

Echo A244000070

PLATE, PREVENT

$5.99

$

In Stock, Qty 20+

0

8

Echo P021010980

CASE ASSY, AIR FILTER

$11.99

$

In Stock, only 1 left!

0

9

Echo 130016-42031

GASKET, INTAKE

Note: Included In GASKET KIT

$1.49

$

In Stock, Qty 20+

0

10

Echo C482000040

ADJUSTER, THROTTLE CABLE

$6.99

$

Usually ships in 2-4 days

0

11

Echo 9200307000

NUT 3N-7

$0.99

$

In Stock, Qty 7

0

12

Echo 13001013410

GASKET, CARBURETOR

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 20+

0

13

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

14

Echo A200000280

INSULATOR, INTAKE

$9.99

$

In Stock, only 2 left!

0

15

Echo V103000300

GASKET, INTAKE

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 5

0

16

Echo P021012380

GASKET KIT

Note: See RePower Maintenance

$34.99

$

Usually ships in 2-4 days

0

17

Echo 90154

TUNE-UP KIT - REPOWER
(Superseded to 90154Y)

Note: See RePower Maintenance

$25.99

$

In Stock, Qty 13

0
