PB-265 LN - Echo Backpack Blower (SN: P35513001001 - P35513999999) Fuel System Parts Diagram

Backpack blower with a 25.4 cc 2-stroke engine with rotary carburetor and i-30 start. 22.3 fl oz see-through fuel tank. 375 CFM output at the nozzle, reaching 158 mph.

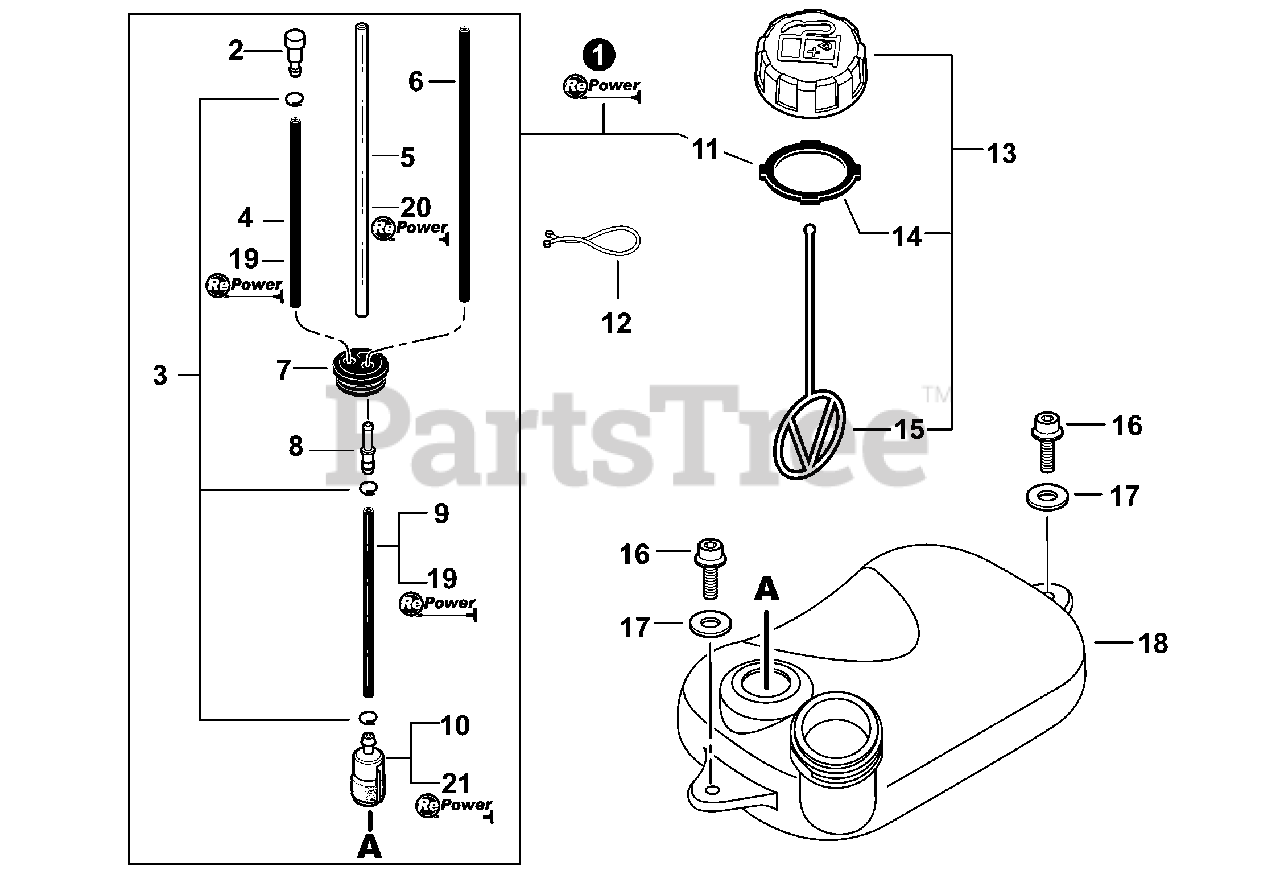

Fuel System Parts Diagram

  • Title

1

Echo 90126

FUEL SYSTEM KIT
(Superseded to Discontinued)

Note: Includes ITEMS 2-11

$

$

Not available

2

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

3

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 9

0

4

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

5

Echo V471003000

PIPE, FUEL 3×6×125

Note: RePower BULK OPTION: 90017

$2.49

$

In Stock, Qty 12

0

6

Echo V471003610

PIPE, FUEL - 3×5×120 - BLACK

Note: RePower BULK OPTION: N/A

$5.99

$

In Stock, only 2 left!

0

7

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 20+

0

8

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

9

Echo V471001210

PIPE, FUEL 3×5×90 BLACK
(Superseded to V471001211)

Note: RePower BULK OPTION: 90014

$0.99

$

In Stock, Qty 20+

0

10

Echo 131205-07320

FILTER, FUEL

Note: Included In RePower KIT

$6.49

$

In Stock, Qty 20+

0

11

Echo V107000150

GASKET, FUEL CAP

Note: Included In RePower KIT

$4.99

$

In Stock, only 4 left!

0

12

Echo 13201305060

CLIP, TUBE

$

$

Not available

13

Echo P021040030

CAP ASSY, FUEL

Note: Includes ITEMS 14-15

$6.99

$

In Stock, Qty 20+

0

14

Echo V107000150

GASKET, FUEL CAP

Note: Included In RePower KIT

$4.99

$

In Stock, only 4 left!

0

15

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 14

0

16

Echo 9114705020

BOLT 5×20

$0.99

$

In Stock, Qty 20+

0

17

Echo 61301907350

WASHER 5.5×16×2T

$0.99

$

In Stock, Qty 20+

0

18

Echo A350000880

TANK, FUEL

$

$

Not available

19

Echo 90014

BULK PIPE - 3×5 MM BLACK (4 PIECES×2 M)

Note: See RePower Maintenance

$50.99

$

In Stock, Qty 5

0

20

Echo 90017

BULK PIPE - 3×6 MM CLEAR (4 PIECES×2 M)

Note: See RePower Maintenance

$69.99

$

In Stock, Qty 13

0

21

Echo 90154

TUNE-UP KIT - REPOWER
(Superseded to 90154Y)

Note: See RePower Maintenance

$25.99

$

In Stock, Qty 16

0
