PB-265 LN - Echo Backpack Blower (SN: P38426001001 - P38426999999) Carburetor Parts Diagram

Backpack Blower

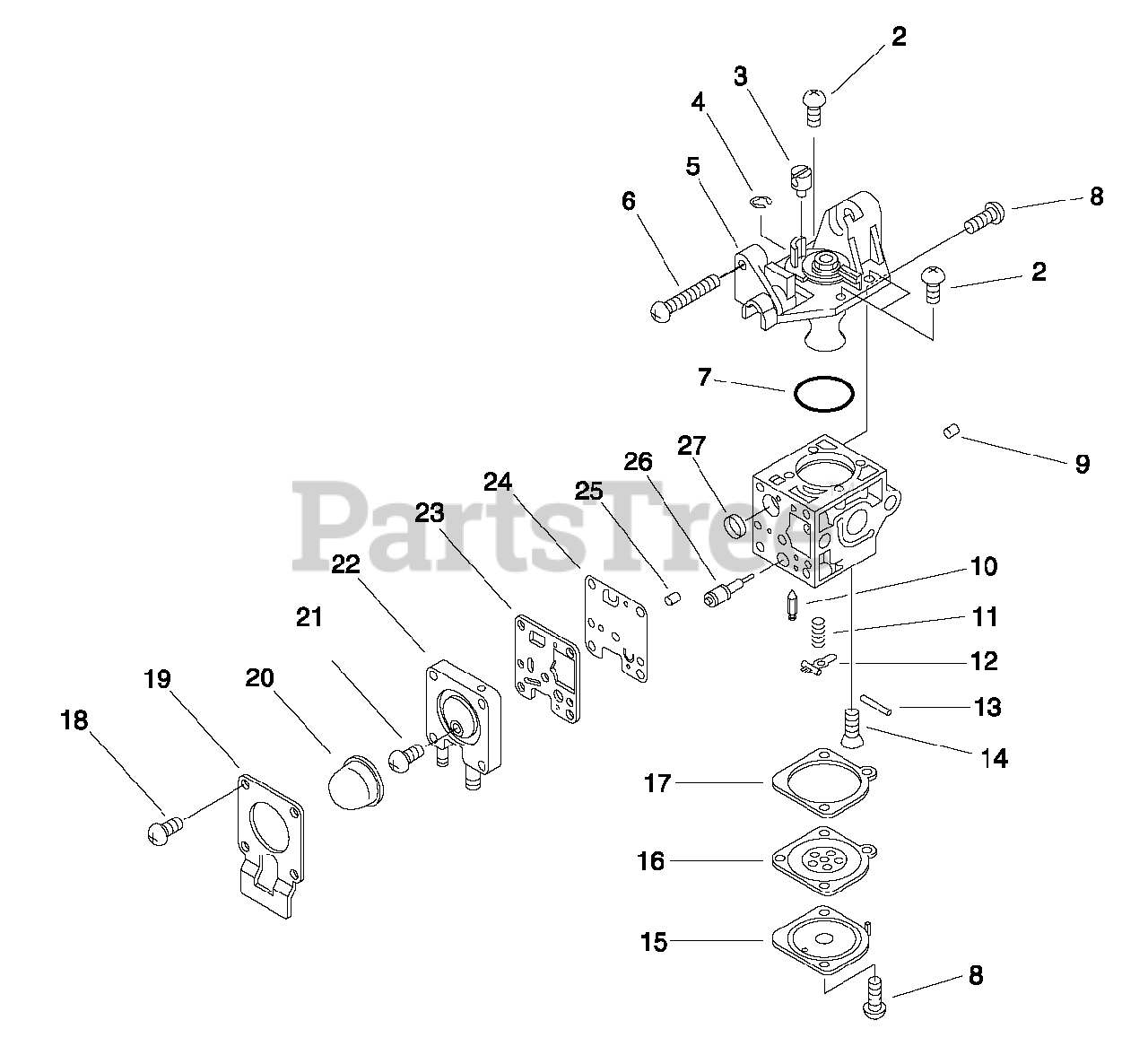

Carburetor Parts Diagram

  • Title

1

Echo A021004050

CARBURETOR
(Superseded to A021005050)

$82.99

$

Usually ships in 2-4 days

0

2

Echo 12534413931

SCREW

$2.49

$

In Stock, Qty 10

0

3

Echo P005002090

SWIVEL

$4.99

$

Usually ships in 2-4 days

0

4

Echo P005000190

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

5

Echo P005002470

ROTOR COVER ASSY

$29.99

$

Usually ships in 2-4 days

0

6

Echo P005000100

SCREW, IDLE ADJUST

$5.49

$

Usually ships in 2-4 days

0

7

Echo P005000280

O-RING

$3.49

$

In Stock, Qty 20+

0

8

Echo 12534452130

SCREW

$0.99

$

In Stock, Qty 8

0

9

Echo P005001000

ROLLER, GUIDE

$1.99

$

In Stock, only 4 left!

0

10

Echo 12533708260

VALVE, INLET NEEDLE

$16.99

$

Usually ships in 2-4 days

0

11

Echo P005000940

SPRING, METERING LEVER

$0.99

$

Usually ships in 2-4 days

0

12

Echo 12532308260

LEVER, METERING

$6.49

$

Usually ships in 2-4 days

0

13

Echo 12533813930

PIN, METERING LEVER

$2.99

$

Usually ships in 2-4 days

0

14

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0

15

Echo 12534252130

COVER, METERING

$3.99

$

Usually ships in 2-4 days

0

16

Echo P005002230

DIAPHRAGM, METERING

$12.99

$

Usually ships in 2-4 days

0

17

Echo P005000200

GASKET, METERING

$2.99

$

In Stock, only 2 left!

0

18

Echo P005001900

SCREW, RETAINER

$0.99

$

In Stock, Qty 20+

0

19

Echo P005000250

RETAINER

$2.49

$

In Stock, Qty 20+

0

20

Echo 12538146730

BULB, PURGE
(Superseded to P005003110)

$6.99

$

In Stock, Qty 20+

0

21

Echo P005000270

SCREW, PURGE BASE

$1.49

$

In Stock, Qty 20+

0

22

Echo P005001890

PRIMER BASE ASSY

$18.99

$

In Stock, Qty 20+

0

23

Echo P005000520

GASKET, PUMP

$2.99

$

Usually ships in 2-4 days

0

24

Echo P005000510

DIAPHRAGM, PUMP

$4.49

$

Usually ships in 2-4 days

0

25

Echo P005001250

CAP, LIMITER

$1.49

$

Usually ships in 2-4 days

0

26

Echo P005001260

NEEDLE - HIGH SPEED

$5.99

$

In Stock, only 3 left!

0

27

Echo P005000010

STRAINER

$0.99

$

Usually ships in 2-4 days

0
