PB-265 LN - Echo Backpack Blower (SN: P38426001001 - P38426999999) Fuel System Parts Diagram

Backpack blower with a 25.4 cc 2-stroke engine with rotary carburetor and i-30 start. 22.3 fl oz see-through fuel tank. 375 CFM output at the nozzle, reaching 158 mph.

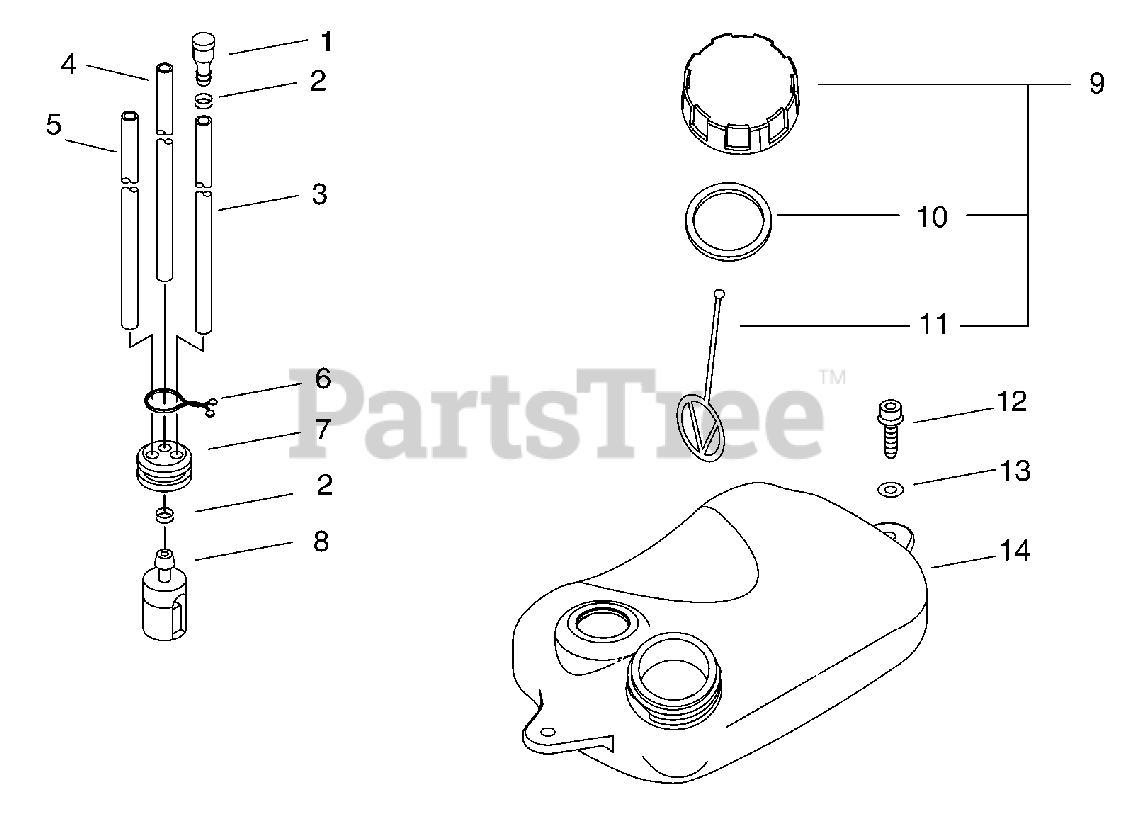

Fuel System Parts Diagram

  • Title

1

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

2

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 9

0

3

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

$2.49

$

In Stock, Qty 20+

0

4

Echo V471001230

PIPE, FUEL 3×5×210 BLACK
(Superseded to V471001231)

$5.99

$

In Stock, Qty 20+

0

5

Echo V471003000

PIPE, FUEL 3×6×125

$2.49

$

In Stock, Qty 12

0

6

Echo 13201305060

CLIP, TUBE

$

$

Not available

7

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 20+

0

8

Echo 13120507321

FILTER, FUEL
(Superseded to A369000480)

$6.49

$

In Stock, Qty 20+

0

9

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

$7.49

$

In Stock, Qty 8

0

10

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

11

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 14

0

12

Echo 9114705020

BOLT 5×20

$0.99

$

In Stock, Qty 20+

0

13

Echo 61301907350

WASHER 5.5×16×2T

$0.99

$

In Stock, Qty 20+

0

14

Echo A350000560

TANK, FUEL

$17.99

$

Usually ships in 2-4 days

0
