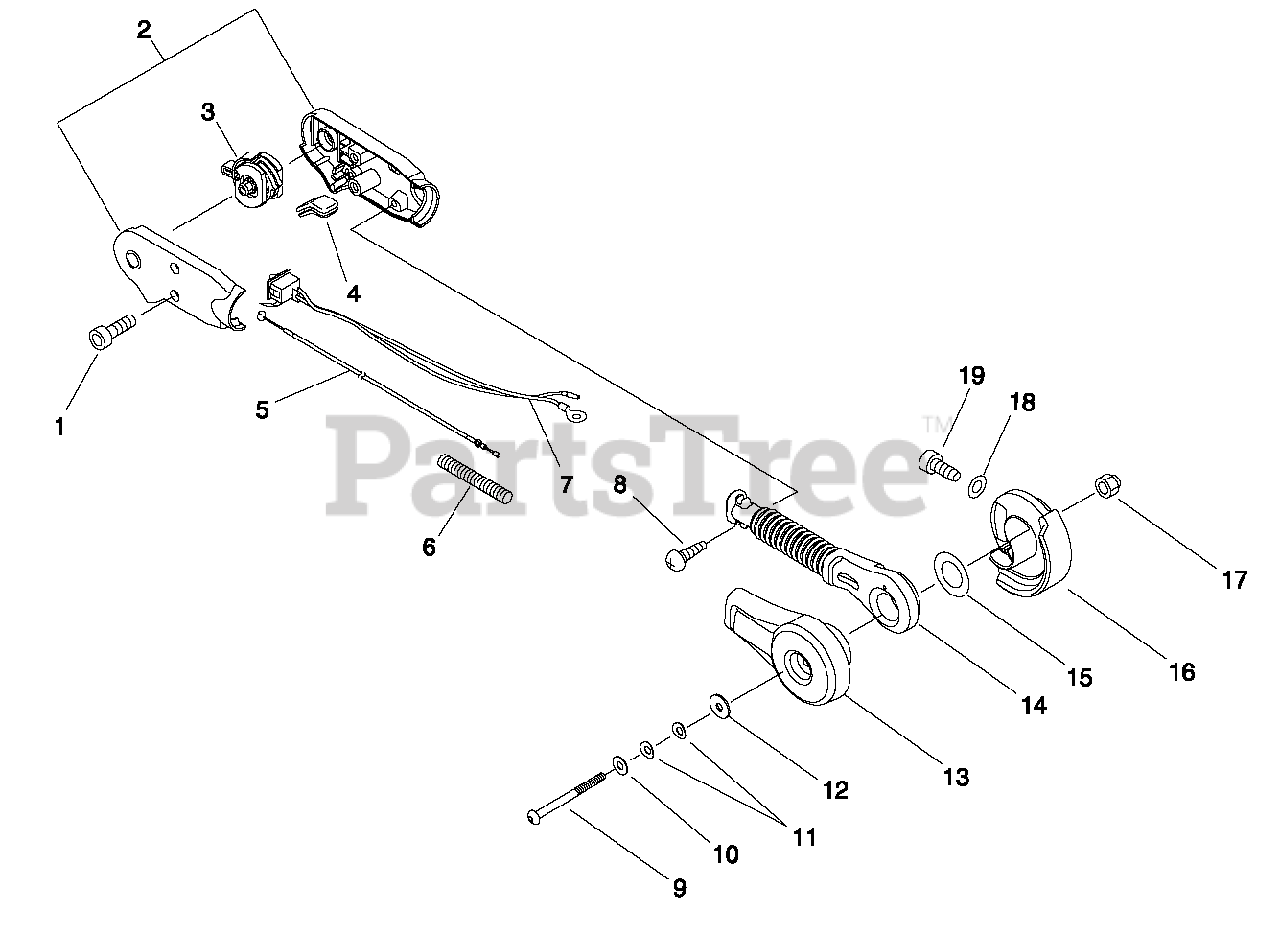

PB-265 LN - Echo Backpack Blower (SN: P38426001001 - P38426999999) Handle, Switch Parts Diagram

Backpack blower with a 25.4 cc 2-stroke engine with rotary carburetor and i-30 start. 22.3 fl oz see-through fuel tank. 375 CFM output at the nozzle, reaching 158 mph.

Handle, Switch Parts Diagram

  • Title

1

Echo 90010505014

BOLT 5×14

$1.49

$

In Stock, Qty 17

0

2

Echo P021014672

GRIP SET, THROTTLE
(Superseded to P021014673)

$6.49

$

In Stock, Qty 10

0

3

Echo C470000161

THROTTLE CONTROL ASSY
(Superseded to C470000162)

$10.99

$

In Stock, Qty 20+

0

4

Echo V144000181

GROMMET

$2.99

$

In Stock, only 2 left!

0

5

Echo V430001760

CABLE, THROTTLE

$13.99

$

In Stock, only 2 left!

0

6

Echo V475003820

TUBE, FLEXIBLE

$5.99

$

Usually ships in 2-4 days

0

7

Echo A045000141

SWITCH, ON-OFF

$

$

Not available

8

Echo 88995021060

SCREW 5

$0.99

$

In Stock, Qty 20+

0

9

Echo V204000150

BOLT 6

$1.99

$

Usually ships in 2-4 days

0

10

Echo 69911804560

WASHER 6.5×15.5×0.6

$0.99

$

In Stock, Qty 20+

0

11

Echo 17816021060

WASHER, FRICTION 6.6×14.3

$0.99

$

In Stock, only 2 left!

0

12

Echo V304000040

WASHER 6.6×20×1.6

$0.99

$

In Stock, Qty 20+

0

13

Echo C472000050

BRACKET, ARM - OUTER
(Superseded to C472000051)

$3.49

$

In Stock, only 2 left!

0

14

Echo C456000050

ARM, THROTTLE CONTROL

$10.99

$

In Stock, Qty 20+

0

15

Echo V336000000

WASHER 45

$2.49

$

In Stock, Qty 20+

0

16

Echo C472000041

BRACKET, ARM - INNER

$3.49

$

Usually ships in 2-4 days

0

17

Echo 90056250006

NUT, LOCK M6

$1.99

$

In Stock, only 3 left!

0

18

Echo 61301907350

WASHER 5.5×16×2T

$0.99

$

In Stock, Qty 20+

0

19

Echo 9114505025

BOLT, TAPPING 5×25

$1.49

$

In Stock, Qty 6

0
