PB-265 LN - Echo Backpack Blower (SN: P38426001001 - P38426999999) Intake, Exhaust Parts Diagram

Backpack blower with a 25.4 cc 2-stroke engine with rotary carburetor and i-30 start. 22.3 fl oz see-through fuel tank. 375 CFM output at the nozzle, reaching 158 mph.

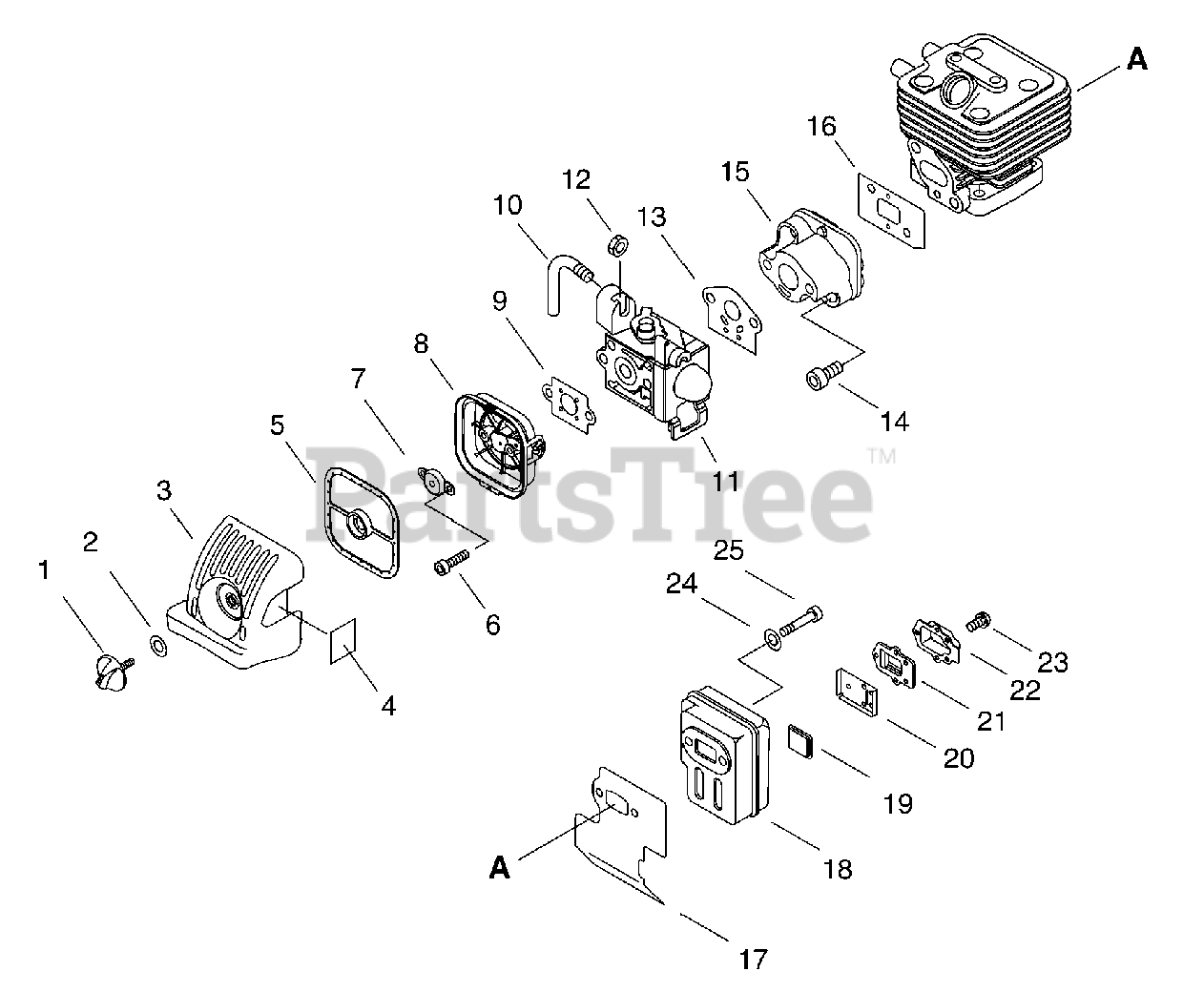

Intake, Exhaust Parts Diagram

  • Title

1

Echo V299000250

THUMBSCREW

$4.99

$

In Stock, Qty 17

0

2

Echo 13191103460

WASHER 5.5×16×0.8

$0.99

$

In Stock, Qty 9

0

3

Echo A232000340

COVER, AIR FILTER

$7.49

$

In Stock, Qty 7

0

4

Echo X506000090

LABEL, CHOKE

$2.99

$

Usually ships in 2-4 days

0

5

Echo A226000472

FILTER, AIR - DOUBLE LAYER
(Superseded to A226000473)

$10.99

$

In Stock, Qty 20+

0

6

Echo 90010505060

BOLT 5×60

$2.49

$

In Stock, only 3 left!

0

7

Echo A244000070

PLATE, PREVENT

$5.99

$

In Stock, Qty 20+

0

8

Echo P021010980

CASE ASSY, AIR FILTER

$11.99

$

In Stock, only 2 left!

0

9

Echo 130016-42031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

10

Echo C482000040

ADJUSTER, THROTTLE CABLE

$6.99

$

Usually ships in 2-4 days

0

11

Echo A021004050

CARBURETOR RB-K117 NO CAP
(Superseded to A021005050)

$99.99

$

Usually ships in 2-4 days

0

12

Echo 9200307000

NUT 3N-7

$0.99

$

In Stock, Qty 7

0

13

Echo 13001013410

GASKET, CARBURETOR

$1.99

$

In Stock, Qty 20+

0

14

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

15

Echo A200000280

INSULATOR, INTAKE

$9.99

$

In Stock, only 2 left!

0

16

Echo V103000300

GASKET, INTAKE

$1.99

$

In Stock, Qty 5

0

17

Echo V104000750

HEAT SHIELD, EXHAUST

$12.99

$

Usually ships in 2-4 days

0

18

Echo A300000810

MUFFLER
(Superseded to A300000811)

$88.99

$

In Stock, Qty 7

0

19

Echo A310000070

SCREEN, SPARK ARRESTER

$2.99

$

In Stock, only 3 left!

0

20

Echo V104000840

GASKET, EXHAUST

$10.99

$

In Stock, only 1 left!

0

21

Echo A313000840

GUIDE, EXHAUST

$3.99

$

In Stock, Qty 7

0

22

Echo A313000821

OUTLET, EXHAUST

$12.99

$

Usually ships in 2-4 days

0

23

Echo 9136704010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

24

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

25

Echo V203000190

BOLT 5

$4.49

$

In Stock, only 1 left!

0
