PB 270 - Shindaiwa Power Broom Gearcase Parts Diagram

Power Broom

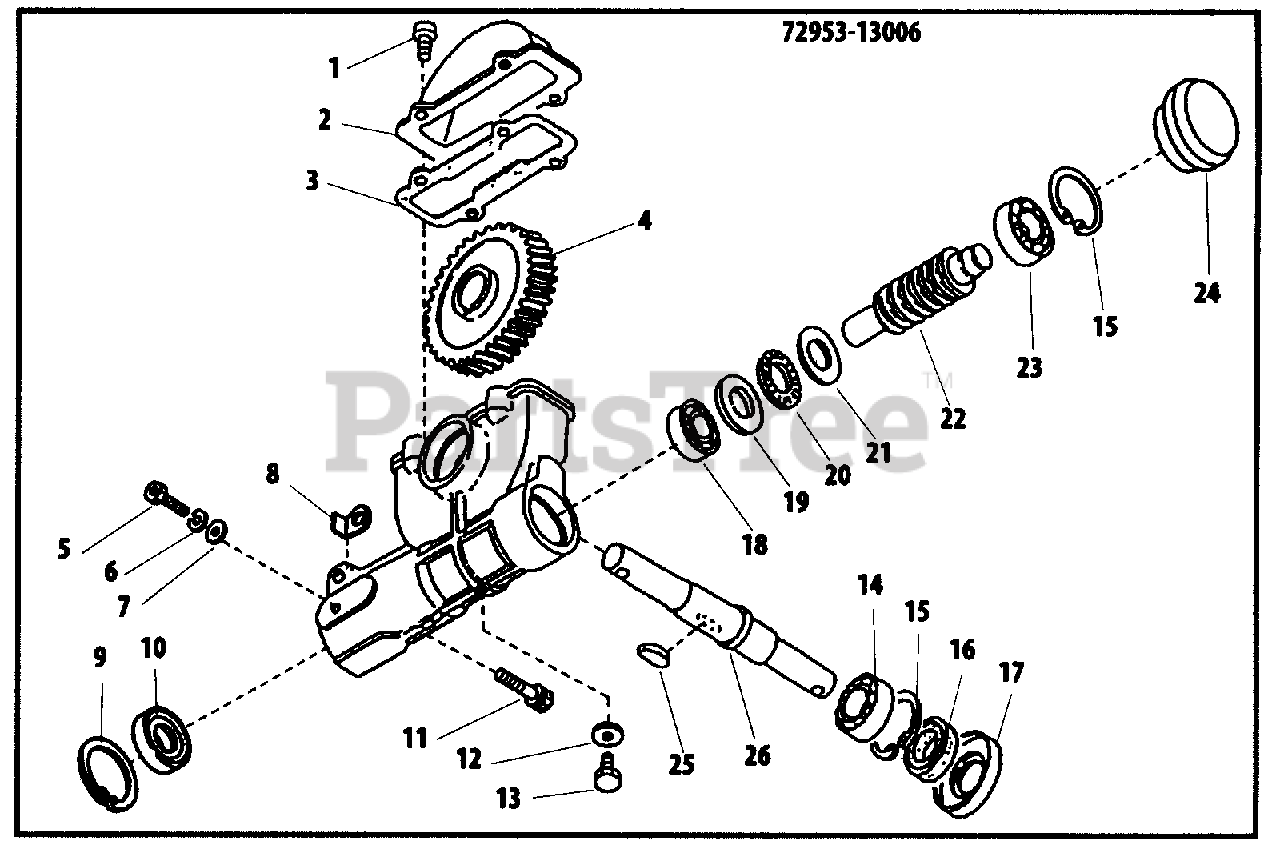

Gearcase Parts Diagram

  • Title

Echo 72953-13006

GEAR CASE ASSY
(Superseded to 33333)

$443.99

$

Usually ships in 2-4 days

0

1

Echo 01213-05148

SCREW - 5X14
(Superseded to Discontinued)

$

$

Not available

2

Echo 72953-13280

COVER, GEAR CASE
(Superseded to C233000060)

$

$

Not available

3

Echo 72053-13290

GASKET
(Superseded to Discontinued)

$

$

Not available

4

Echo 72953-13212

GEAR - WORM
(Superseded to V653000010)

$

$

Not available

5

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

6

Echo 01600-05131

LOCKWASHER - 5
(Superseded to 90060500005)

$0.99

$

In Stock, only 4 left!

0

7

Echo 01610-05080

WASHER - 5
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

8

Echo 72953-13271

SPACER

$1.99

$

Usually ships in 2-4 days

0

9

Echo 02432-22100

RING, RETAINING - 22
(Superseded to 9242422000)

$0.99

$

In Stock, Qty 5

0

10

Echo 72953-13170

SEAL, OIL

$2.99

$

Usually ships in 2-4 days

0

11

Echo 11022-06300

SCREW - 6X30

$1.49

$

Usually ships in 2-4 days

0

12

Echo 72953-13321

WASHER

$1.99

$

Usually ships in 2-4 days

0

13

Echo 72953-13311

BOLT

$1.99

$

Usually ships in 2-4 days

0

14

Echo 02000-06902

BEARING, BALL - 6902

$15.99

$

Usually ships in 2-4 days

0

15

Echo 02432-28120

RING, RETAINING - 28
(Superseded to 9242428000)

$1.49

$

In Stock, Qty 18

0

16

Echo 72953-13250

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

17

Echo 72953-13260

COVER

$

$

Not available

18

Echo 02000-06901

BEARING, BALL - 6901
(Superseded to 90085506901)

$15.99

$

In Stock, only 3 left!

0

19

Echo 72953-13160

WASHER, THRUST

$25.99

$

Usually ships in 2-4 days

0

20

Echo 72953-13150

BEARING, NEEDLE

$13.99

$

In Stock, only 1 left!

0

21

Echo 72953-13140

WASHER, THRUST
(Superseded to Discontinued)

$

$

Not available

22

Echo 72953-13131

BEARING, NEEDLE
(Superseded to Discontinued)

$

$

Not available

23

Echo 02000-06001

BEARING, BALL - 6001
(Superseded to 37074-63310)

$9.49

$

In Stock, Qty 5

0

24

Echo 72953-13121

CAP
(Superseded to Discontinued)

$

$

Not available

25

Echo 72953-13230

KEY

$4.49

$

Usually ships in 2-4 days

0

26

Echo 72953-13221

DRIVESHAFT
(Superseded to Discontinued)

$

$

Not available
