PB-300 E - Echo Backpack Blower (SN: 0000000 - 0049616) Engine, Crankcase Parts Diagram

Backpack blower with 2-cycle air-cooled single-cylinder engine (30.8 cc) featuring a Walbro diaphragm carburetor and CDI ignition (NGK BPM-7A/Champion CJ-7Y). Dimensions 32x41x42 in.

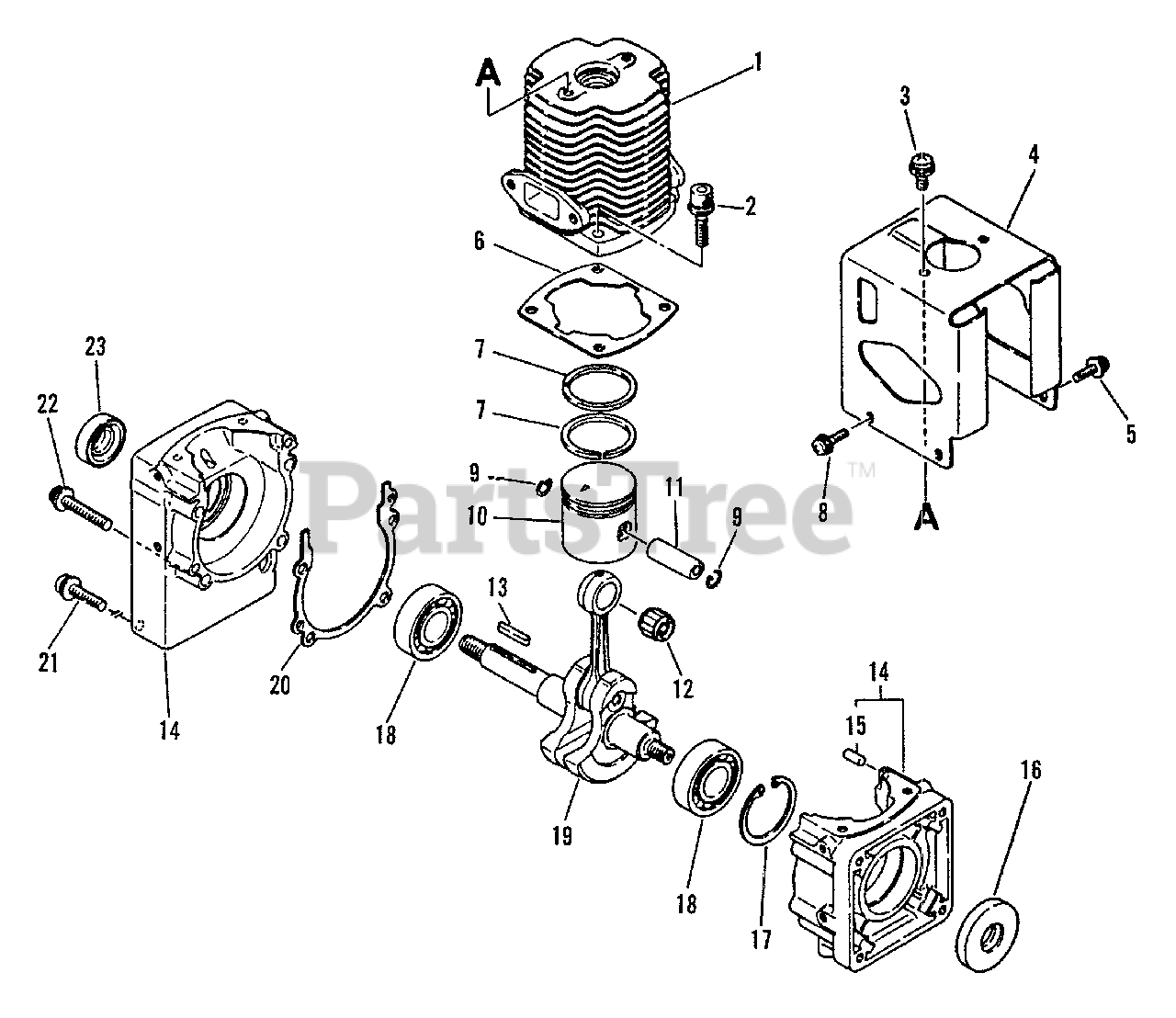

Engine, Crankcase Parts Diagram

  • Title

1

Echo 10101103460

CYLINDER
(Superseded to Discontinued)

$

$

Not available

2

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

3

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

4

Echo 10151403460

COVER, CYLINDER
(Superseded to Discontinued)

$

$

Not available

5

Echo 900242-04014

SCREW 4×14

$0.99

$

In Stock, Qty 5

0

6

Echo 10101003461

GASKET, CYLINDER
(Superseded to Discontinued)

$

$

Not available

7

Echo 10001105731

RING, PISTON

$8.99

$

Usually ships in 2-4 days

0

8

Echo 90024204012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0

9

Echo 100015-00120

RING, SNAP 8

$0.99

$

In Stock, Qty 10

0

10

Echo 10001003460

PISTON
(Superseded to 10000003460)

$91.99

$

Usually ships in 2-4 days

0

11

Echo 10001303460

PIN, PISTON
(Superseded to Discontinued)

$

$

Not available

12

Echo 100012-12330

BEARING, NEEDLE
(Superseded to 10001212331)

$13.99

$

In Stock, only 2 left!

0

13

Echo 90032503020

KEY
(Superseded to Discontinued)

$

$

Not available

14

Echo 10020203460

CRANKCASE KIT
(Superseded to 10020003460)

Note: Includes ITEM 15

$

$

Not available

15

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

16

Echo 100213-02830

SEAL, OIL 18

$7.99

$

In Stock, only 1 left!

0

17

Echo 90070200035

RING, SNAP 35

$2.49

$

In Stock, Qty 9

0

18

Echo 90081036202

BEARING, BALL 6202

$11.99

$

In Stock, only 2 left!

0

19

Echo 10010003460

CRANKSHAFT
(Superseded to Discontinued)

$

$

Not available

20

GASKET, CRANKCASE

Note: Use Gasket Kit P/N 88900003461

$

$

Not available

21

Echo 900242-05020

SCREW 5×20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 7

0

22

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

23

Echo 100213-00310

SEAL, OIL

$6.49

$

In Stock, Qty 9

0

Echo 88900003461

GASKET KIT

$13.99

$

Usually ships in 2-4 days

0
