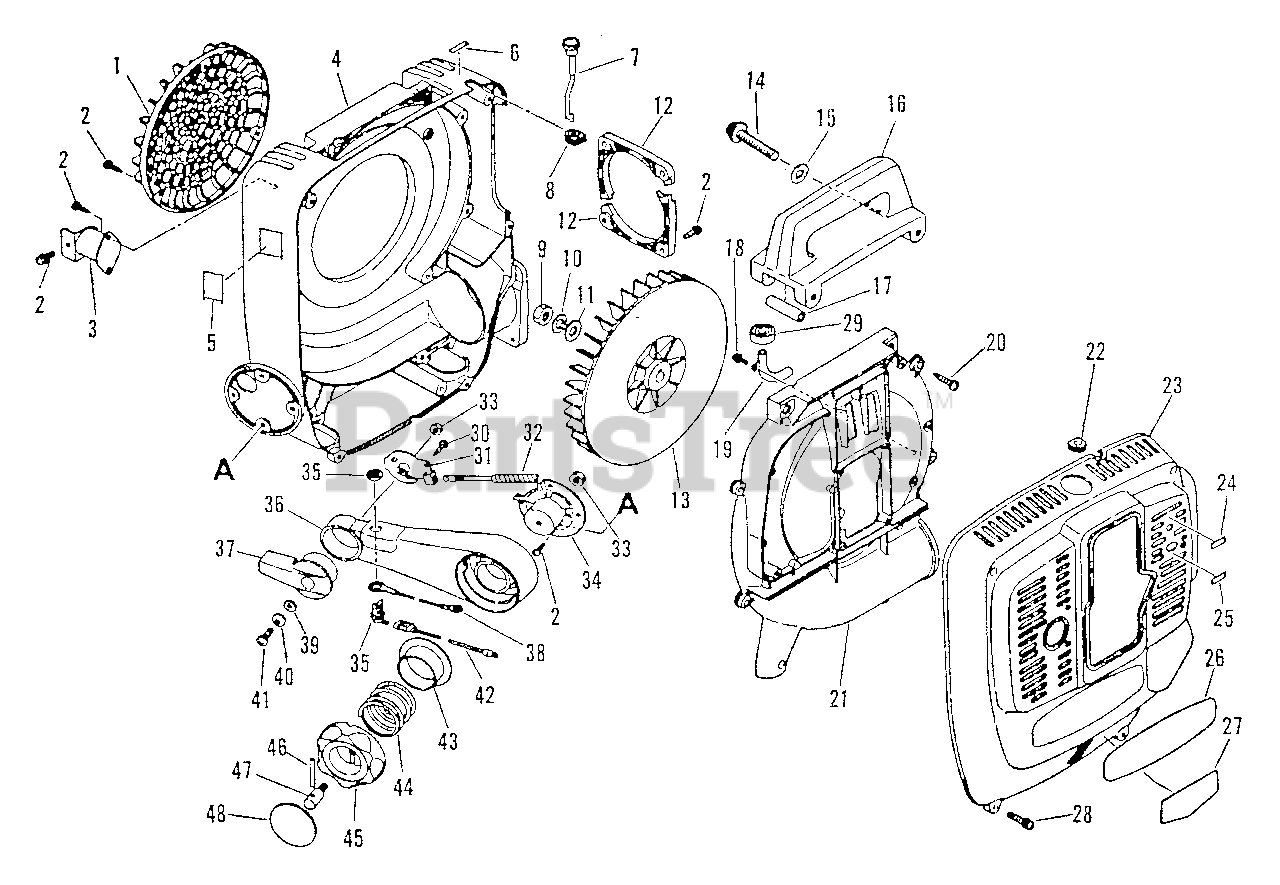

PB-300 E - Echo Backpack Blower (SN: 0000000 - 0049616) Fan, Housings, Handle, Throttle Parts Diagram

Backpack Blower

Fan, Housings, Handle, Throttle Parts Diagram

  • Title

1

Echo 20012400960

SHIELD, DEBRIS

$17.99

$

Usually ships in 2-4 days

0

2

Echo 90025205014

SCREW 5×14

$0.99

$

Usually ships in 2-4 days

0

3

Echo 20090703460

CUSHION

$16.99

$

Usually ships in 2-4 days

0

4

Echo 20010507460

COVER, FAN - INNER
(Superseded to Discontinued)

$

$

Not available

5

Echo 89016003360

LABEL - CAUTION
(Superseded to 89016009461)

$1.99

$

In Stock, Qty 15

0

6

Echo 89012112331

LABEL - CHOKE
(Superseded to Discontinued)

$

$

Not available

7

Echo 17851003460

ROD, CHOKE
(Superseded to 17851003461)

$

$

Not available

8

Echo 17881003460

BUSHING

$1.99

$

Usually ships in 2-4 days

0

9

Echo 900501-00010

NUT 10

$0.99

$

In Stock, only 2 left!

0

10

Echo 900605-00010

WASHER, SPRING 10

$0.99

$

In Stock, Qty 6

0

11

Echo 900600-00010

WASHER 10.5×18×1.6

$0.99

$

In Stock, Qty 9

0

12

Echo 21002207460

RETAINER
(Superseded to Discontinued)

$

$

Not available

13

Echo 20001003460

FAN
(Superseded to Discontinued)

$

$

Not available

14

Echo 90022006070

SCREW 6×70

$

$

Not available

15

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

16

Echo 30580503460

GRIP

$37.99

$

Usually ships in 2-4 days

0

17

Echo 30581403460

CUSHION

$1.99

$

Usually ships in 2-4 days

0

18

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

19

Echo 36301503460

PIPE, INTAKE
(Superseded to Discontinued)

$

$

Not available

20

Echo 900249-05025

SCREW 5×25
(Superseded to Discontinued)

$

$

Not available

21

Echo 20013503460

COVER, FAN - OUTER
(Superseded to Discontinued)

$

$

Not available

22

Echo 15661203460

BUSHING

$1.99

$

Usually ships in 2-4 days

0

23

Echo 10401607460

COVER
(Superseded to Discontinued)

$

$

Not available

24

Echo 89018503460

LABEL, CAUTION - IDLE

$0.99

$

Usually ships in 2-4 days

0

25

Echo 89015803460

LABEL - CAUTION

$0.99

$

Usually ships in 2-4 days

0

26

Echo 89013800760

LABEL - ECHO

$4.49

$

Usually ships in 2-4 days

0

27

Echo 89011503461

LABEL - MODEL

$3.99

$

Usually ships in 2-4 days

0

28

Echo 900242-05020

SCREW 5×20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 7

0

29

Echo 36303003460

SEAL

$2.49

$

Usually ships in 2-4 days

0

30

Echo 90024504010

SCREW 4×10

$0.99

$

In Stock, Qty 7

0

31

Echo 17812303460

BRACKET, THROTTLE
(Superseded to Discontinued)

$

$

Not available

32

Echo 17812703460

PIPE

$2.49

$

In Stock, only 3 left!

0

33

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

34

Echo 17813403460

PLATE
(Superseded to Discontinued)

$

$

Not available

35

Echo 16340003460

SWITCH, ON-OFF

$9.99

$

In Stock, Qty 10

0

36

Echo 17812206160

BRACKET, THROTTLE LEVER

$21.99

$

Usually ships in 2-4 days

0

37

Echo 17801006160

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

38

Echo 16201003460

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

39

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

40

Echo 90060700006

WASHER

$0.99

$

Usually ships in 2-4 days

0

41

Echo 90024206020

SCREW 6×20

$0.99

$

In Stock, Qty 6

0

42

Echo 16202103460

LEAD

$3.49

$

Usually ships in 2-4 days

0

43

Echo 17813503460

SEAT, SPRING
(Superseded to Discontinued)

$

$

Not available

44

Echo 17813603460

SPRING

$7.99

$

Usually ships in 2-4 days

0

45

Echo 17813806160

KNOB
(Superseded to Discontinued)

$

$

Not available

46

Echo 90033040298

PIN

$1.49

$

In Stock, Qty 5

0

47

Echo 17813703460

SHAFT

$5.49

$

Usually ships in 2-4 days

0

48

Echo 89018607560

LABEL
(Superseded to Discontinued)

$

$

Not available
