PB-300 E - Echo Backpack Blower (SN: 0000000 - 0049616) Fuel System, Ignition, Starter Parts Diagram

Backpack blower with 2-cycle air-cooled single-cylinder engine (30.8 cc) featuring a Walbro diaphragm carburetor and CDI ignition (NGK BPM-7A/Champion CJ-7Y). Dimensions 32x41x42 in.

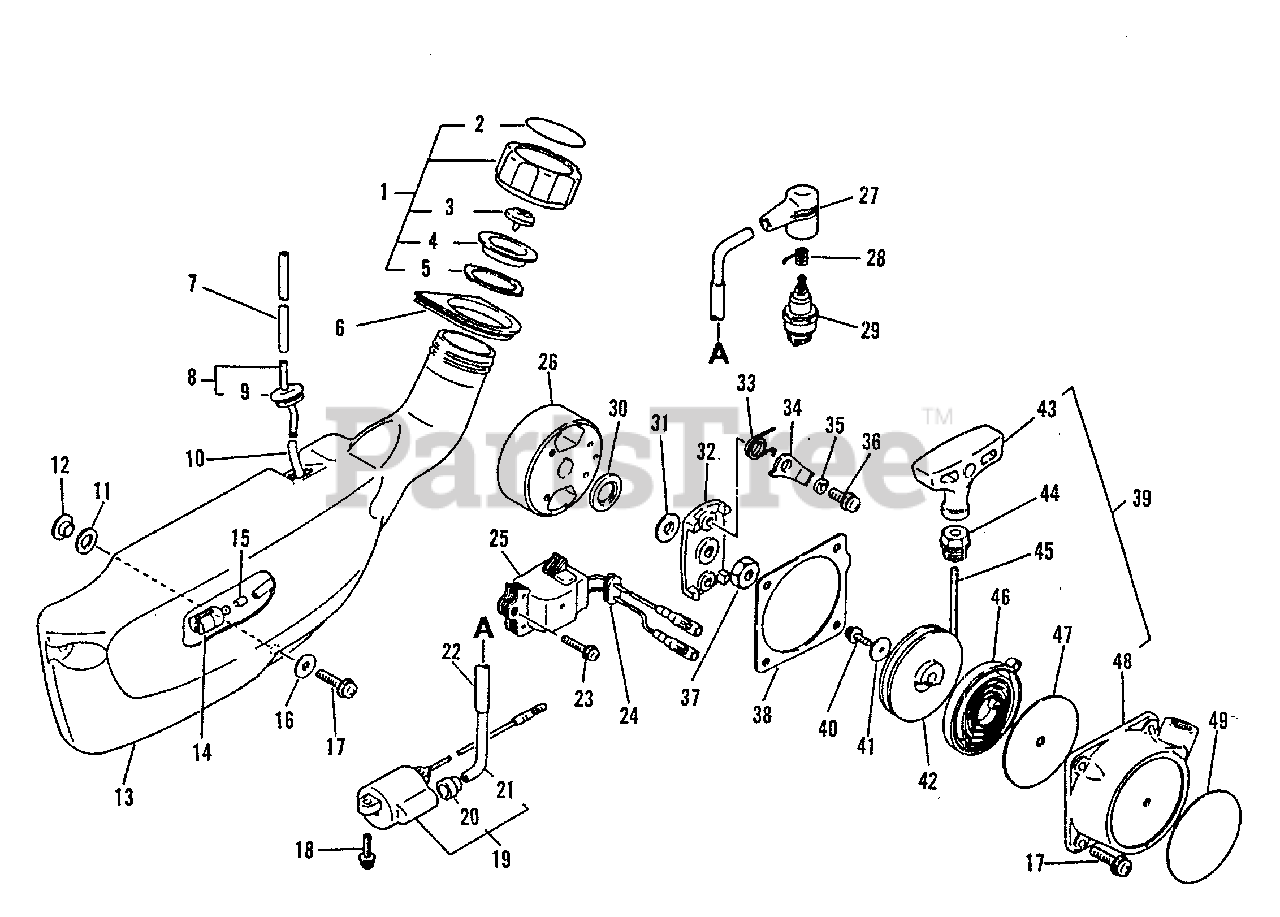

Fuel System, Ignition, Starter Parts Diagram

  • Title

1

Echo 13160007460

CAP ASSY
(Superseded to 13100406610)

Note: INCLUDES ITEMS 2 - 5

$13.99

$

In Stock, Qty 12

0

2

Echo 89014706160

LABEL - FUEL MIX
(Superseded to Discontinued)

$

$

Not available

3

Echo 13131406320

VENT ASSY

$6.49

$

In Stock, Qty 20+

0

4

Echo 13101521330

HOLDER, CHECK VALVE
(Superseded to A358000000)

$

$

Not available

5

Echo 131016-21230

GASKET, FUEL CAP

$3.99

$

In Stock, only 2 left!

0

6

Echo 13103803460

BUSHING
(Superseded to Discontinued)

$

$

Not available

7

Echo 13201203460

PIPE, FUEL

$4.49

$

Usually ships in 2-4 days

0

8

Echo 13200503460

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

9

Echo 13211521330

GROMMET

$2.99

$

In Stock, Qty 16

0

10

Echo 13201204260

PIPE, FUEL
(Superseded to Discontinued)

$

$

Not available

11

Echo 13192502310

CUSHION

$1.99

$

In Stock, Qty 20+

0

12

Echo 13191603460

SPACER

$1.99

$

In Stock, Qty 8

0

13

Echo 13101007460

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

14

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

15

Echo 13200115030

VALVE, CHECK

$4.99

$

In Stock, only 3 left!

0

16

Echo 13191103460

WASHER 5.5×16×0.8

$0.99

$

In Stock, Qty 20+

0

17

Echo 900242-05020

SCREW 5×20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 7

0

18

Echo 900242-04014

SCREW 4×14

$0.99

$

In Stock, Qty 5

0

19

Echo 15660203460

COIL, IGNITION
(Superseded to Discontinued)

Note: INCLUDES ITEMS 20 & 21

$

$

Not available

20

Echo 15663203460

COVER

$2.49

$

Usually ships in 2-4 days

0

21

Echo 15663103460

CORD, HIGH TENSION

$3.49

$

Usually ships in 2-4 days

0

22

Echo 15661103460

PIPE

$

$

Not available

23

Echo 900242-04020

SCREW 4×20

$0.99

$

In Stock, Qty 16

0

24

Echo 15611403360

GROMMET

$1.99

$

In Stock, Qty 5

0

25

Echo 15660103460

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

26

Echo 15680003460

FLYWHEEL
(Superseded to 15680003461)

$

$

Not available

27

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 20+

0

28

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

29

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

30

Echo 10013503460

WASHER

$

$

Not available

31

Echo 90060000008

WASHER 8.5×16×1.2

$0.99

$

Usually ships in 2-4 days

0

32

Echo 17721006530

PAWL CATCHER
(Superseded to Discontinued)

$

$

Not available

33

Echo 17723406530

SPRING

$1.49

$

In Stock, Qty 6

0

34

Echo 17721806530

RATCHET
(Superseded to Discontinued)

$

$

Not available

35

Echo 17724704630

SPACER 5.2×8×2.1

$2.49

$

In Stock, only 2 left!

0

36

Echo 90024205040

SCREW 5×40

$0.99

$

In Stock, Qty 14

0

37

Echo 90051000008

NUT

$1.49

$

Usually ships in 2-4 days

0

38

Echo 10061503461

GASKET, STARTER
(Superseded to 10061504211)

$1.99

$

Usually ships in 2-4 days

0

39

Echo 17720007460

STARTER ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 40 - 48

$

$

Not available

40

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

41

Echo 17721404630

WASHER 4.1×15.5×1T

$0.99

$

In Stock, Qty 5

0

42

Echo 17721515133

REEL, ROPE

$

$

Not available

43

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 15

0

44

Echo 17722705020

GUIDE, ROPE

$4.99

$

In Stock, only 3 left!

0

45

Echo 17722606530

ROPE, STARTER 3.0×850

Note: RePower BULK OPTION: 99944445000

$7.49

$

In Stock, Qty 14

0

46

Echo 17722006530

SPRING, RECOIL

$16.99

$

In Stock, Qty 11

0

47

Echo 17722116530

PLATE

$

$

Not available

48

Echo 17720907460

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

49

Echo 89011217832

LABEL - ECHO
(Superseded to 89011849330)

$7.49

$

In Stock, Qty 7

0
