PB-300 E - Echo Backpack Blower (SN: 0000000 - 0049616) Intake, Exhaust, Air Cleaner Parts Diagram

Backpack blower with 2-cycle air-cooled single-cylinder engine (30.8 cc) featuring a Walbro diaphragm carburetor and CDI ignition (NGK BPM-7A/Champion CJ-7Y). Dimensions 32x41x42 in.

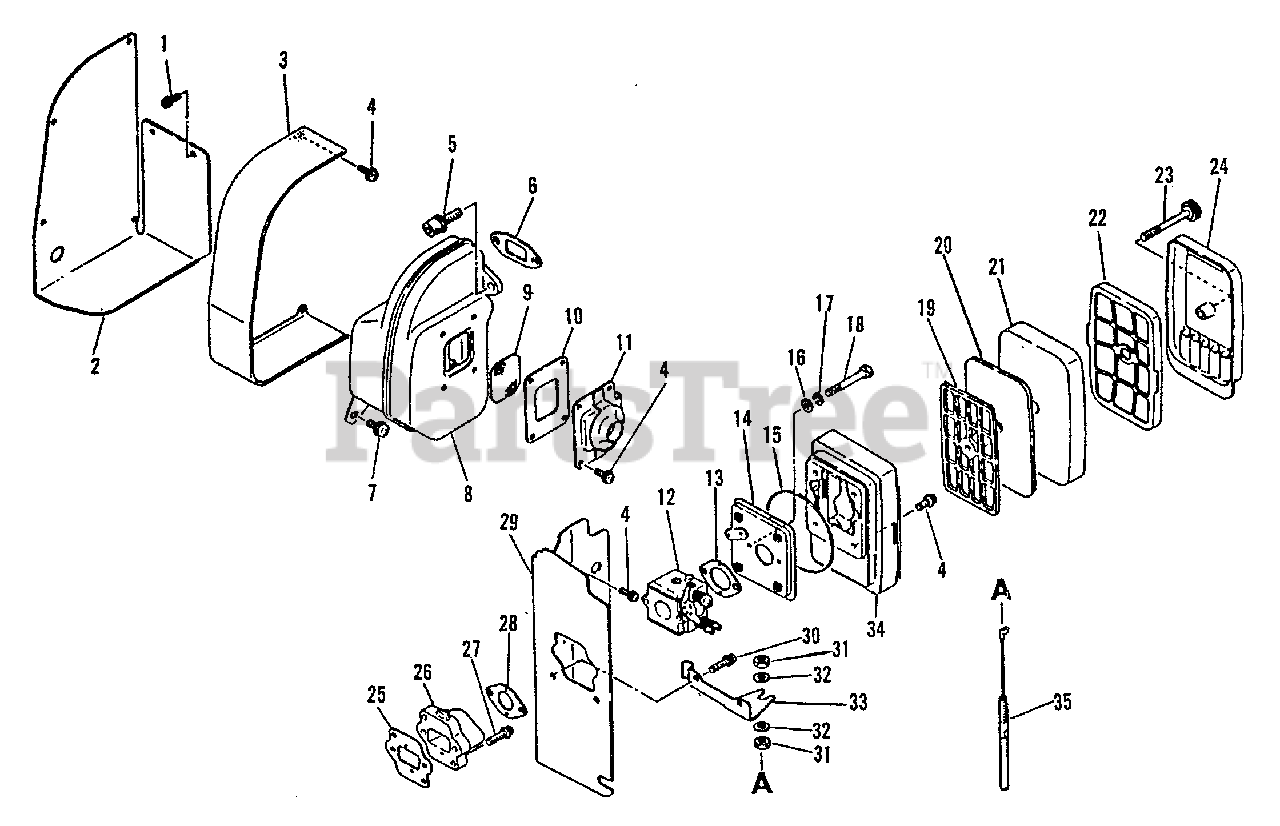

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo 900242-04014

SCREW 4×14

$0.99

$

In Stock, Qty 5

0

2

Echo 10027003461

INSULATOR
(Superseded to Discontinued)

$

$

Not available

3

Echo 14563103460

COVER, MUFFLER

$14.99

$

Usually ships in 2-4 days

0

4

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

5

Echo 90016206022

SCREW - 6×20
(Superseded to 90010506022)

$

$

Not available

6

Echo 14551003461

GASKET, MUFFLER

$3.99

$

Usually ships in 2-4 days

0

7

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

8

Echo 14580503460

MUFFLER

Note: INCLUDES ITEMS 4, 6, 9 - 11

$99.99

$

Usually ships in 2-4 days

0

9

Echo 14586203460

SCREEN, SPARK ARRESTER

$2.49

$

Usually ships in 2-4 days

0

10

Echo 14586603461

GASKET, MUFFLER

$2.49

$

Usually ships in 2-4 days

0

11

Echo 14587603460

GUIDE, EXHAUST

$6.99

$

Usually ships in 2-4 days

0

12

Echo 12300003460

CARBURETOR

$

$

Not available

13

Echo 13001603730

GASKET, INTAKE
(Superseded to 13001603731)

$0.99

$

In Stock, Qty 20+

0

14

Echo 13040503460

BRACKET
(Superseded to Discontinued)

$

$

Not available

15

Echo 13032010750

GASKET
(Superseded to Discontinued)

$

$

Not available

16

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

17

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

18

Echo 13002100761

BOLT
(Superseded to 90022005050)

$0.99

$

Usually ships in 2-4 days

0

19

Echo 13031903460

RETAINER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

20

Echo 13031703460

FILTER, AIR

$6.49

$

In Stock, only 2 left!

0

21

Echo 13031003460

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

22

Echo 13031103460

HOLDER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

23

Echo 13040607460

THUMBSCREW
(Superseded to Discontinued)

$

$

Not available

24

Echo 13031307460

COVER, AIR FILTER

$5.99

$

Usually ships in 2-4 days

0

25

Echo 13001003461

GASKET, CARBURETOR

$1.49

$

In Stock, only 4 left!

0

26

Echo 13000703460

INSULATOR, INTAKE
(Superseded to 13000703461)

$12.99

$

In Stock, only 2 left!

0

27

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

28

Echo 13001606433

GASKET, INTAKE
(Superseded to 13001606434)

$0.99

$

In Stock, Qty 20+

0

29

Echo 12902903461

PLATE

$11.99

$

Usually ships in 2-4 days

0

30

Echo 900242-05020

SCREW 5×20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 7

0

31

Echo 900602-00006

WASHER 6

$0.99

$

In Stock, Qty 18

0

32

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 11

0

33

Echo 17811107560

CLIP
(Superseded to Discontinued)

$

$

Not available

34

Echo 13030707460

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

35

Echo 17800103460

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available
