PB-300 E - Echo Backpack Blower (SN: 0049617 - 9999999) Backpack Frame, Blower Tubes, Strap, Tools Parts Diagram

Backpack blower with 2-cycle air-cooled single-cylinder engine (30.8 cc) featuring a Walbro diaphragm carburetor and CDI ignition (NGK BPM-7A/Champion CJ-7Y). Dimensions 32x41x42 in.

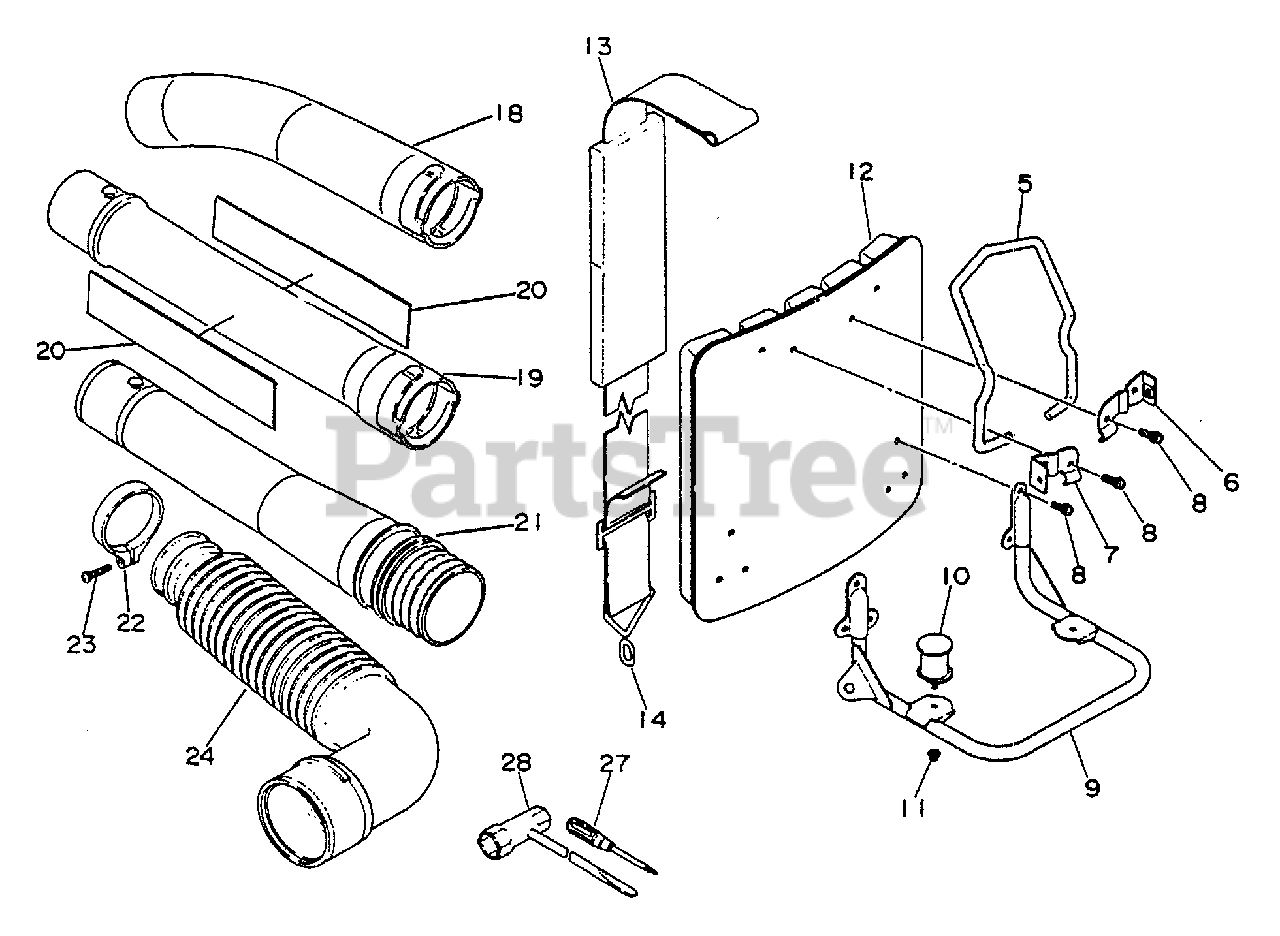

Backpack Frame, Blower Tubes, Strap, Tools Parts Diagram

  • Title

5

Echo 30061003460

HANGER

$13.99

$

Usually ships in 2-4 days

0

6

Echo 30061403460

BRACKET

$5.99

$

Usually ships in 2-4 days

0

7

Echo 30061503460

BRACKET, HANGER
(Superseded to Discontinued)

$

$

Not available

8

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

9

Echo 30510503460

STAND

$47.99

$

Usually ships in 2-4 days

0

10

Echo 20091601110

CUSHION

$13.99

$

In Stock, only 2 left!

0

11

Echo 90051800006

NUT, FLANGE M6

$1.99

$

In Stock, Qty 20+

0

12

Echo 30010503460

CUSHION, BACKPACK

$87.99

$

Usually ships in 2-4 days

0

13

Echo 30030000761

BACKPACK STRAP ASSY
(Superseded to 30030102260)

$37.99

$

In Stock, Qty 8

0

14

Echo 300319-01611

RING, HARNESS

$0.99

$

In Stock, only 3 left!

0

18

Echo 21002303461

TUBE, BLOWER - CURVED

$20.99

$

In Stock, Qty 12

0

19

Echo 21001503460

TUBE, BLOWER - STRAIGHT
(Superseded to 21001503461)

$13.99

$

In Stock, Qty 11

0

19

Echo 21001503460

TUBE, BLOWER - STRAIGHT
(Superseded to 21001503461)

Note: Includes ITEM 20

$13.99

$

In Stock, Qty 11

0

20

Echo 89011804260

LABEL - ECHO
(Superseded to 89011804261)

$1.99

$

In Stock, Qty 20+

0

21

Echo 21200503460

TUBE, BLOWER - SWIVEL

$27.99

$

In Stock, only 3 left!

0

22

Echo 21040000660

CLAMP KIT
(Superseded to P021043140)

Note: Includes ITEM 23

$8.49

$

In Stock, Qty 9

0

23

Echo 90022005025

SCREW 5×25

$0.99

$

In Stock, Qty 19

0

24

Echo 21000603460

TUBE, BLOWER - FLEXIBLE
(Superseded to Discontinued)

$

$

Not available

27

Echo 89571000430

SCREWDRIVER - CROSS HEAD

$1.49

$

Usually ships in 2-4 days

0

28

Echo 89541039131

T-WRENCH 10×19 MM
(Superseded to 89541039132)

$4.49

$

In Stock, Qty 20+

0

Echo PBAV300

PBAV-300E VACUUM ATTACHMENT

Note: Accessories

$

$

Currently unavailable

Echo 196001

PBAV BAG ONLY

Note: Accessories

$

$

Currently unavailable

Echo PBAM300

PBAM-300E MISTER

Note: Accessories

$

$

Currently unavailable

Echo 99944100010

RAIN GUTTER KIT

Note: Accessories

$95.99

$

Usually ships in 2-4 days

0

Echo 99944100020

BLOWER TUBE HELPER HANDLE

Note: Accessories

$

$

Not available
