PB-300 E - Echo Backpack Blower (SN: 0049617 - 9999999) Fuel System, Ignition, Starter Parts Diagram

Backpack blower with 2-cycle air-cooled single-cylinder engine (30.8 cc) featuring a Walbro diaphragm carburetor and CDI ignition (NGK BPM-7A/Champion CJ-7Y). Dimensions 32x41x42 in.

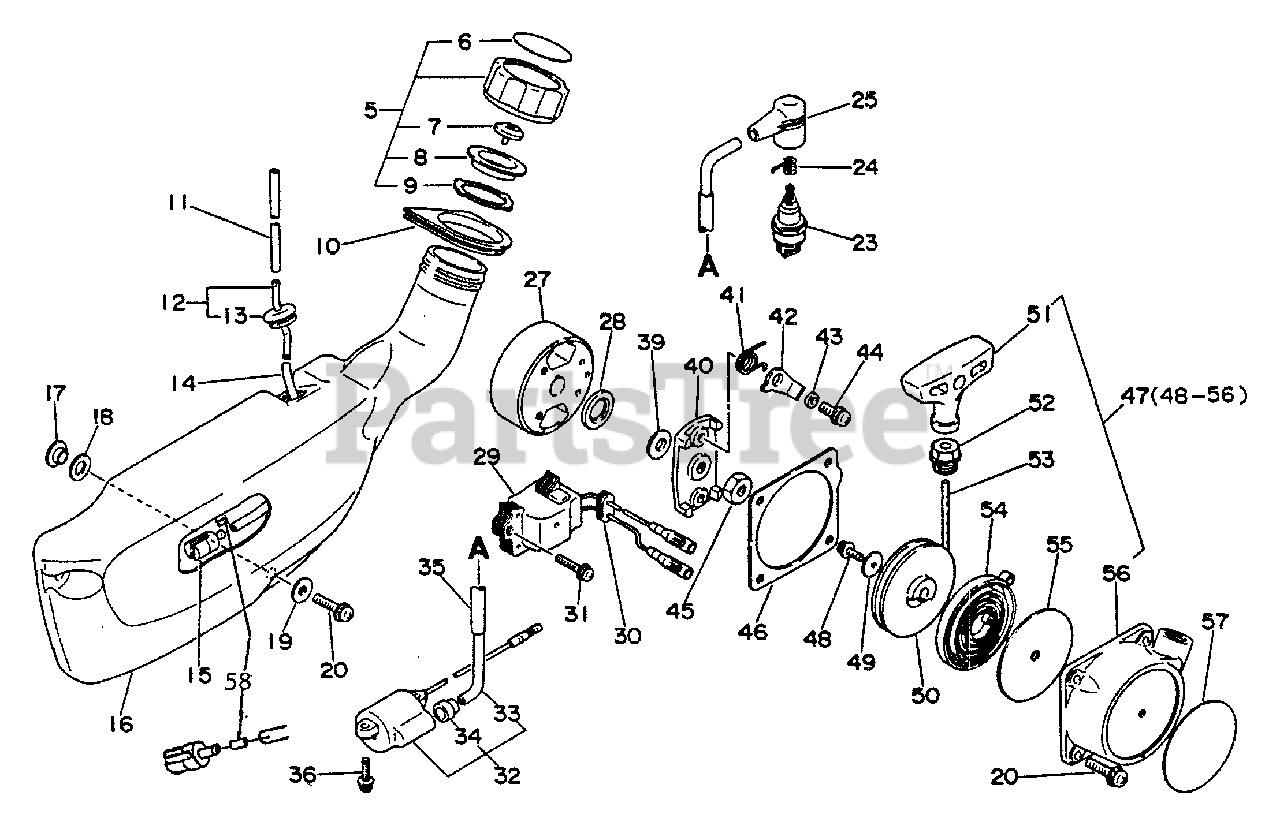

Fuel System, Ignition, Starter Parts Diagram

  • Title

5

Echo 13160003360

CAP ASSY
(Superseded to 13100406610)

$13.99

$

In Stock, only 2 left!

0

6

Echo 89015412730

LABEL - FUEL MIX
(Superseded to 89014706160)

$

$

Not available

7

Echo 13131406320

VENT ASSY

$6.49

$

In Stock, Qty 9

0

8

Echo 13101521330

HOLDER, CHECK VALVE
(Superseded to A358000000)

$

$

Not available

9

Echo 131016-21230

GASKET, FUEL CAP

$3.99

$

In Stock, only 2 left!

0

10

Echo 13103803460

BUSHING
(Superseded to Discontinued)

$

$

Not available

11

Echo 13201203460

PIPE, FUEL

$4.49

$

Usually ships in 2-4 days

0

12

Echo 13200503460

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

13

Echo 13211521330

GROMMET

$2.99

$

In Stock, only 2 left!

0

14

Echo 13201204260

PIPE, FUEL
(Superseded to Discontinued)

$

$

Not available

15

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

16

Echo 13101003460

TANK, FUEL
(Superseded to 13101003461)

$

$

Not available

17

Echo 13191603460

SPACER

$1.99

$

In Stock, Qty 8

0

18

Echo 13192502310

CUSHION

$1.99

$

In Stock, Qty 20+

0

19

Echo 13191103460

WASHER 5.5×16×0.8

$0.99

$

In Stock, Qty 9

0

20

Echo 900242-05020

SCREW 5×20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 7

0

23

Echo 15901713930

SPARK PLUG - CJ-7Y
(Superseded to 15901010630)

$3.99

$

In Stock, Qty 20+

0

24

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

25

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 19

0

27

Echo 15680003460

FLYWHEEL
(Superseded to 15680003461)

$

$

Not available

28

Echo 10013503460

WASHER

$

$

Not available

29

Echo 15660103460

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

30

Echo 15611403360

GROMMET

$1.99

$

In Stock, Qty 5

0

31

Echo 900242-04020

SCREW 4×20

$0.99

$

In Stock, Qty 16

0

32

Echo 15660203460

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

33

Echo 15663103460

CORD, HIGH TENSION

$3.49

$

Usually ships in 2-4 days

0

34

Echo 15663203460

COVER

$2.49

$

Usually ships in 2-4 days

0

35

Echo 15661103460

PIPE

$

$

Not available

36

Echo 900242-04014

SCREW 4×14

$0.99

$

In Stock, Qty 5

0

39

Echo 90060000008

WASHER 8.5×16×1.2

$0.99

$

Usually ships in 2-4 days

0

40

Echo 17721006530

PAWL CATCHER
(Superseded to Discontinued)

$

$

Not available

41

Echo 17723406530

SPRING

$1.49

$

In Stock, Qty 6

0

42

Echo 17721806530

RATCHET
(Superseded to Discontinued)

$

$

Not available

43

Echo 17724704630

SPACER 5.2×8×2.1

$2.49

$

In Stock, only 2 left!

0

44

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

45

Echo 90051000008

NUT

$1.49

$

Usually ships in 2-4 days

0

46

Echo 10061503460

GASKET, STARTER
(Superseded to 10061503461)

$1.99

$

Usually ships in 2-4 days

0

47

Echo 17720003460

STARTER ASSY
(Superseded to 17720007460)

$

$

Not available

48

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

49

Echo 17721404630

WASHER 4.1×15.5×1T

$0.99

$

In Stock, Qty 5

0

50

Echo 17721515133

REEL, ROPE

$

$

Not available

51

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

52

Echo 17722705020

GUIDE, ROPE

$4.99

$

In Stock, only 4 left!

0

53

Echo 17722606530

ROPE, STARTER 3.0×850

Note: RePower BULK OPTION: 99944445000

$7.49

$

In Stock, only 4 left!

0

54

Echo 17722006530

SPRING, RECOIL

$16.99

$

In Stock, only 2 left!

0

55

Echo 17722116530

PLATE

$

$

Not available

56

Echo 17720903460

CASE, STARTER
(Superseded to 17720907460)

$

$

Not available

57

Echo 89011217831

LABEL - ECHO
(Superseded to 89011817830)

$7.49

$

In Stock, only 2 left!

0

58

Echo 13200115030

VALVE, CHECK

$4.99

$

In Stock, only 3 left!

0
