PB-300 E - Echo Backpack Blower (SN: 0049617 - 9999999) Vac Attch Parts Diagram

Backpack blower with 2-cycle air-cooled single-cylinder engine (30.8 cc) featuring a Walbro diaphragm carburetor and CDI ignition (NGK BPM-7A/Champion CJ-7Y). Dimensions 32x41x42 in.

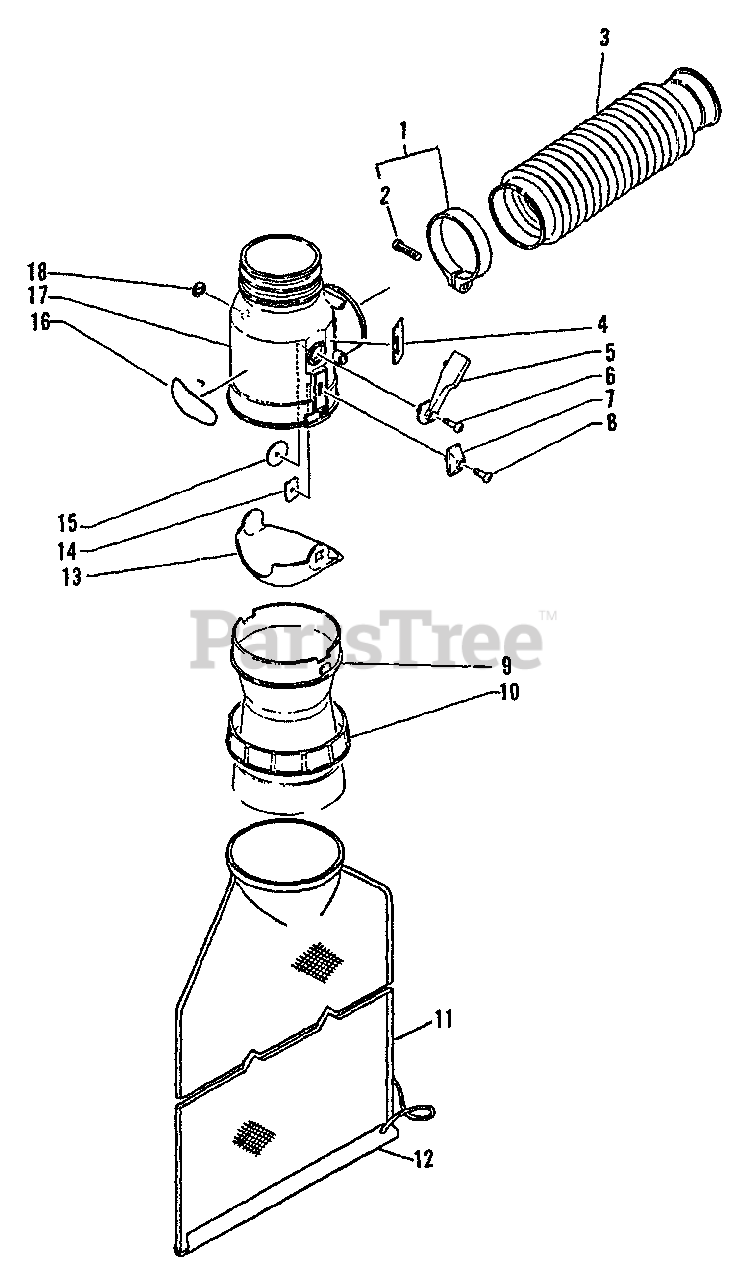

Vac Attch Parts Diagram

  • Title

1

Echo 21040000660

CLAMP KIT
(Superseded to P021043140)

Note: Includes ITEM 2

$8.49

$

In Stock, Qty 9

0

2

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

3

Echo 21001200960

TUBE, FLEXIBLE
(Superseded to Discontinued)

$

$

Not available

4

Echo 89017501961

LABEL

$1.99

$

Usually ships in 2-4 days

0

5

Echo 21511101960

LEVER

$4.99

$

Usually ships in 2-4 days

0

6

Echo 90022005014

SCREW 5×14

$0.99

$

In Stock, Qty 7

0

7

Echo 21501501960

STOPPER

$4.49

$

Usually ships in 2-4 days

0

8

Echo 90022004014

SCREW 4×14

$0.99

$

Usually ships in 2-4 days

0

9

Echo 21501201961

CONNECTOR

$21.99

$

Usually ships in 2-4 days

0

10

Echo 21501301961

RING

$6.99

$

Usually ships in 2-4 days

0

11

Echo 1960001

BAG, VACUUM

Note: Includes ITEM 12

$

$

Currently unavailable

12

Echo 1960020

CLIP, VACUUM BAG
(Superseded to Discontinued)

$

$

Not available

13

Echo 21511001961

SHUTTER

$7.49

$

Usually ships in 2-4 days

0

14

Echo 21501601860

PLATE

$4.99

$

Usually ships in 2-4 days

0

15

Echo 21511201860

WASHER

$5.99

$

Usually ships in 2-4 days

0

16

Echo 89013844330

LABEL - ECHO
(Superseded to 89011848730)

$0.99

$

In Stock, Qty 5

0

17

Echo 21501101961

TUBE, SUCTION

$31.99

$

Usually ships in 2-4 days

0

18

Echo 90070000008

RING, RETAINING - 8

$0.99

$

Usually ships in 2-4 days

0
