PB 3410 - Shindaiwa Power Broom Gearcase Parts Diagram

Power Broom

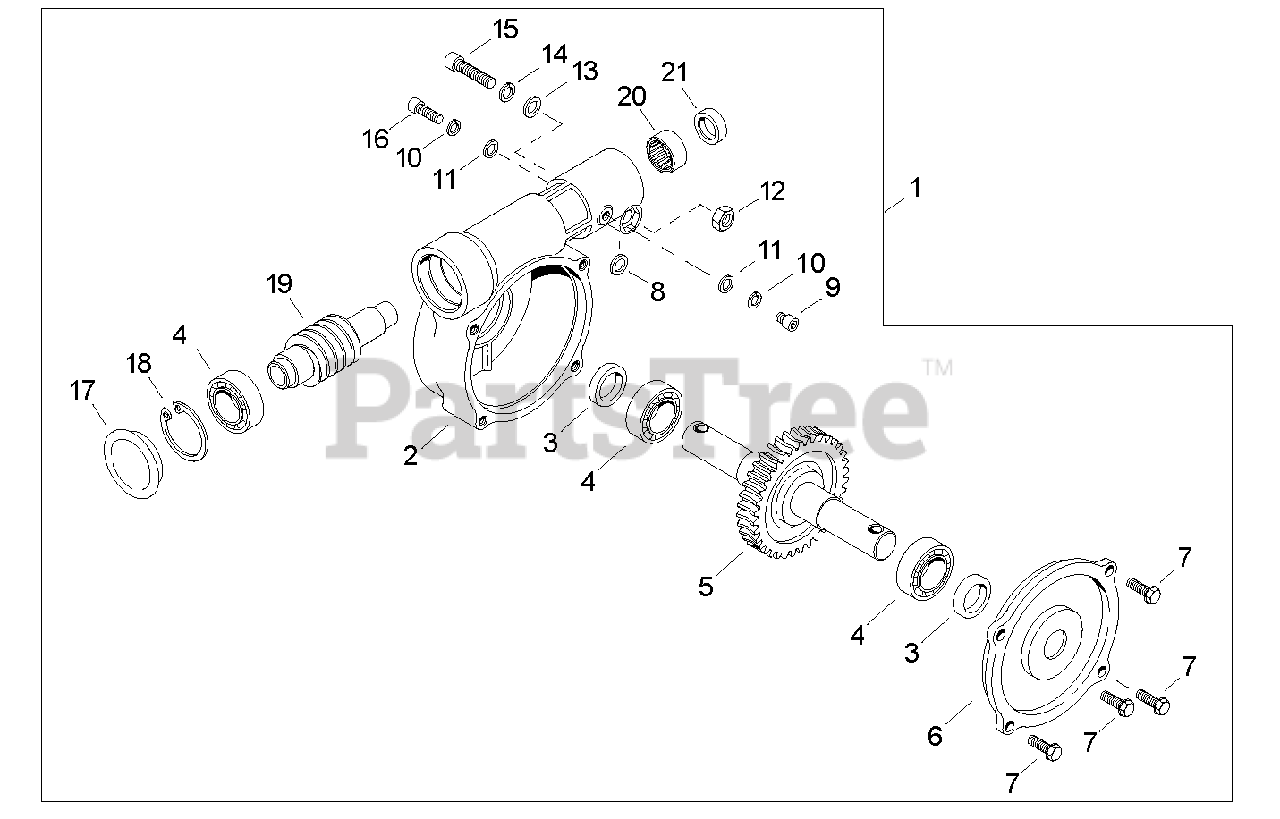

Gearcase Parts Diagram

  • Title

1

Echo 33333

GEAR CASE ASSY
(Superseded to C051000940)

$531.99

$

Usually ships in 2-4 days

0

3

Echo 50523

SEAL, OUTPUT SEG TC15-24-5-20

$25.99

$

Usually ships in 2-4 days

0

4

Echo 50506

BEARING, BALL PEER 6002

$18.99

$

Usually ships in 2-4 days

0

7

Echo 50508

SCREW SELF-TAPPING 5×16
(Superseded to Discontinued)

$

$

Not available

8

Echo 50509

WASHER M6

$1.49

$

Usually ships in 2-4 days

0

9

Echo 50520

BOLT 5×8×0.80
(Superseded to Discontinued)

$

$

Not available

10

Echo 01600-05131

WASHER, SPRING 5
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 9

0

11

Echo 01610-05080

WASHER, FLAT 5.5×10×0.8
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

12

Echo 50510

NUT M6
(Superseded to Discontinued)

$

$

Not available

13

Echo 50509

WASHER M6

$1.49

$

Usually ships in 2-4 days

0

14

Echo 50511

WASHER, LOCK M6

$1.49

$

Usually ships in 2-4 days

0

15

Echo 50507

SCREW, SOCKET HEAD 6×30

$1.99

$

Usually ships in 2-4 days

0

16

Echo 01020-05120

BOLT 5×12
(Superseded to 90010505012)

$1.49

$

In Stock, Qty 20+

0

18

Echo 50512

RING, SNAP 34 MM

$6.49

$

Usually ships in 2-4 days

0

20

Echo 50505

BEARING, NEEDLE SCE 107 1/2 NF R
(Superseded to Discontinued)

$

$

Not available

21

Echo 50522

SEAL, INPUT SCG TC-12-21-6
(Superseded to Discontinued)

$

$

Not available

------------------

BELOW PARTS NOT AVAILABLE AS INDIVIDUAL COMPONENTS: ORDER ASSY. P/N 33333

$

$

Not available

------------------

HOUSING, GEAR CASE

$

$

Not available

5

GEAR - DRIVE

$

$

Not available

COVER, GEAR CASE

$

$

Not available

17

PLUG

$

$

Not available

GEAR, WORM

$

$

Not available
