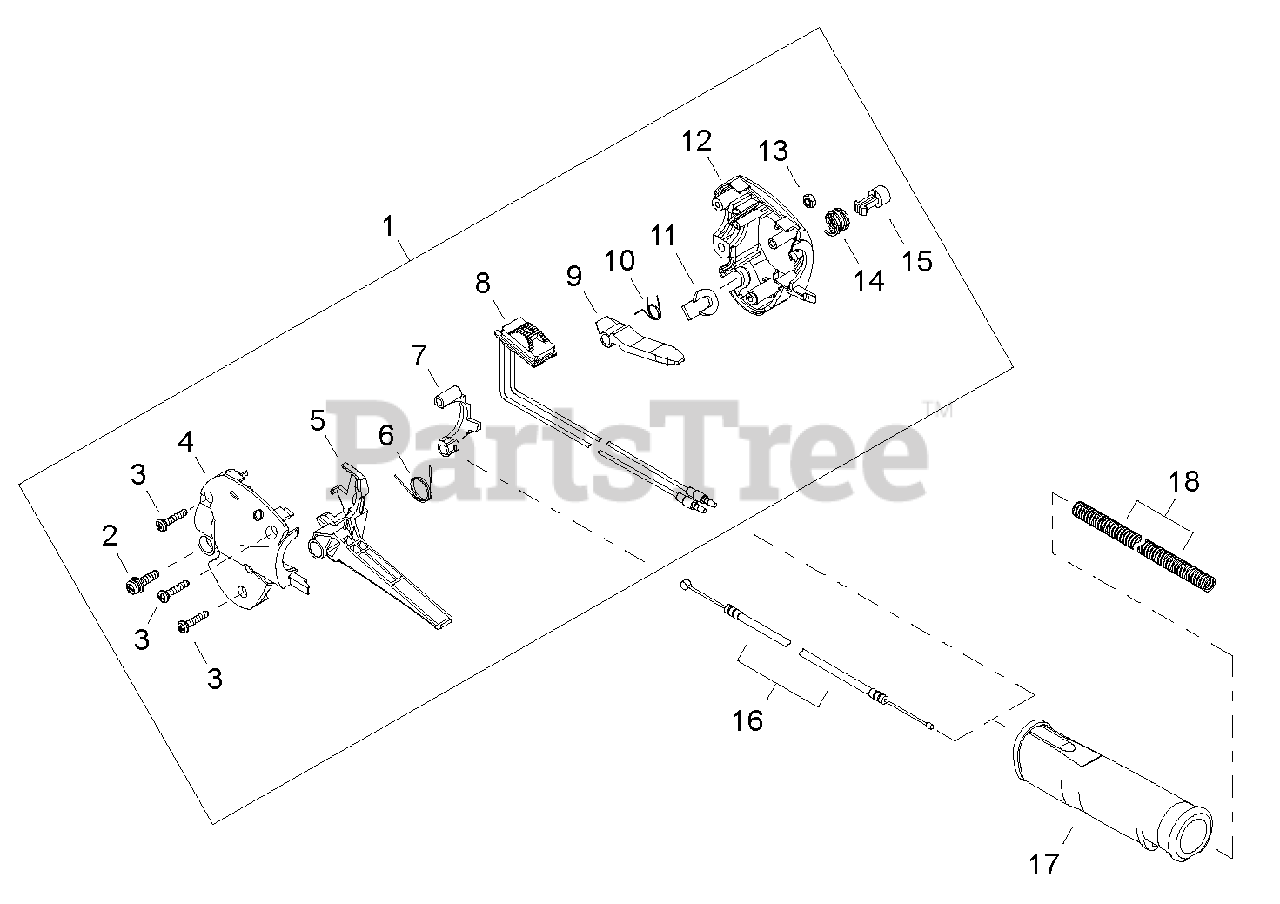

PB 3410 - Shindaiwa Power Broom Throttle Control Parts Diagram

Power Broom

Throttle Control Parts Diagram

  • Title

1

Echo 63907-62020

THROTTLE CONTROL ASSY
(Superseded to C044000850)

$63.99

$

Usually ships in 2-4 days

0

2

Echo 11206-05201

SCREW M5×20
(Superseded to 9157505020)

$1.49

$

In Stock, only 1 left!

0

3

Echo 63880-65360

SCREW, TAPPING M4×20
(Superseded to V252000380)

$1.99

$

Usually ships in 2-4 days

0

4

Echo 63000-62350

CONTROL HANDLE - LEFT
(Superseded to C401000190)

$10.99

$

Usually ships in 2-4 days

0

5

Echo 63002-62340

TRIGGER, THROTTLE
(Superseded to C450000480)

$9.99

$

In Stock, only 2 left!

0

6

Echo 63880-65350

SPRING, THROTTLE RETURN
(Superseded to V452000700)

$1.99

$

In Stock, Qty 7

0

7

Echo 63002-62350

LOCKOUT, THROTTLE
(Superseded to C461000020)

$3.99

$

In Stock, only 1 left!

0

8

Echo 63907-62310

SWITCH, ON-OFF
(Superseded to A440001460)

$25.99

$

Usually ships in 2-4 days

0

9

Echo 63901-62352

LEVER, THROTTLE LOCKOUT
(Superseded to C460000190)

$4.99

$

In Stock, only 4 left!

0

10

Echo 63901-62370

SPRING, THROTTLE LOCKOUT
(Superseded to V452000500)

$1.99

$

In Stock, Qty 5

0

11

Echo 63880-65411

PLUG
(Superseded to V162000350)

$1.99

$

Usually ships in 2-4 days

0

12

Echo 63000-62340

CONTROL HANDLE - RIGHT

$11.99

$

Usually ships in 2-4 days

0

13

Echo 01501-05030

NUT M5
(Superseded to 9201705000)

$1.49

$

In Stock, Qty 10

0

14

Echo 70871-65180

SPRING, COMPRESSION
(Superseded to V450001010)

$1.49

$

In Stock, only 3 left!

0

15

Echo 70871-65170

BUTTON, THROTTLE LOCK
(Superseded to C461000080)

$2.49

$

Usually ships in 2-4 days

0

16

Echo 63907-62170

CABLE, THROTTLE
(Superseded to V430002880)

$6.49

$

Usually ships in 2-4 days

0

17

Echo 63043-62140

GRIP
(Superseded to C412000380)

$9.99

$

In Stock, only 2 left!

0

18

Echo 64902-62310

TUBE, PLASTIC PROTECTIVE

$1.99

$

Usually ships in 2-4 days

0
