PB 350-01 - Paramount Blower, Electric BLOWER ASSEMBLY Parts Diagram

Blower, Electric

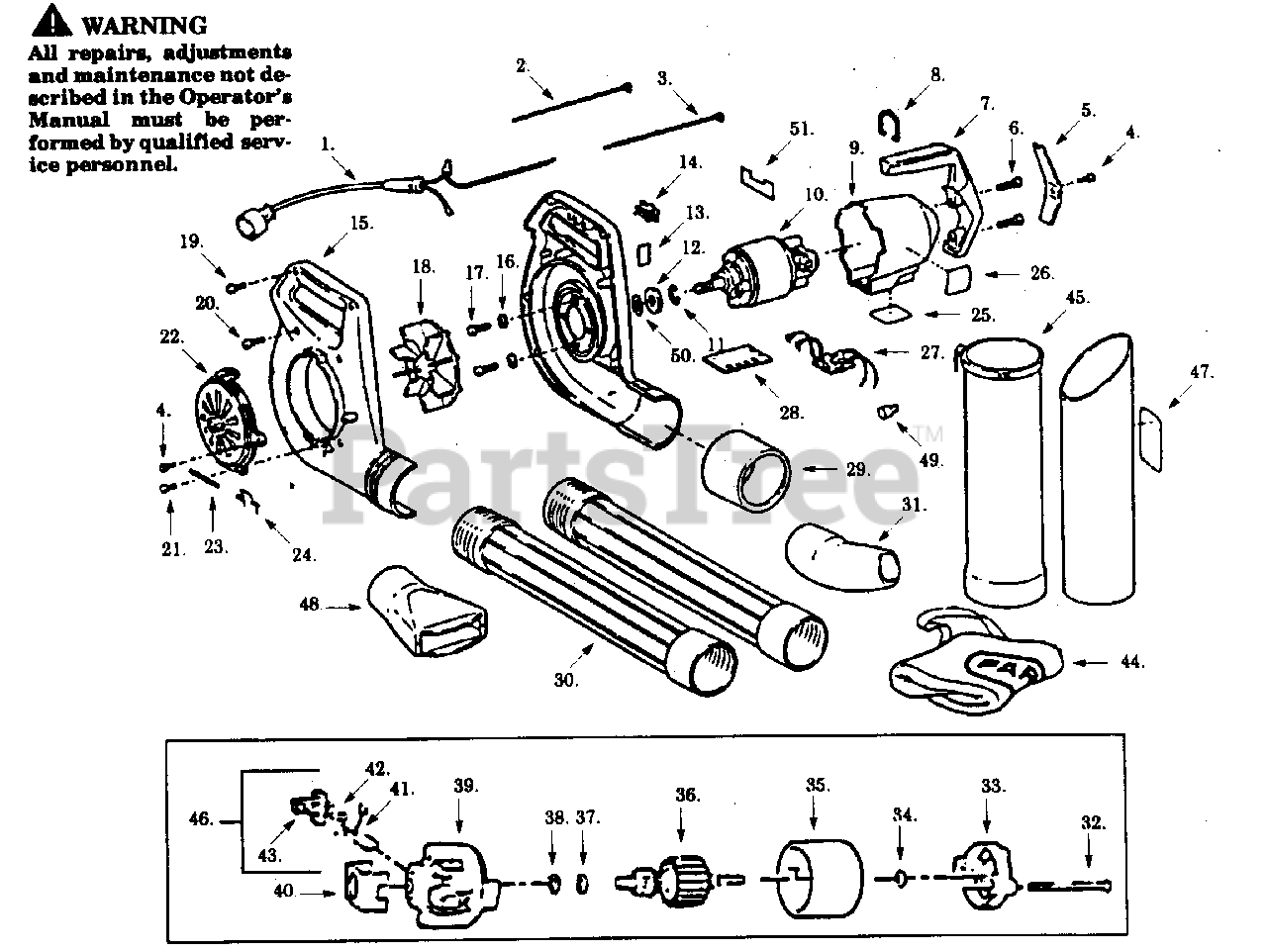

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534434001

Power Cord Ass'y.

$

$

Not available

2

Poulan 534433802

Leadwire Ass'y. (Red)

$2.49

$

Usually ships in 3-10 days

0

3

Poulan 534433800

Leadwire Ass'y.(Black)

$

$

Not available

4

Poulan 534826801

Screw

$

$

Not available

5

Poulan 534404355

Plate

$2.49

$

Usually ships in 3-10 days

0

6

Poulan 534136402

Screw

$2.49

$

Usually ships in 3-10 days

0

7

Poulan 534319705

Side Handle

$

$

Not available

8

Poulan 534270100

Hanger

$2.49

$

Usually ships in 3-10 days

0

9

Poulan 534319602

Motor Cover

$14.99

$

Usually ships in 3-10 days

0

10

Poulan 534225010

Motor Ass'y.

$

$

Not available

11

Poulan 534747011

Retaining Ring

$2.49

$

Usually ships in 3-10 days

0

12

Poulan 534136100

Washer

$

$

Not available

13

Poulan 534797100

Hsg. Front Label (Not a serviceable part)

$

$

Not available

14

Poulan 534447903

On/Off Switch

$6.49

$

In Stock, only 2 left!

0

15

Poulan 534491722

Housing Set

$

$

Not available

16

Poulan 534494604

Washer

$3.99

$

Usually ships in 3-10 days

0

17

Poulan 534136401

Screw

$2.49

$

Usually ships in 3-10 days

0

18

Poulan 534398315

Impeller Ass'y.

$

$

Not available

19

Poulan 534790302

Screw

$2.49

$

Usually ships in 3-10 days

0

20

Poulan 534790300

Screw

$

$

Not available

21

Poulan 534908400

Screw

$1.49

$

Usually ships in 3-10 days

0

22

Poulan 534498205

Inlet Cover Ass'y.

$

$

Not available

23

Poulan 534327201

Pin Hinge

$4.99

$

In Stock, only 1 left!

0

24

Poulan 534475900

Return Spring

$3.99

$

In Stock, only 1 left!

0

25

Poulan 534760704

Warning Label

$

$

Not available

26

Poulan 534797000

Motor Cover Label (Not a serviceable part)

$

$

Not available

27

Poulan 534807001

P.C. Board Ass'y.

$18.99

$

Usually ships in 3-10 days

0

28

Poulan 534334800

Mounting Board

$

$

Not available

29

Poulan 534408415

Ferrule Sleeve

$

$

Not available

30

Poulan 534352705

Outlet Tube

$

$

Not available

31

Poulan 534373405

Nozzle

$

$

Not available

32

Poulan 534228700

Screw

$

$

Not available

33

Poulan 534207101

Endbell Ass'y. (Drive)

$

$

Not available

34

Poulan 534228800

Washer

$2.49

$

Usually ships in 3-10 days

0

35

Poulan 534227001

Field Ass'y.

$30.99

$

Usually ships in 3-10 days

0

36

Poulan 534225110

Armature Ass'y.

$42.99

$

Usually ships in 3-10 days

0

37

Poulan 534228802

Washer

$

$

Not available

38

Poulan 534238903

Washer

$

$

Not available

39

Poulan 534227501

Endbell Ass'y. (Brush)

$

$

Not available

40

Poulan 534226000

Insulator

$

$

Not available

41

Poulan 534227800

Brush

$

$

Not available

42

Poulan 534228000

Brush Spring

$

$

Not available

43

Poulan 534227700

Brush Holder

$

$

Not available

44

Poulan 534339900

Vacuum Bag

$

$

Not available

45

Poulan 534528705

Vacuum Tube

$

$

Not available

46

Poulan 534450400

Brush Kit (Incl. 41,42,43)

$

$

Not available

47

Poulan 534803400

Warning Label

$

$

Not available

48

Poulan 534339405

Diffuser Nozzle

$

$

Not available

49

Poulan 534561000

Crimp Nut

$

$

Not available

50

Poulan 534757900

Washer

$2.49

$

Usually ships in 3-10 days

0

51

Poulan 534500300

Switch Label

$

$

Not available

52

Poulan 534886570

Operator Manual

Note: Not Shown.

$3.99

$

Usually ships in 3-10 days

0
