PB-400 E - Echo Backpack Blower (SN: 128096 - 249241) Carburetor S/N: 227592 - 249241 Parts Diagram

Backpack Blower

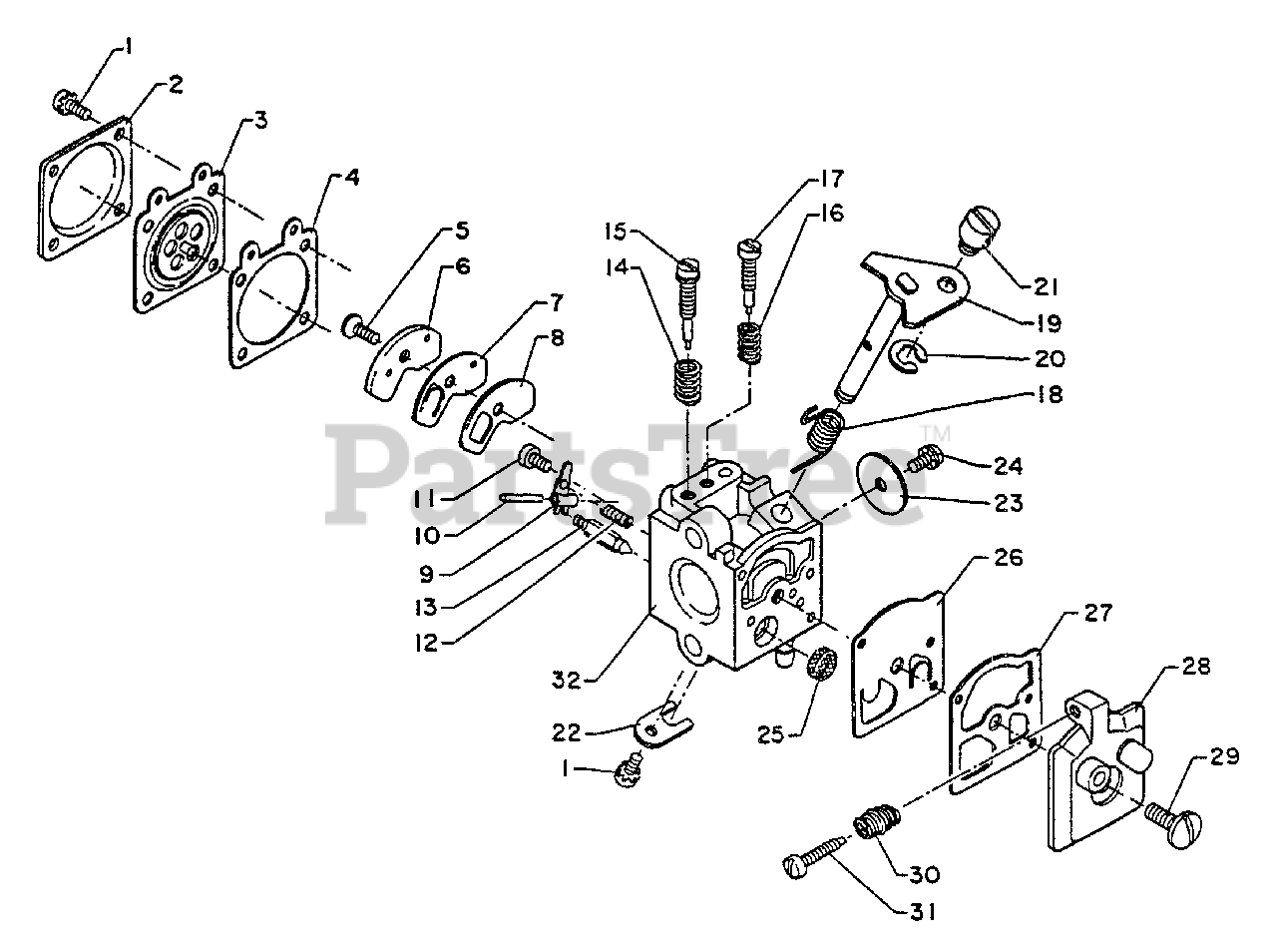

Carburetor S/N: 227592 - 249241 Parts Diagram

  • Title

Echo 12300000761

CARBURETOR - WA-55A
(Superseded to 12300000762)

Note: Consists of 1 thru 32

$175.99

$

In Stock, Qty 5

0

1

Echo 12310004930

REPAIR KIT, CARBURETOR

$20.99

$

In Stock, Qty 8

0

2

Echo 12314203930

COVER, METERING DIAPHRAGM

$4.99

$

In Stock, only 2 left!

0

3

Echo 12310004930

REPAIR KIT, CARBURETOR

Note: Included in Carburetor repair kit P/N 12310004930, & Carburetor gasket/diaphragm kit P/N 12310103930.

$20.99

$

In Stock, Qty 8

0

4

Echo 12310004930

REPAIR KIT, CARBURETOR

Note: Included in Carburetor repair kit P/N 12310004930, & Carburetor gasket/diaphragm kit P/N 12310103930.

$20.99

$

In Stock, Qty 8

0

5

Echo 12310004930

REPAIR KIT, CARBURETOR

$20.99

$

In Stock, Qty 8

0

6

Echo 12316603930

PLATE, CIRCUIT
(Superseded to Discontinued)

$

$

Not available

7

Echo 12310004930

REPAIR KIT, CARBURETOR

Note: Included in Carburetor repair kit P/N 12310004930, & Carburetor gasket/diaphragm kit P/N 12310103930.

$20.99

$

In Stock, Qty 8

0

8

Echo 12310004930

REPAIR KIT, CARBURETOR

Note: Included in Carburetor repair kit P/N 12310004930, & Carburetor gasket/diaphragm kit P/N 12310103930.

$20.99

$

In Stock, Qty 8

0

9

Echo 12310004930

REPAIR KIT, CARBURETOR

$20.99

$

In Stock, Qty 8

0

10

Echo 12310004930

REPAIR KIT, CARBURETOR

$20.99

$

In Stock, Qty 8

0

11

Echo 12310004930

REPAIR KIT, CARBURETOR

$20.99

$

In Stock, Qty 8

0

12

Echo 12310004930

REPAIR KIT, CARBURETOR

$20.99

$

In Stock, Qty 8

0

13

Echo 12310004930

REPAIR KIT, CARBURETOR

$20.99

$

In Stock, Qty 8

0

14

Echo 12310004930

REPAIR KIT, CARBURETOR

$20.99

$

In Stock, Qty 8

0

15

Echo 12312000760

NEEDLE, HIGH SPEED

$5.49

$

Usually ships in 2-4 days

0

16

Echo 12310004930

REPAIR KIT, CARBURETOR

$20.99

$

In Stock, Qty 8

0

17

Echo 12311804420

NEEDLE, IDLE

$4.99

$

Usually ships in 2-4 days

0

18

Echo 12311337530

SPRING, THROTTLE RETURN

$3.49

$

Usually ships in 2-4 days

0

19

Echo 12311705020

SHAFT, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

20

Echo 12312710630

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

21

Echo 12317204320

SWIVEL

$2.49

$

Usually ships in 2-4 days

0

22

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

23

Echo 12311603930

VALVE, THROTTLE

$2.49

$

In Stock, only 2 left!

0

24

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 7

0

25

Echo 12310004930

REPAIR KIT, CARBURETOR

$20.99

$

In Stock, Qty 8

0

26

Echo 12310004930

REPAIR KIT, CARBURETOR

Note: Included in Carburetor repair kit P/N 12310004930, & Carburetor gasket/diaphragm kit P/N 12310103930.

$20.99

$

In Stock, Qty 8

0

27

Echo 12310004930

REPAIR KIT, CARBURETOR

Note: Included in Carburetor repair kit P/N 12310004930, & Carburetor gasket/diaphragm kit P/N 12310103930.

$20.99

$

In Stock, Qty 8

0

28

Echo 12312400760

COVER, PUMP

$10.99

$

Usually ships in 2-4 days

0

29

Echo 12311003930

SCREW

$0.99

$

Usually ships in 2-4 days

0

30

Echo 12313304260

SPRING, IDLE ADJUST

$7.49

$

In Stock, only 2 left!

0

31

Echo 12313404260

SCREW, IDLE ADJUST

$2.49

$

In Stock, only 1 left!

0

32

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

Echo 12310004930

REPAIR KIT, CARBURETOR

$20.99

$

In Stock, Qty 8

0

Echo 12310103930

GASKET / DIAPHRAGM KIT

$8.49

$

In Stock, only 2 left!

0
