PB-400 E - Echo Backpack Blower (SN: 249242 - 999999) Carburetor Parts Diagram

Backpack Blower

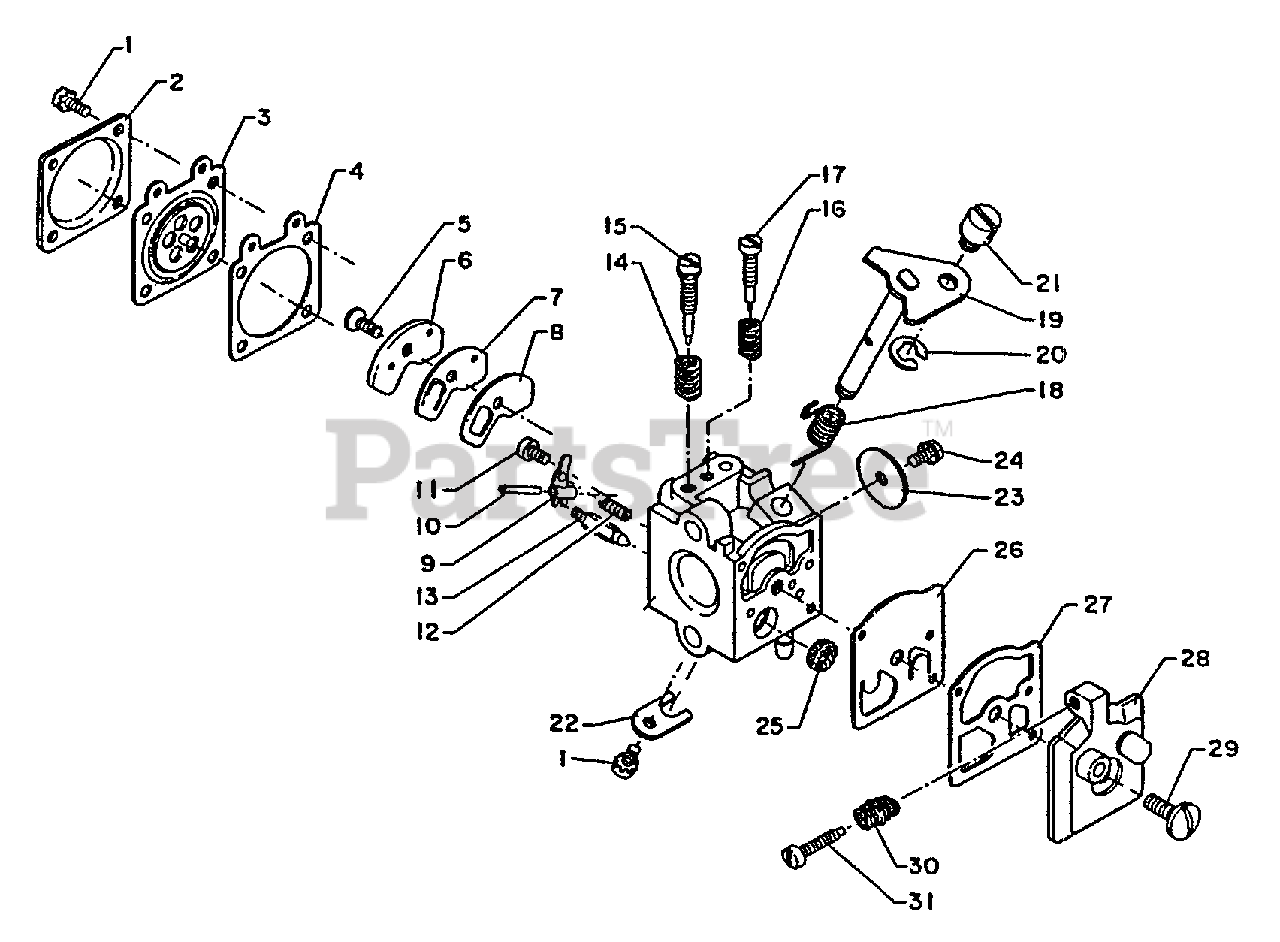

Carburetor Parts Diagram

  • Title

Echo 12300000762

CARBURETOR WA-55B

$175.99

$

In Stock, Qty 5

0

1

------------------

SCREW

Note: Included in Carburetor Repair Kit P/N 12310004930

$

$

Not available

2

Echo 12314203930

COVER, METERING

$4.99

$

In Stock, only 2 left!

0

3

------------------

DIAPHRAGM, METERING

Note: Included in Carburetor Repair Kit P/N 12310004930 & Carburetor Gasket/Diaphragm Kit P/N 12310103930

$

$

Not available

4

------------------

GASKET, METERING

Note: Included in Carburetor Repair Kit P/N 12310004930 & Carburetor Gasket/Diaphragm Kit P/N 12310103930

$

$

Not available

5

------------------

SCREW

Note: Included in Carburetor Repair Kit P/N 12310004930

$

$

Not available

6

Echo 12316600760

PLATE, CIRCUIT
(Superseded to Discontinued)

$

$

Not available

7

------------------

DIAPHRAGM, CIRCUIT PLATE

Note: Included in Carburetor Repair Kit P/N 12310004930 & Carburetor Gasket/Diaphragm Kit P/N 12310103930

$

$

Not available

8

------------------

GASKET CIRCUIT PLATE

Note: Included in Carburetor Repair Kit P/N 12310004930 & Carburetor Gasket/Diaphragm Kit P/N 12310103930

$

$

Not available

9

------------------

LEVER, METERING

Note: Included in Carburetor Repair Kit P/N 12310004930

$

$

Not available

10

------------------

PIN, METERING LEVER

Note: Included in Carburetor Repair Kit P/N 12310004930

$

$

Not available

11

------------------

SCREW, METERING LEVER PIN

Note: Included in Carburetor Repair Kit P/N 12310004930

$

$

Not available

12

------------------

SPRING, METERING LEVER

Note: Included in Carburetor Repair Kit P/N 12310004930

$

$

Not available

13

------------------

VALVE, INLET NEEDLE

Note: Included in Carburetor Repair Kit P/N 12310004930

$

$

Not available

14

------------------

SPRING

Note: Included in Carburetor Repair Kit P/N 12310004930

$

$

Not available

15

Echo 12312000760

NEEDLE - HIGH SPEED

$5.49

$

Usually ships in 2-4 days

0

16

------------------

SPRING

Note: Included in Carburetor Repair Kit P/N 12310004930

$

$

Not available

17

Echo 12311804420

NEEDLE - LOW SPEED

$4.99

$

In Stock, only 1 left!

0

18

Echo 12311303930

SPRING, THROTTLE RETURN
(Superseded to 12311309660)

$1.49

$

In Stock, Qty 11

0

19

Echo 12311705020

SHAFT, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

20

Echo 12312710630

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

21

Echo 12317204320

SWIVEL

$2.49

$

Usually ships in 2-4 days

0

22

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

23

Echo 12311603930

VALVE, THROTTLE

$2.49

$

In Stock, only 2 left!

0

24

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 8

0

25

------------------

STRAINER

Note: Included in Carburetor Repair Kit P/N 12310004930

$

$

Not available

26

------------------

DIAPHRAGM, PURGE

Note: Included in Carburetor Repair Kit P/N 12310004930 & Carburetor Gasket/Diaphragm Kit P/N 12310103930

$

$

Not available

27

------------------

GASKET, PURGE

Note: Included in Carburetor Repair Kit P/N 12310004930 & Carburetor Gasket/Diaphragm Kit P/N 12310103930

$

$

Not available

28

Echo 12312400761

COVER, PUMP

$10.99

$

Usually ships in 2-4 days

0

29

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

30

Echo 12313304260

SPRING, IDLE ADJUST

$7.49

$

In Stock, Qty 5

0

31

Echo 12313404260

SCREW, IDLE ADJUST

$2.49

$

In Stock, only 2 left!

0

Echo 12310004930

REPAIR KIT

$20.99

$

In Stock, Qty 12

0

Echo 12310103930

DIAPHRAGM/GASKET KIT

$8.49

$

In Stock, only 4 left!

0
