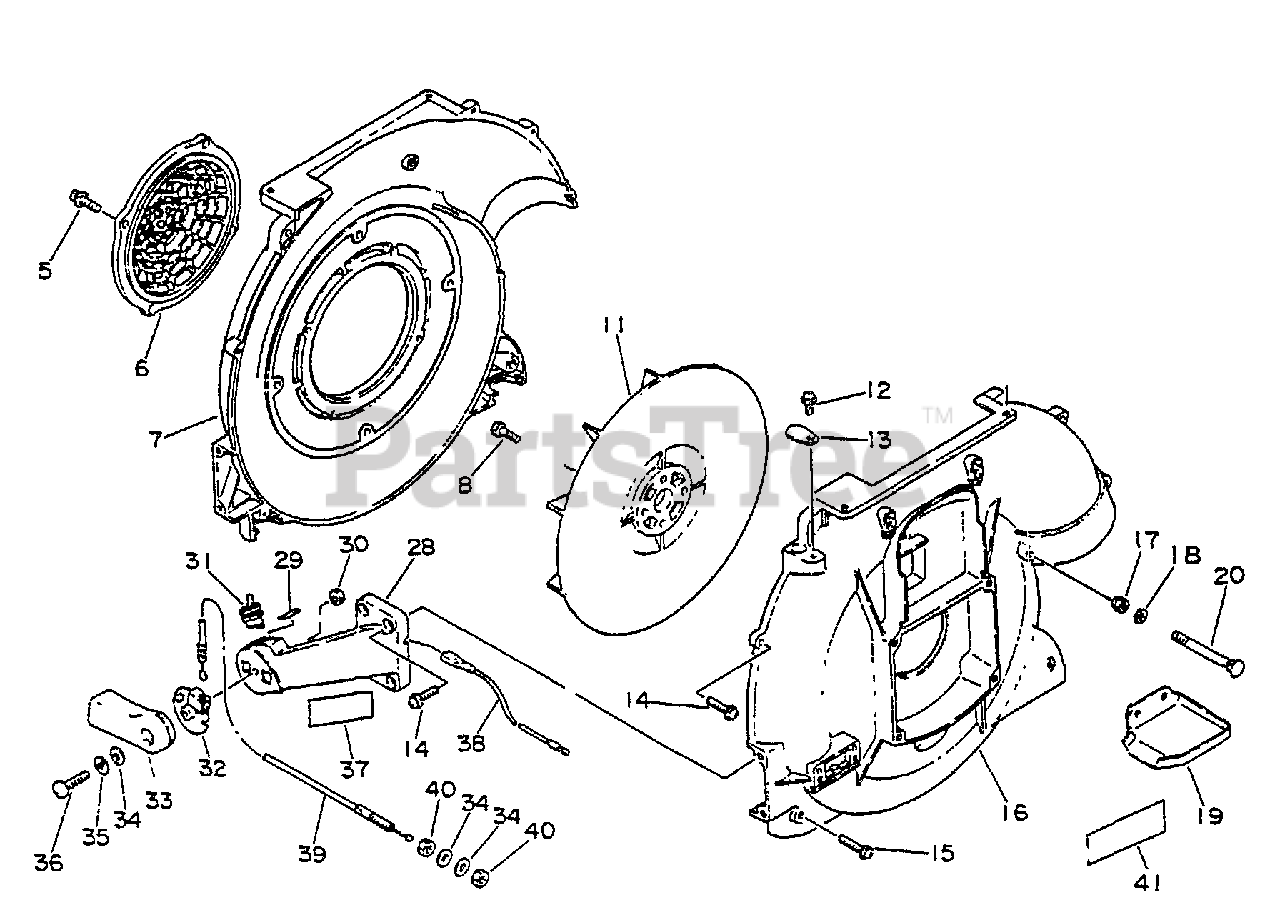

PB-400 E - Echo Backpack Blower (SN: 249242 - 999999) Fan, Housings Parts Diagram

Backpack Blower

Fan, Housings Parts Diagram

  • Title

5

Echo 90014606014

BOLT - 6X14

$0.99

$

Usually ships in 2-4 days

0

6

Echo 20012401111

GUARD, DEBRIS

$16.99

$

Usually ships in 2-4 days

0

7

Echo 20010500761

COVER, FAN - INNER -- ORANGE

$207.99

$

Usually ships in 2-4 days

0

8

Echo 90014206016

BOLT - 6X16

$0.99

$

Usually ships in 2-4 days

0

11

Echo 20001001110

FAN

$106.99

$

Usually ships in 2-4 days

0

12

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

13

Echo 36302903210

PLUG

$2.49

$

Usually ships in 2-4 days

0

14

Echo 90024205020

SCREW - 5X20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 7

0

15

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

16

Echo 20010700761

COVER, FAN - OUTER
(Superseded to 20010700762)

$241.99

$

Usually ships in 2-4 days

0

17

Echo 90053000005

NUT - 5 -- CAP

$0.99

$

In Stock, Qty 10

0

18

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

19

Echo 14571502260

BRACKET, MUFFLER COVER

$7.99

$

Usually ships in 2-4 days

0

20

Echo 21041601110

BOLT, ELBOW

$21.99

$

In Stock, only 1 left!

0

28

Echo 17812200761

MOUNT, THROTTLE LEVER

$20.99

$

In Stock, only 2 left!

0

29

Echo 89015711130

LABEL - STOP

$0.99

$

In Stock, Qty 7

0

30

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

31

Echo 16340004521

IGNITION SWITCH ASSY

$10.99

$

In Stock, only 2 left!

0

32

Echo 17812300760

BRACKET

$7.49

$

Usually ships in 2-4 days

0

33

Echo 17801000661

TRIGGER, THROTTLE

$6.49

$

In Stock, only 2 left!

0

34

Echo 90060200006

WASHER - 6

$0.99

$

In Stock, Qty 18

0

35

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, Qty 20+

0

36

Echo 90022006025

SCREW - 6X25

$0.99

$

In Stock, only 1 left!

0

37

Echo 89016800760

LABEL - CAUTION
(Superseded to 89016800860)

$

$

Not available

38

Echo 15062102260

LEAD

$4.49

$

In Stock, only 1 left!

0

39

Echo 17800100761

CABLE, THROTTLE

$11.99

$

Usually ships in 2-4 days

0

40

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

41

Echo 89017600760

LABEL - NOISE

$1.99

$

Usually ships in 2-4 days

0
