PB-400 E - Echo Backpack Blower (Type 1E) (SN: 001001 - 509500) Carburetor (06/96) Parts Diagram

Backpack Blower (Type 1E)

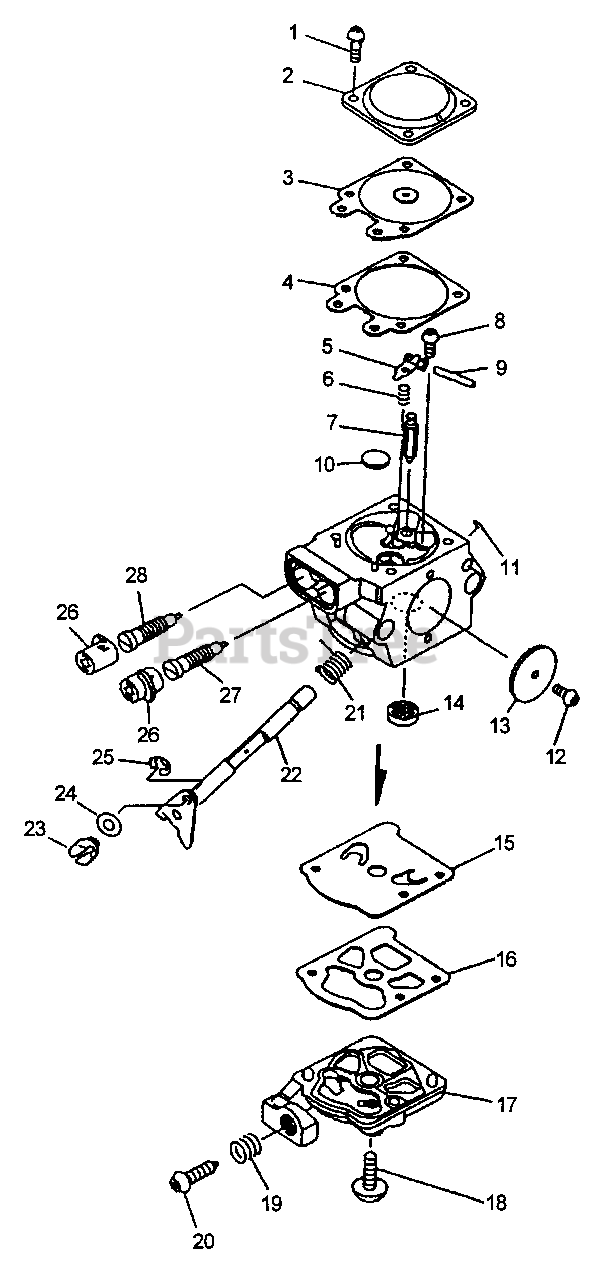

Carburetor (06/96) Parts Diagram

  • Title

Echo 12300002260

CARBURETOR WT-410
(Superseded to 12300002261)

Note: Includes ITEMS 1-28

$108.99

$

Usually ships in 2-4 days

0

1

Echo 12313002960

SCREW

$1.99

$

Usually ships in 2-4 days

0

2

Echo 12314203930

COVER, METERING

$4.99

$

In Stock, only 2 left!

0

3

------------------

DIAPHRAGM, METERING

Note: INCLUDED IN REPAIR KIT P/N 12310002260 & GASKET/DIAPHRAGM KIT P/N 12310137330

$

$

Not available

4

------------------

GASKET, METERING

Note: INCLUDED IN REPAIR KIT P/N 12310002260 & GASKET/DIAPHRAGM KIT P/N 12310137330

$

$

Not available

5

------------------

LEVER, METERING

Note: INCLUDED IN REPAIR KIT P/N 12310002260

$

$

Not available

6

------------------

SPRING, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12310002260

$

$

Not available

7

------------------

VALVE, INLET NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12310002260

$

$

Not available

8

------------------

SCREW, METERING LEVER PIN

Note: INCLUDED IN REPAIR KIT P/N 12310002260

$

$

Not available

9

------------------

PIN, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12310002260

$

$

Not available

10

------------------

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT P/N 12310002260

$

$

Not available

11

Echo 12312715030

RING, RETAINING

$0.99

$

In Stock, Qty 6

0

12

------------------

SCREW

Note: INCLUDED IN REPAIR KIT P/N 12310002260

$

$

Not available

13

Echo 12311603930

VALVE, THROTTLE

$2.49

$

In Stock, only 2 left!

0

14

------------------

STRAINER

Note: INCLUDED IN REPAIR KIT P/N 12310002260

$

$

Not available

15

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12310002260 & GASKET/DIAPHRAGM KIT P/N 12310137330

$

$

Not available

16

------------------

GASKET, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12310002260 & GASKET/DIAPHRAGM KIT P/N 12310137330

$

$

Not available

17

Echo 12312402260

COVER, PUMP

$8.99

$

Usually ships in 2-4 days

0

18

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

19

Echo 12313304260

SPRING, IDLE ADJUST

$7.49

$

In Stock, only 4 left!

0

20

Echo 12313404260

SCREW, IDLE ADJUST

$2.49

$

In Stock, only 2 left!

0

21

Echo 12311303930

SPRING, THROTTLE RETURN
(Superseded to 12311309660)

$1.49

$

In Stock, Qty 11

0

22

Echo 12311743130

SHAFT, THROTTLE

$9.99

$

Usually ships in 2-4 days

0

23

Echo 12317226030

SWIVEL

$2.49

$

Usually ships in 2-4 days

0

24

Echo 12317426030

WASHER
(Superseded to Discontinued)

$

$

Not available

25

Echo 12317307930

RING, RETAINING

$1.49

$

Usually ships in 2-4 days

0

26

Echo 12315139230

CAP, LIMITER

$1.99

$

In Stock, Qty 20+

0

27

Echo 12311802260

NEEDLE - LOW SPEED

$5.99

$

Usually ships in 2-4 days

0

28

Echo 12312039230

NEEDLE - HIGH SPEED
(Superseded to Discontinued)

$

$

Not available

Echo 12310002260

REPAIR KIT

$8.49

$

In Stock, only 2 left!

0

Echo 12310137330

DIAPHRAGM/GASKET KIT

$8.99

$

In Stock, only 2 left!

0
