PB-400 E - Echo Backpack Blower (Type 1E) (SN: 001001 - 509500) Exhaust, Fuel System, Intake (06/96) Parts Diagram

Backpack Blower (Type 1E)

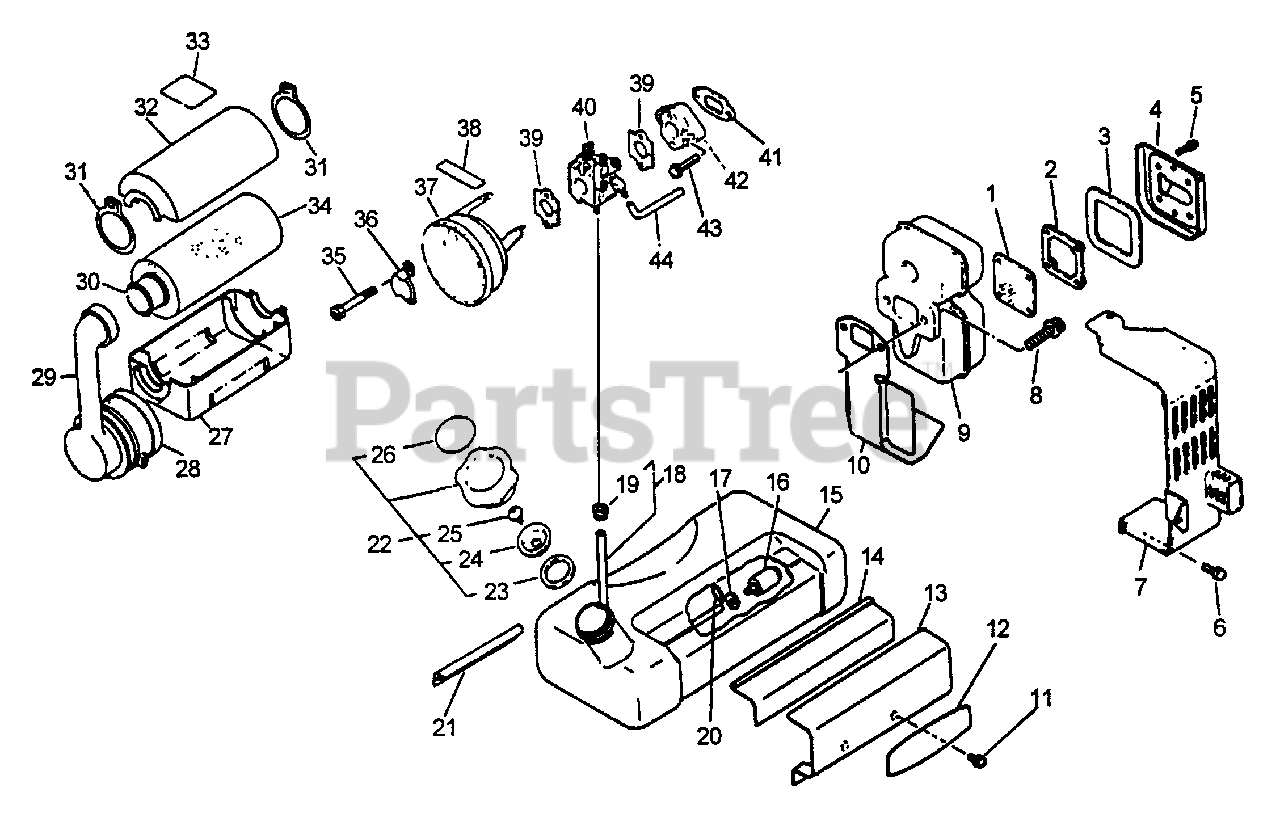

Exhaust, Fuel System, Intake (06/96) Parts Diagram

  • Title

1

Echo 14580100761

SCREEN, SPARK ARRESTOR

$8.99

$

Usually ships in 2-4 days

0

2

Echo 14588200761

RETAINER, SCREEN

$4.49

$

In Stock, only 1 left!

0

3

Echo 14586602261

GASKET, EXHAUST

$2.99

$

In Stock, only 1 left!

0

4

Echo 14586302261

GUIDE, EXHAUST
(Superseded to Discontinued)

$

$

Not available

5

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 15

0

6

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

7

Echo 14587100765

COVER, EXHAUST

$41.99

$

Usually ships in 2-4 days

0

8

Echo 90016206022

SCREW - 6X20
(Superseded to 90010506022)

$

$

Not available

9

Echo 14580600762

MUFFLER

$44.99

$

Usually ships in 2-4 days

0

10

Echo 14551002261

GASKET, EXHAUST

$13.99

$

Usually ships in 2-4 days

0

11

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

12

Echo 89013800760

LABEL - ECHO

$3.99

$

Usually ships in 2-4 days

0

13

Echo 13191002260

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

14

Echo 13192002260

CUSHION, FUEL TANK

$2.99

$

Usually ships in 2-4 days

0

15

Echo 13101002260

TANK, FUEL
(Superseded to 13101002261)

$24.99

$

Usually ships in 2-4 days

0

16

Echo 13120530830

FILTER, FUEL
(Superseded to 13120519830)

$9.49

$

In Stock, Qty 20+

0

17

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

18

Echo 13200700760

PIPE, FUEL - SPIRAL

Note: Includes ITEM 19

$5.99

$

In Stock, Qty 18

0

19

Echo 13211511131

GROMMET

$2.49

$

In Stock, Qty 20+

0

20

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

21

Echo 13192000760

CUSHION, FUEL TANK
(Superseded to 13100202260)

$

$

Not available

22

Echo 13160002260

CAP ASSY
(Superseded to 13100406610)

Note: INCLUDES ITEMS 23-26

$11.99

$

In Stock, Qty 19

0

23

Echo 13101604630

GASKET, CAP
(Superseded to 13101604631)

$3.49

$

In Stock, Qty 5

0

24

Echo 13101503331

HOLDER, VENT

$3.99

$

In Stock, only 1 left!

0

25

Echo 13131400330

VENT

$11.99

$

In Stock, Qty 5

0

26

Echo 89014706160

LABEL - FUEL MIX
(Superseded to Discontinued)

$

$

Not available

27

Echo 13031800762

CASE, AIR FILTER
(Superseded to 13031800763)

$15.99

$

Usually ships in 2-4 days

0

28

Echo 13071302260

CLAMP

$6.99

$

In Stock, only 1 left!

0

29

Echo 13071100761

ADAPTOR, INTAKE
(Superseded to 13071102260)

$44.99

$

In Stock, Qty 9

0

30

Echo 13031100761

FILTER, AIR

$6.99

$

Usually ships in 2-4 days

0

30

Echo 13030402260

AIR CLEANER ASSY
(Superseded to 13030402262)

Note: INCLUDES ITEMS 27-32 & 34

$100.99

$

Usually ships in 2-4 days

0

31

Echo 13034100760

CLAMP

$6.49

$

In Stock, Qty 11

0

32

Echo 13032600762

COVER, AIR FILTER
(Superseded to 13032600763)

$12.99

$

In Stock, only 1 left!

0

33

Echo 89016003360

LABEL - CAUTION
(Superseded to 89016009461)

$1.99

$

In Stock, Qty 20+

0

34

Echo 13031700760

FILTER, AIR

$41.99

$

In Stock, Qty 20+

0

35

Echo 90022005050

SCREW - 5X55

$0.99

$

Usually ships in 2-4 days

0

36

Echo 12901102260

PLATE, PREVENT

$4.49

$

In Stock, Qty 6

0

37

Echo 13030702360

CASE, AIR FILTER
(Superseded to 13030702361)

$23.99

$

In Stock, only 2 left!

0

38

Echo 89015800760

LABEL - CHOKE
(Superseded to X506000010)

$1.49

$

In Stock, only 3 left!

0

39

Echo 13001606232

GASKET, INTAKE

$0.99

$

In Stock, Qty 20+

0

40

Echo 12300002260

CARBURETOR WT-410
(Superseded to 12300002261)

$90.99

$

Usually ships in 2-4 days

0

41

Echo 13001000762

GASKET, INTAKE
(Superseded to 13001000763)

$1.49

$

In Stock, Qty 20+

0

42

Echo 13000700760

INSULATOR, INTAKE
(Superseded to Discontinued)

$

$

Not available

43

Echo 90024206025

SCREW - 6X25

$0.99

$

Usually ships in 2-4 days

0

44

Echo 13011000760

PIPE - IMPULSE
(Superseded to V471001880)

$1.99

$

In Stock, Qty 20+

0
