PB-400 E - Echo Backpack Blower (Type 1E) (SN: 001001 - 509500) Ignition, Starter (06/96) Parts Diagram

Backpack Blower (Type 1E)

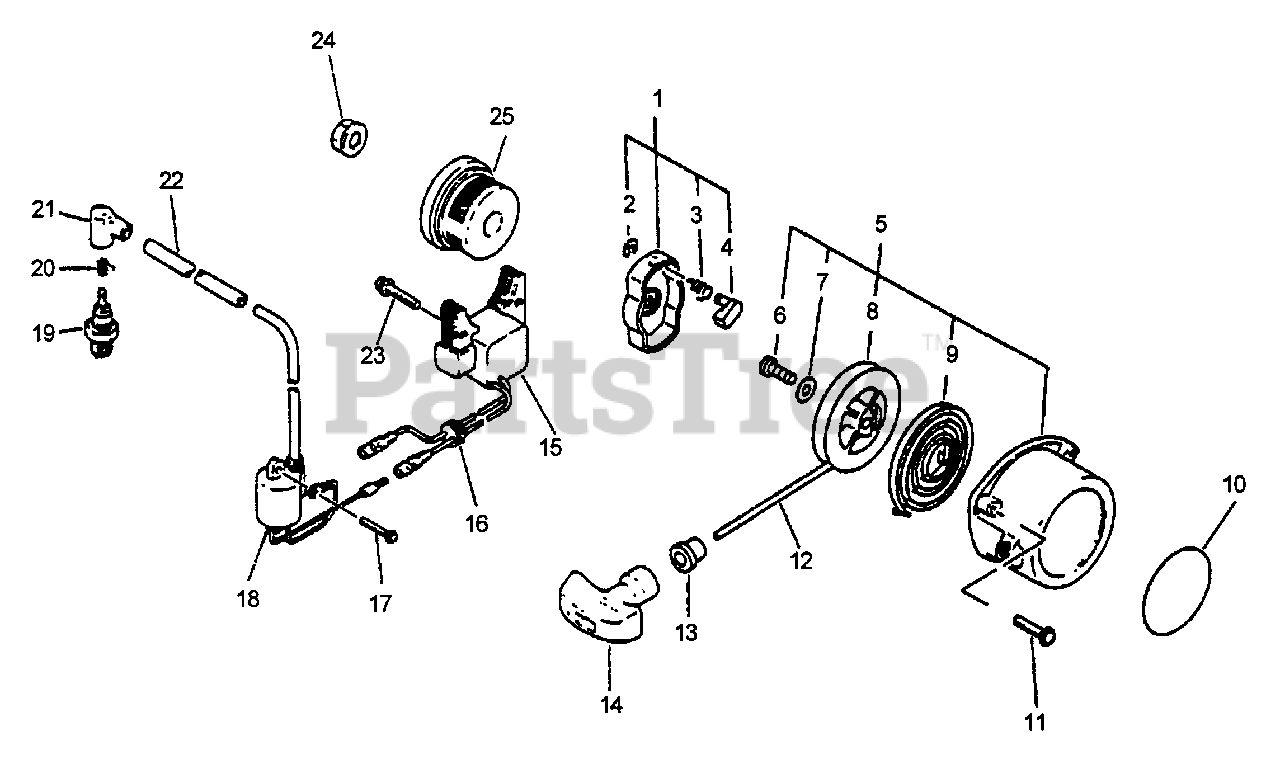

Ignition, Starter (06/96) Parts Diagram

  • Title

1

Echo 17720202110

STARTER PAWL ASSY

Note: INCLUDES ITEMS 2-4

$16.99

$

In Stock, only 2 left!

0

2

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

3

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, Qty 18

0

4

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 20+

0

5

Echo 17720002110

STARTER ASSY

Note: INCLUDES ITEMS 6-9, 12-14

$91.99

$

Usually ships in 2-4 days

0

6

Echo 17723640630

SCREW

$3.99

$

In Stock, Qty 14

0

7

Echo 17721441030

WASHER

$1.49

$

Usually ships in 2-4 days

0

8

Echo 17721543130

REEL, ROPE

$15.99

$

In Stock, only 1 left!

0

9

Echo 17722040630

SPRING, REWIND

$14.99

$

In Stock, Qty 8

0

10

Echo 89011849330

LABEL - ECHO

$6.49

$

In Stock, Qty 10

0

11

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

12

------------------

ROPE, STARTER - 4X950

Note: RePower BULK OPTION: 99944450000

$

$

Not available

13

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 19

0

14

Echo 17722811120

GRIP, STARTER

$5.99

$

In Stock, only 1 left!

0

15

Echo 15660102911

COIL, IGNITION
(Superseded to 15660102912)

$103.99

$

In Stock, only 4 left!

0

16

Echo 15061402910

GROMMET

$0.99

$

In Stock, only 1 left!

0

17

Echo 90024204025

SCREW - 4X25

$0.99

$

In Stock, only 2 left!

0

18

Echo 15662602111

COIL, IGNITION

$90.99

$

In Stock, only 1 left!

0

19

Echo 15901000330

SPARK PLUG -- BM-6A

$3.49

$

Usually ships in 2-4 days

0

20

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.49

$

In Stock, Qty 20+

0

21

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

22

Echo 15011101110

TUBE

$0.99

$

In Stock, only 1 left!

0

23

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

24

Echo 90051900010

NUT - 10 -- FLANGE

$1.99

$

In Stock, Qty 12

0

25

Echo 15680002111

FLYWHEEL

$110.99

$

Usually ships in 2-4 days

0

Echo 99944400050

BULK ROPE
(Superseded to 99944450000)

$35.99

$

In Stock, Qty 20+

0
