PB-400 E - Echo Backpack Blower (Type 2E) (SN: 509501 - 999999) Fan Case Parts Diagram

Backpack Blower (Type 2E)

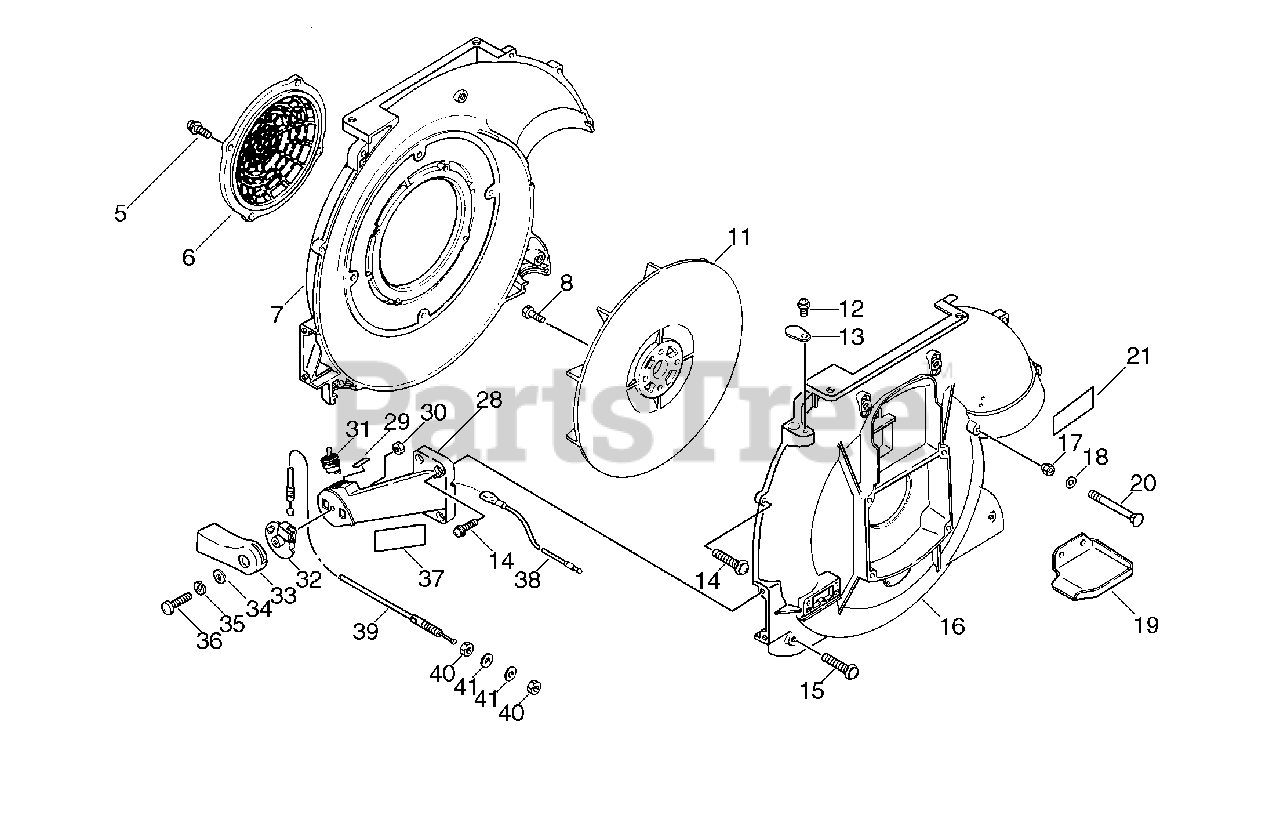

Fan Case Parts Diagram

  • Title

5

Echo 90014606014

BOLT

$0.99

$

Usually ships in 2-4 days

0

6

Echo 200124-01111

SHIELD, DEBRIS

$17.99

$

Usually ships in 2-4 days

0

7

Echo 20010500761

COVER, FAN - INNER -- ORANGE

$223.99

$

Usually ships in 2-4 days

0

8

Echo 90014205016

BOLT

$0.99

$

Usually ships in 2-4 days

0

11

Echo 20001001110

FAN

$115.99

$

Usually ships in 2-4 days

0

12

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

13

Echo 36302903210

PLUG

$2.99

$

Usually ships in 2-4 days

0

14

Echo 900242-05020

SCREW 5×20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 7

0

15

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

16

Echo 20010700762

COVER, FAN - OUTER

$260.99

$

Usually ships in 2-4 days

0

17

Echo 90053000005

NUT - 5 -- CAP

$0.99

$

In Stock, Qty 9

0

18

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

19

Echo 14571502260

BRACKET, MUFFLER COVER

$8.49

$

Usually ships in 2-4 days

0

20

Echo 21041601110

BOLT

$23.99

$

Usually ships in 2-4 days

0

21

Echo X508000020

LABEL, NOISE
(Superseded to Discontinued)

$

$

Not available

28

Echo 17812200761

MOUNT, THROTTLE LEVER

$21.99

$

Usually ships in 2-4 days

0

29

Echo 89015711130

LABEL, ON-OFF

$0.99

$

In Stock, Qty 6

0

30

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

31

Echo 16340004521

IGNITION SWITCH ASSY

$11.99

$

In Stock, only 2 left!

0

32

Echo 17812300760

BRACKET

$7.99

$

Usually ships in 2-4 days

0

33

Echo 17801000661

CONTROL, THROTTLE

$6.99

$

In Stock, only 2 left!

0

34

Echo 900602-00006

WASHER 6

$0.99

$

In Stock, Qty 18

0

35

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 15

0

36

Echo 90022006025

SCREW 6×25

$0.99

$

Usually ships in 2-4 days

0

37

Echo 89016800760

LABEL - CAUTION
(Superseded to 89016800860)

$

$

Not available

38

Echo 15062102260

LEAD

$4.49

$

Usually ships in 2-4 days

0

39

Echo 17800102360

CABLE, THROTTLE

$14.99

$

Usually ships in 2-4 days

0

40

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

41

Echo 90060300006

WASHER 6.5×13×1

$0.99

$

In Stock, Qty 20+

0
