PB-400 - Echo Backpack Blower (SN: 001001 - 054522) Carburetor Parts Diagram

Backpack blower with 34x42.5x45.5 cm (13.4x16.7x17.9 in) body, 10.2 kg (22.5 lb). Powered by an air-cooled 2-stroke 40 cc single-cylinder engine, Walbro WA carburetor, flywheel magneto ignition.

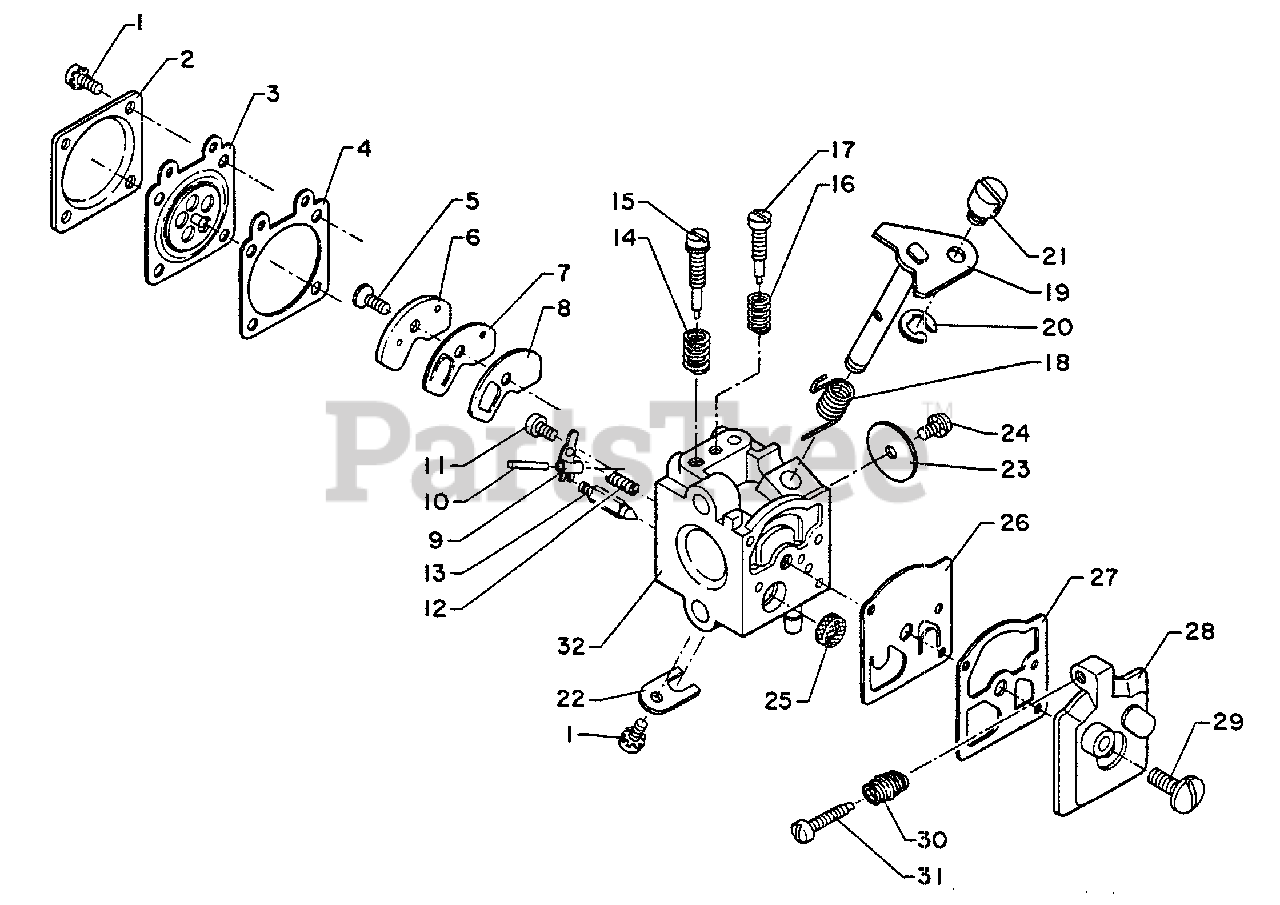

Carburetor Parts Diagram

  • Title

Echo 12300000760

CARBURETOR - WA-55
(Superseded to 12300000761)

$175.99

$

In Stock, Qty 5

0

1

SCREW

Note: Use Kwik Kit, P/N 12310004930

$

$

Not available

2

Echo 12314203930

COVER, METERING DIAPHRAGM

$4.99

$

In Stock, only 2 left!

0

3

DIAPHRAGM, METERING

Note: Use Kwik Kit, P/N 12310004930 & Diaphragm Kit, P/N 12310103930

$

$

Not available

4

GASKET, METERING

Note: Use Kwik Kit, P/N 12310004930 & Diaphragm Kit, P/N 12310103930

$

$

Not available

5

SCREW, CIRCUIT PLATE

Note: Use Kwik Kit, P/N 12310004930

$

$

Not available

6

Echo 12316603930

PLATE, CIRCUIT
(Superseded to Discontinued)

$

$

Not available

------------------

DIAPHRAGM, CIRCUIT PLATE

Note: Use Kwik Kit, P/N 12310004930 & Diaphragm Kit, P/N 12310103930

$

$

Not available

8

GASKET, CIRCUIT PLATE

Note: Use Kwik Kit, P/N 12310004930 & Diaphragm Kit, P/N 12310103930

$

$

Not available

9

LEVER, METERING

Note: Use Kwik Kit, P/N 12310004930

$

$

Not available

10

PIN, METERING LEVER

Note: Use Kwik Kit, P/N 12310004930

$

$

Not available

11

SCREW, METERING LEVER PIN

Note: Use Kwik Kit, P/N 12310004930

$

$

Not available

12

SPRING, METERING LEVER

Note: Use Kwik Kit, P/N 12310004930

$

$

Not available

13

VALVE, INLET NEEDLE

Note: Use Kwik Kit, P/N 12310004930

$

$

Not available

------------------

SPRING, NEEDLE

Note: Use Kwik Kit, P/N 12310004930

$

$

Not available

15

Echo 12312000760

NEEDLE, HIGH SPEED

$5.49

$

Usually ships in 2-4 days

0

------------------

SPRING, NEEDLE

Note: Use Kwik Kit, P/N 12310004930

$

$

Not available

17

Echo 12311804420

NEEDLE, IDLE

$4.99

$

Usually ships in 2-4 days

0

18

Echo 12311303930

SPRING, THROTTLE RETURN
(Superseded to 12311309660)

$1.49

$

In Stock, Qty 11

0

19

Echo 12311705020

SHAFT, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

20

Echo 12312710630

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

21

Echo 12317204320

SWIVEL

$2.49

$

Usually ships in 2-4 days

0

22

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

23

Echo 12311603930

VALVE, THROTTLE

$2.49

$

In Stock, only 2 left!

0

24

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 7

0

25

STRAINER

Note: Use Kwik Kit, P/N 12310004930

$

$

Not available

26

DIAPHRAGM, PUMP

Note: Use Kwik Kit, P/N 12310004930 & Diaphragm Kit, P/N 12310103930

$

$

Not available

27

GASKET, PUMP

Note: Use Kwik Kit, P/N 12310004930 & Diaphragm Kit, P/N 12310103930

$

$

Not available

28

Echo 12312400760

COVER, PUMP

$10.99

$

Usually ships in 2-4 days

0

29

Echo 12311003930

SCREW

$0.99

$

Usually ships in 2-4 days

0

30

Echo 12313311130

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

31

Echo 12313406530

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

32

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

Echo 12310004930

REPAIR KIT, CARBURETOR

$20.99

$

In Stock, Qty 8

0

Echo 12310103930

GASKET / DIAPHRAGM KIT

$8.49

$

In Stock, only 2 left!

0
