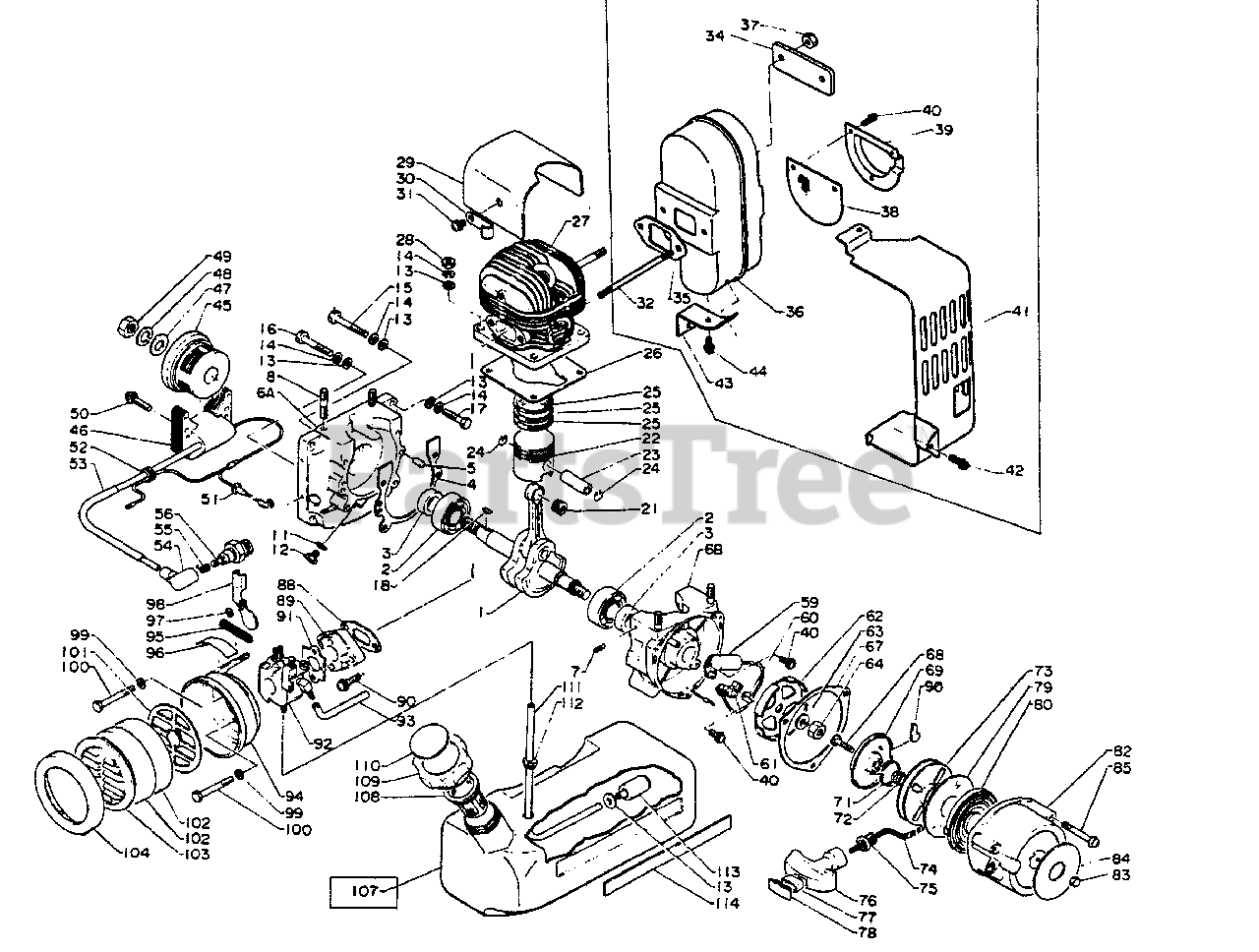

PB-400 - Echo Backpack Blower (SN: 001001 - 054522) Power Head Parts Diagram

Backpack Blower

Power Head Parts Diagram

  • Title

1

Echo 10010001110

CRANKSHAFT ASSY
(Superseded to 10010001111)

$

$

Not available

2

Echo 90081036202

BEARING, BALL - 6202

$11.99

$

In Stock, only 2 left!

0

3

Echo 10021300310

SEAL, OIL

$6.49

$

In Stock, Qty 9

0

4

Echo 88900002260

GASKET, CRANKCASE
(Superseded to 88900002261)

Note: Use Gasket Kit, P/N 88900002260

$

$

Not available

5

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

6

Echo 10020000760

CRANKCASE KIT
(Superseded to Discontinued)

Note: Consisting of 6A, 6B, and 7

$

$

Not available

6A

Echo 10020000760

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 6, Crankcase set, P/N 10020000760

$

$

Not available

7

Echo 13011312330

CONNECTOR

$1.49

$

Usually ships in 2-4 days

0

8

Echo 10025400130

STUD

$1.99

$

Usually ships in 2-4 days

0

11

Echo 13131000230

GASKET

$0.99

$

Usually ships in 2-4 days

0

12

Echo 10051000310

BOLT, DRAIN
(Superseded to Discontinued)

$

$

Not available

13

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

14

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, Qty 16

0

15

Echo 10024401110

BOLT
(Superseded to 10024401111)

$1.49

$

Usually ships in 2-4 days

0

16

Echo 10024501110

BOLT
(Superseded to Discontinued)

$

$

Not available

17

Echo 90010006025

BOLT - 6X25

$0.99

$

In Stock, Qty 10

0

18

Echo 10014200310

KEY

$1.99

$

Usually ships in 2-4 days

0

21

Echo 10001212330

BEARING, NEEDLE
(Superseded to 10001212331)

$13.99

$

In Stock, only 2 left!

0

22

Echo 10001001110

PISTON
(Superseded to 10001002410)

$

$

Not available

23

Echo 10001300410

PIN, PISTON

$8.49

$

Usually ships in 2-4 days

0

24

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 10

0

25

Echo 10001101110

RING, PISTON

$8.99

$

Usually ships in 2-4 days

0

26

Echo 10101001110

GASKET, CYLINDER
(Superseded to 10101001111)

$

$

Not available

27

Echo 10100000760

CYLINDER
(Superseded to 10100000761)

$210.99

$

Usually ships in 2-4 days

0

28

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

29

Echo 10151401110

SHIELD, CYLINDER

$10.99

$

Usually ships in 2-4 days

0

30

Echo 15911001110

CLAMP

$1.99

$

Usually ships in 2-4 days

0

31

Echo 90010006010

BOLT - 6X10

$0.99

$

In Stock, only 1 left!

0

32

Echo 10101400760

STUD
(Superseded to 10101400761)

$

$

Not available

34

Echo 14564200762

WASHER

$3.99

$

Usually ships in 2-4 days

0

35

Echo 14551001110

GASKET, EXHAUST
(Superseded to 14551001111)

$

$

Not available

Echo 14560000761

MUFFLER ASSY
(Superseded to 14560400761)

Note: Consisting of 36, 39, and 40

$95.99

$

Usually ships in 2-4 days

0

36

Echo 14580600761

MUFFLER
(Superseded to 14560400761)

$95.99

$

Usually ships in 2-4 days

0

39

Echo 14586300760

GUIDE, EXHAUST
(Superseded to Discontinued)

$

$

Not available

40

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

Echo 14580000761

MUFFLER ASSY
(Superseded to 14560400761)

Note: Includes ITEMS 36, 38-40

$95.99

$

Usually ships in 2-4 days

0

38

Echo 14586200760

SCREEN, SPARK ARRESTOR
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

37

Echo 14571000230

LOCKNUT - 6
(Superseded to 90056000006)

$1.49

$

In Stock, Qty 20+

0

40

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

41

Echo 14587100762

COVER, EXHAUST
(Superseded to 14587100763)

$

$

Not available

42

Echo 90024205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

43

Echo 14571100760

Supporter

$2.99

$

Usually ships in 2-4 days

0

44

Echo 90024005010

SCREW - 5X10

$0.99

$

Usually ships in 2-4 days

0

45

Echo 15020001110

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

46

Echo 15012600760

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

47

Echo 10013601110

WASHER

$1.99

$

Usually ships in 2-4 days

0

48

Echo 10013301110

LOCKWASHER

$0.99

$

Usually ships in 2-4 days

0

49

Echo 10013401110

NUT

$2.49

$

Usually ships in 2-4 days

0

50

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

51

Echo 15011400310

GROMMET

$0.99

$

Usually ships in 2-4 days

0

52

Echo 15111204630

GROMMET

$0.99

$

In Stock, Qty 8

0

53

Echo 15011101110

TUBE

$0.99

$

Usually ships in 2-4 days

0

54

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, only 2 left!

0

55

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

56

Echo 15901000330

SPARK PLUG -- BM-6A

$

$

Not available

59

Echo 15012700910

CONDENSER

$22.99

$

Usually ships in 2-4 days

0

60

Echo 15911201110

CLAMP

$0.99

$

Usually ships in 2-4 days

0

61

Echo 15010100910

CONTACT POINT SET
(Superseded to Discontinued)

$

$

Not available

62

Echo 17721000910

CATCHER, PAWL

$8.99

$

Usually ships in 2-4 days

0

63

Echo 17501500120

WASHER, CLUTCH

$2.49

$

Usually ships in 2-4 days

0

64

Echo 10014700910

NUT

$1.49

$

Usually ships in 2-4 days

0

67

Echo 10061501110

GASKET, STARTER

$1.99

$

In Stock, only 1 left!

0

Echo 17720001110

STARTER ASSY
(Superseded to Discontinued)

Note: Consisting of 68 thru 80, 82, and 83

$

$

Not available

68

Echo 17723601110

SCREW

$4.99

$

Usually ships in 2-4 days

0

69

Echo 17721100910

PLATE, FRICTION

$7.99

$

In Stock, only 1 left!

0

70

Echo 17721800910

PAWL, STARTER
(Superseded to Discontinued)

$

$

Not available

71

Echo 17723400910

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

72

Echo 17723300910

SPRING
(Superseded to Discontinued)

$

$

Not available

73

Echo 17721501110

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

74

Echo 17722601110

ROPE, STARTER - 4X880

Note: RePower BULK OPTION: 99944450000

$6.99

$

Usually ships in 2-4 days

0

75

Echo 17722701220

GUIDE, ROPE
(Superseded to 17722705530)

$4.99

$

In Stock, Qty 10

0

76

Echo 17722801110

GRIP, STARTER

$8.99

$

In Stock, only 3 left!

0

77

Echo 17722900220

RING, RETAINING

$2.49

$

Usually ships in 2-4 days

0

78

Echo 17724401110

CAP

$3.49

$

Usually ships in 2-4 days

0

79

Echo 17723500910

PLATE, STARTER

$5.99

$

Usually ships in 2-4 days

0

80

Echo 17722001110

SPRING, REWIND
(Superseded to Discontinued)

$

$

Not available

82

Echo 17723201110

CASE, STARTER

$56.99

$

Usually ships in 2-4 days

0

83

Echo 17723701110

NUT - 5 -- CAP
(Superseded to 90053000005)

$0.99

$

In Stock, Qty 10

0

84

Echo 89011849330

LABEL - ECHO

$7.49

$

In Stock, only 1 left!

0

85

Echo 90024205042

SCREW - 5X40

$0.99

$

In Stock, only 4 left!

0

88

Echo 13001601110

GASKET, INTAKE

$0.99

$

In Stock, only 3 left!

0

89

Echo 13000700760

INSULATOR, INTAKE
(Superseded to Discontinued)

$

$

Not available

90

Echo 90024206025

SCREW - 6X25

$0.99

$

Usually ships in 2-4 days

0

91

Echo 13001606230

GASKET, INTAKE
(Superseded to 13001606231)

$0.99

$

In Stock, Qty 9

0

92

Echo 12300000760

CARBURETOR WA-55
(Superseded to 12300000761)

$175.99

$

In Stock, Qty 5

0

93

Echo 13011000760

PIPE - IMPULSE
(Superseded to V471001880)

$1.99

$

In Stock, Qty 20+

0

Echo 13030000760

AIR CLEANER ASSY
(Superseded to 13030000763)

Note: Consisting of 94, 95, 101, thru 104

$60.99

$

Usually ships in 2-4 days

0

94

Echo 13030100760

CASE, AIR FILTER
(Superseded to 13080000761)

Note: Including 95

$

$

Not available

95

Echo 17881000760

GROMMET
(Superseded to 17881004920)

$1.99

$

Usually ships in 2-4 days

0

101

Echo 13031900760

RETAINER, AIR FILTER

$2.99

$

Usually ships in 2-4 days

0

102

Echo 13031000760

FILTER, AIR

$4.49

$

In Stock, Qty 18

0

103

Echo 13031304620

COVER, AIR FILTER

$3.99

$

In Stock, only 2 left!

0

104

Echo 13034104620

COVER, AIR FILTER

$7.49

$

In Stock, only 2 left!

0

96

Echo 89015800760

LABEL - CHOKE
(Superseded to X506000010)

$1.49

$

In Stock, only 1 left!

0

97

Echo 17851603930

WASHER
(Superseded to 17851600830)

$0.99

$

In Stock, Qty 20+

0

98

Echo 17851500760

SHUTTER, CHOKE
(Superseded to Discontinued)

$

$

Not available

99

Echo 10024702830

WASHER - 5
(Superseded to Discontinued)

$

$

Not available

100

Echo 13002100760

BOLT
(Superseded to 13002100761)

$0.99

$

Usually ships in 2-4 days

0

107

Echo 13101000760

TANK, FUEL
(Superseded to 13101000761)

$

$

Not available

108

Echo 13111000310

STRAINER
(Superseded to Discontinued)

$

$

Not available

109

Echo 13100105330

CAP ASSY
(Superseded to 13160000760)

$13.99

$

In Stock, only 3 left!

0

110

Echo 89014710230

LABEL - FUEL MIX
(Superseded to 89015412730)

$

$

Not available

111

Echo 13200700760

PIPE, FUEL - SPIRAL

$6.99

$

In Stock, Qty 5

0

112

Echo 13211511130

GROMMET
(Superseded to 13211511131)

$2.49

$

In Stock, Qty 12

0

113

Echo 13120505230

FILTER, FUEL
(Superseded to 13120002830)

$9.99

$

In Stock, Qty 20+

0

114

Echo 89013500760

LABEL - NAME
(Superseded to Discontinued)

$

$

Not available
