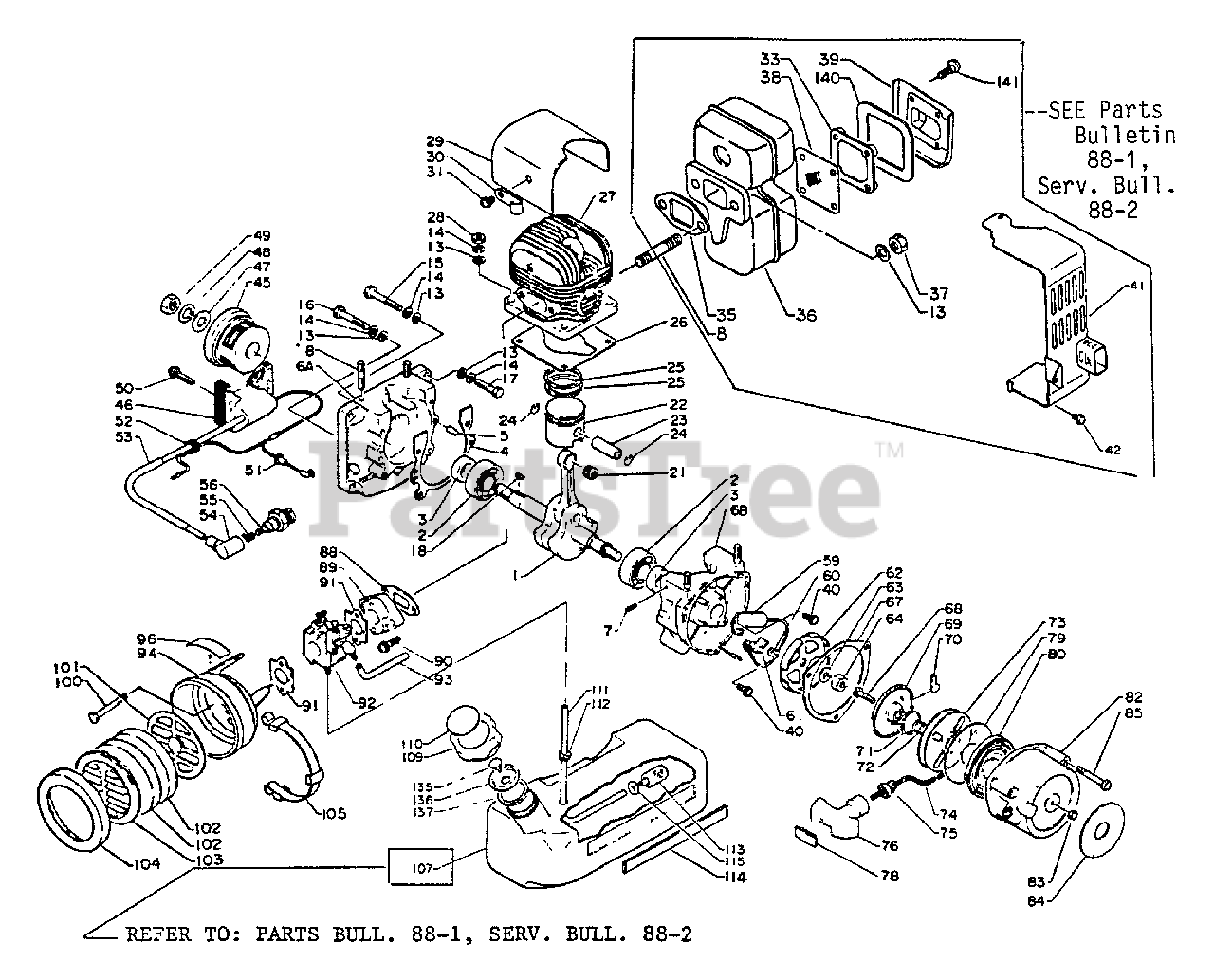

PB-400 - Echo Backpack Blower (SN: 054523 - 999999) Engine,Intake,Exhaust,Crankcase,AirCleaner,Strtr,Ignition,Exh,Fuel Sys Parts Diagram

Backpack blower with 34x42.5x45.5 cm (13.4x16.7x17.9 in) body, 10.2 kg (22.5 lb). Powered by an air-cooled 2-stroke 40 cc single-cylinder engine, Walbro WA carburetor, flywheel magneto ignition.

Engine,Intake,Exhaust,Crankcase,AirCleaner,Strtr,Ignition,Exh,Fuel Sys Parts Diagram

  • Title

1

Echo 10010001110

CRANKSHAFT ASSY
(Superseded to 10010001111)

$

$

Not available

2

Echo 90081036202

BEARING, BALL 6202

$11.99

$

In Stock, Qty 12

0

3

Echo 100213-00310

SEAL, OIL

$6.49

$

In Stock, Qty 19

0

4

GASKET, CRANKCASE

Note: Use Gasket Kit

$

$

Not available

5

Echo 10021502830

PIN, LOCATING 5×10

$0.99

$

Usually ships in 2-4 days

0

6

Echo 10020000760

CRANKCASE KIT
(Superseded to Discontinued)

Note: Consists of 6A, 6B and 7

$

$

Not available

6A

Echo 10020000760

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 6, Crankcase set, P/N 10020000760

$

$

Not available

6B

Echo 10020000760

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 6, Crankcase set, P/N 10020000760

$

$

Not available

7

Echo 13011312330

CONNECTOR

$1.49

$

Usually ships in 2-4 days

0

8

Echo 10025400130

STUD

$1.99

$

Usually ships in 2-4 days

0

13

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

14

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 9

0

15

Echo 10024401110

BOLT
(Superseded to 10024401111)

$1.49

$

Usually ships in 2-4 days

0

16

Echo 10024401110

BOLT
(Superseded to 10024401111)

$1.49

$

Usually ships in 2-4 days

0

17

Echo 90010006025

BOLT 6×25

$0.99

$

In Stock, Qty 20+

0

18

Echo 100142-00310

KEY

$1.99

$

Usually ships in 2-4 days

0

21

Echo 100012-12330

BEARING, NEEDLE
(Superseded to 10001212331)

$13.99

$

In Stock, only 1 left!

0

22

Echo 10001002410

PISTON
(Superseded to 10000002410)

$

$

Not available

23

Echo 100013-00410

PIN, PISTON

$8.49

$

Usually ships in 2-4 days

0

24

Echo 100015-00120

RING, SNAP 8

$0.99

$

In Stock, Qty 10

0

25

Echo 10001101110

RING, PISTON

$8.99

$

Usually ships in 2-4 days

0

26

Echo 10101003461

GASKET, CYLINDER
(Superseded to Discontinued)

$

$

Not available

27

Echo 10100000760

CYLINDER
(Superseded to 10100000761)

$210.99

$

Usually ships in 2-4 days

0

28

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

29

Echo 10151401110

COVER, CYLINDER

$10.99

$

Usually ships in 2-4 days

0

30

Echo 15911001110

CLIP, CORD

$1.99

$

Usually ships in 2-4 days

0

31

Echo 90010006010

BOLT 6×10

$0.99

$

In Stock, only 1 left!

0

33

Echo 14588200761

SEAT, SCREEN

$4.99

$

Usually ships in 2-4 days

0

35

Echo 14551000761

GASKET, EXHAUST
(Superseded to 14551000762)

$

$

Not available

36

Echo 14580600762

MUFFLER

$53.99

$

Usually ships in 2-4 days

0

37

Echo 145710-00230

LOCKNUT - 6
(Superseded to 90056000006)

$1.49

$

In Stock, Qty 20+

0

38

Echo 14586200761

SCREEN, SPARK ARRESTER
(Superseded to 14580100760)

$10.99

$

Usually ships in 2-4 days

0

39

Echo 14586300763

GUIDE, EXHAUST
(Superseded to 14586302260)

$

$

Not available

40

Echo 90024244010

SCREW - 4×10

$

$

Currently unavailable

41

Echo 14587100763

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

42

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

45

Echo 15020001110

FLYWHEEL
(Superseded to Discontinued)

Note: Optional C. D. I. Kit; See Parts Bull. 88-12P.

$

$

Not available

46

Echo 15012600760

COIL, IGNITION
(Superseded to Discontinued)

Note: Optional C. D. I. Kit; See Parts Bull. 88-12P.

$

$

Not available

47

Echo 10013601110

WASHER

$1.99

$

Usually ships in 2-4 days

0

48

Echo 10013301110

WASHER, SPRING

$0.99

$

Usually ships in 2-4 days

0

49

Echo 10013401110

NUT

$2.49

$

Usually ships in 2-4 days

0

50

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

51

Echo 15011400310

GROMMET

$0.99

$

Usually ships in 2-4 days

0

52

Echo 15111204630

GROMMET

$0.99

$

In Stock, only 3 left!

0

53

Echo 15011101110

TUBE, INSULATOR

$0.99

$

Usually ships in 2-4 days

0

54

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 9

0

55

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

56

Echo 159010-00330

SPARK PLUG - BM6A
(Superseded to Discontinued)

$

$

Not available

59

Echo 15012700910

CONDENSER

Note: Optional C. D. I. Kit; See Parts Bull. 88-12P.

$22.99

$

Usually ships in 2-4 days

0

60

Echo 15911201110

CLIP, CORD

$0.99

$

Usually ships in 2-4 days

0

61

Echo 15010100910

CONTACT POINT SET
(Superseded to Discontinued)

Note: Optional C. D. I. Kit; See Parts Bull. 88-12P.

$

$

Not available

62

Echo 17721000910

PAWL CATCHER

$8.99

$

Usually ships in 2-4 days

0

63

Echo 17501500120

WASHER, CLUTCH

$2.49

$

Usually ships in 2-4 days

0

64

Echo 10014700910

NUT C-R

$1.49

$

Usually ships in 2-4 days

0

67

Echo 10061501110

GASKET, STARTER

$1.99

$

In Stock, only 1 left!

0

Echo 17720001110

STARTER ASSY, RECOIL
(Superseded to Discontinued)

Note: Consists of 68 thru 80, 82 and 83

$

$

Not available

68

Echo 17723601110

SCREW

$4.99

$

Usually ships in 2-4 days

0

69

Echo 17721100910

PLATE, FRICTION

$7.99

$

In Stock, only 1 left!

0

70

Echo 17721800910

RATCHET
(Superseded to Discontinued)

$

$

Not available

71

Echo 17723400910

SPRING
(Superseded to Discontinued)

$

$

Not available

72

Echo 17723300910

SPRING
(Superseded to Discontinued)

$

$

Not available

73

Echo 17721501110

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

74

Echo 17722601110

ROPE, STARTER 4.0×880

Note: RePower BULK OPTION: 99944450000

$6.99

$

Usually ships in 2-4 days

0

75

Echo 17722705530

GUIDE, ROPE

$4.99

$

In Stock, Qty 10

0

76

Echo 17722801110

GRIP, STARTER

$8.99

$

In Stock, only 3 left!

0

78

Echo 17724401110

COVER, HANDLE

$3.49

$

Usually ships in 2-4 days

0

79

Echo 17723500910

PLATE, STARTER

$5.99

$

Usually ships in 2-4 days

0

80

Echo 17722001110

SPRING, RECOIL
(Superseded to Discontinued)

$

$

Not available

82

Echo 17723201110

CASE, STARTER

$56.99

$

Usually ships in 2-4 days

0

83

Echo 17723701110

NUT - 5 -- CAP
(Superseded to 90053000005)

$0.99

$

In Stock, Qty 9

0

84

Echo 89011849330

LABEL, ECHO

$7.49

$

In Stock, Qty 7

0

85

Echo 90024205042

SCREW 5×42

$0.99

$

In Stock, only 4 left!

0

88

Echo 13001000760

GASKET, INTAKE
(Superseded to 13001000761)

$1.99

$

In Stock, Qty 16

0

89

Echo 13000700760

INSULATOR
(Superseded to Discontinued)

$

$

Not available

90

Echo 90024206025

SCREW 6×25

$0.99

$

Usually ships in 2-4 days

0

91

Echo 13001606230

GASKET, INTAKE
(Superseded to 13001606231)

$0.99

$

In Stock, Qty 20+

0

92

Echo 12300000760

CARBURETOR - WA-55
(Superseded to 12300000761)

$175.99

$

In Stock, Qty 5

0

93

Echo 13011000760

PIPE
(Superseded to V471001880)

$1.99

$

In Stock, Qty 19

0

Echo 13030000762

AIR FILTER ASSY
(Superseded to 13030000763)

Note: Consists of 94, 101 thru 105

$60.99

$

Usually ships in 2-4 days

0

94

Echo 13030700761

CASE, AIR FILTER
(Superseded to 13030700762)

$26.99

$

Usually ships in 2-4 days

0

101

Echo 13031900760

RETAINER, AIR FILTER

$2.99

$

Usually ships in 2-4 days

0

102

Echo 13031000760

FILTER, AIR

$4.49

$

In Stock, Qty 15

0

103

Echo 13031304620

COVER, AIR FILTER

$3.99

$

In Stock, only 2 left!

0

104

Echo 13034104620

COVER, AIR FILTER

$7.49

$

In Stock, only 2 left!

0

105

Echo 13042500761

CLAMP

$12.99

$

Usually ships in 2-4 days

0

96

Echo 89015800760

LABEL - CHOKE
(Superseded to X506000010)

$1.49

$

In Stock, only 2 left!

0

100

Echo 13002100760

BOLT
(Superseded to 13002100761)

$0.99

$

Usually ships in 2-4 days

0

107

Echo 13101000760

TANK, FUEL
(Superseded to 13101000761)

$

$

Not available

Echo 13160000760

CAP ASSY
(Superseded to 13160002260)

Note: Consists of 109, 110, 135 thru 137

$13.99

$

In Stock, Qty 12

0

109

Echo 13101705330

CAP
(Superseded to 13160001110)

$

$

Not available

110

Echo 89014710230

LABEL - FUEL MIX
(Superseded to 89015412730)

$

$

Not available

135

Echo 13131400330

VALVE, CHECK

$13.99

$

In Stock, only 1 left!

0

136

Echo 13101503331

HOLDER, VENT

$4.49

$

Usually ships in 2-4 days

0

137

Echo 13101604630

GASKET
(Superseded to 13101604631)

$3.99

$

In Stock, only 4 left!

0

110

Echo 89014710230

LABEL - FUEL MIX
(Superseded to 89015412730)

$

$

Not available

111

Echo 13200700760

PIPE, FUEL W/GROMMET 3×5×250L

$6.99

$

In Stock, only 2 left!

0

112

Echo 13211511130

GROMMET
(Superseded to 13211511131)

$2.49

$

In Stock, Qty 8

0

113

Echo 13120500830

FILTER, FUEL
(Superseded to 13120514930)

$9.99

$

In Stock, Qty 20+

0

114

Echo 89013500760

LABEL - NAME
(Superseded to Discontinued)

$

$

Not available

115

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

140

Echo 14586600760

GASKET
(Superseded to Discontinued)

$

$

Not available

141

Echo 900242-04014

SCREW 4×14

$0.99

$

In Stock, Qty 5

0
