PB-403 T - Echo Backpack Blower (SN: 03001001 - 03999999) Exhaust Parts Diagram

Backpack blower PB-403T - 325 mm x 515 mm x 520 mm, 9.76 kg dry. 44 cc 2-stroke single-cylinder, 40 mm bore, 35 mm stroke, air-cooled, Zama carburetor with primer, magneto ignition, NGK BPM-8Y spark plug. 10.8 cm (4.25 in) fan.

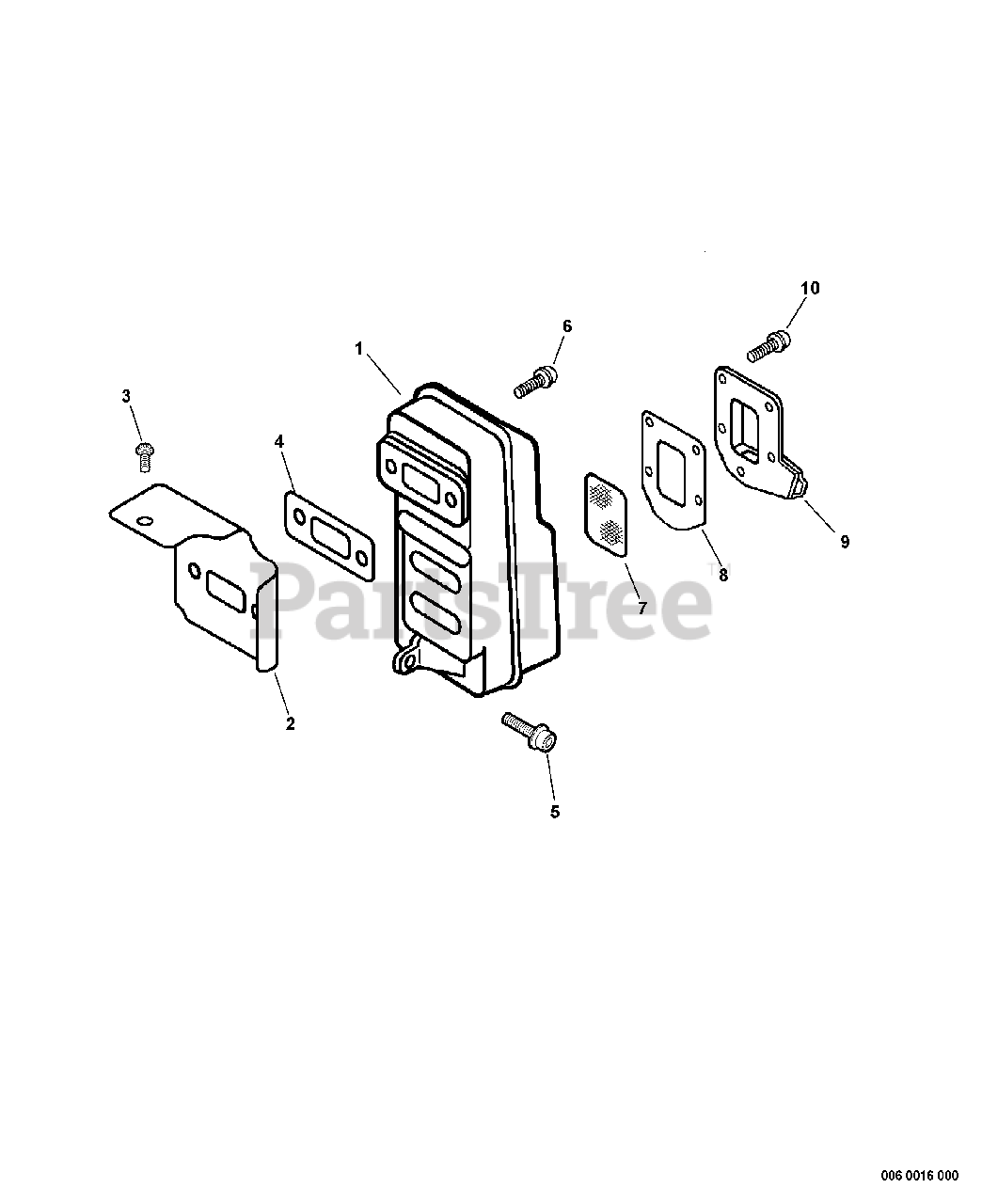

Exhaust Parts Diagram

  • Title

1

Echo A300000210

MUFFLER

$128.99

$

Usually ships in 2-4 days

0

2

Echo A160000290

COVER, CYLINDER
(Superseded to Discontinued)

$

$

Not available

3

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

0

4

Echo 14551006210

GASKET, EXHAUST
(Superseded to 14551006211)

Note: Included In GASKET KIT

$3.99

$

Usually ships in 2-4 days

0

5

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

6

Echo 90010506020

BOLT 6×20

$1.49

$

In Stock, Qty 20+

0

7

Echo 14586221260

SCREEN, SPARK ARRESTER

$10.99

$

In Stock, Qty 5

0

8

Echo 14586621360

GASKET, EXHAUST

Note: Included In GASKET KIT

$3.49

$

In Stock, only 2 left!

0

9

Echo A303000030

GUIDE, EXHAUST

$19.99

$

Usually ships in 2-4 days

0

10

Echo V252000010

SCREW 4
(Superseded to Discontinued)

$

$

Not available
