PB-410 - Echo Backpack Blower (SN: 09001001 - 09999999) Carburetor -- WT-684 S/N: 09001001 - 09008528 Parts Diagram

A compact, lightweight (9.7 kg) two-stroke, single-cyl air-cooled engine (39.7 cc, 38 mm bore x 35 mm stroke) powered by a Walbro WT-684 diaphragm and capacitor-discharge ignition. Compact dimensions: 330 mm long without pipes, 440 mm width and height. Ideal for portable air-blowing tasks.

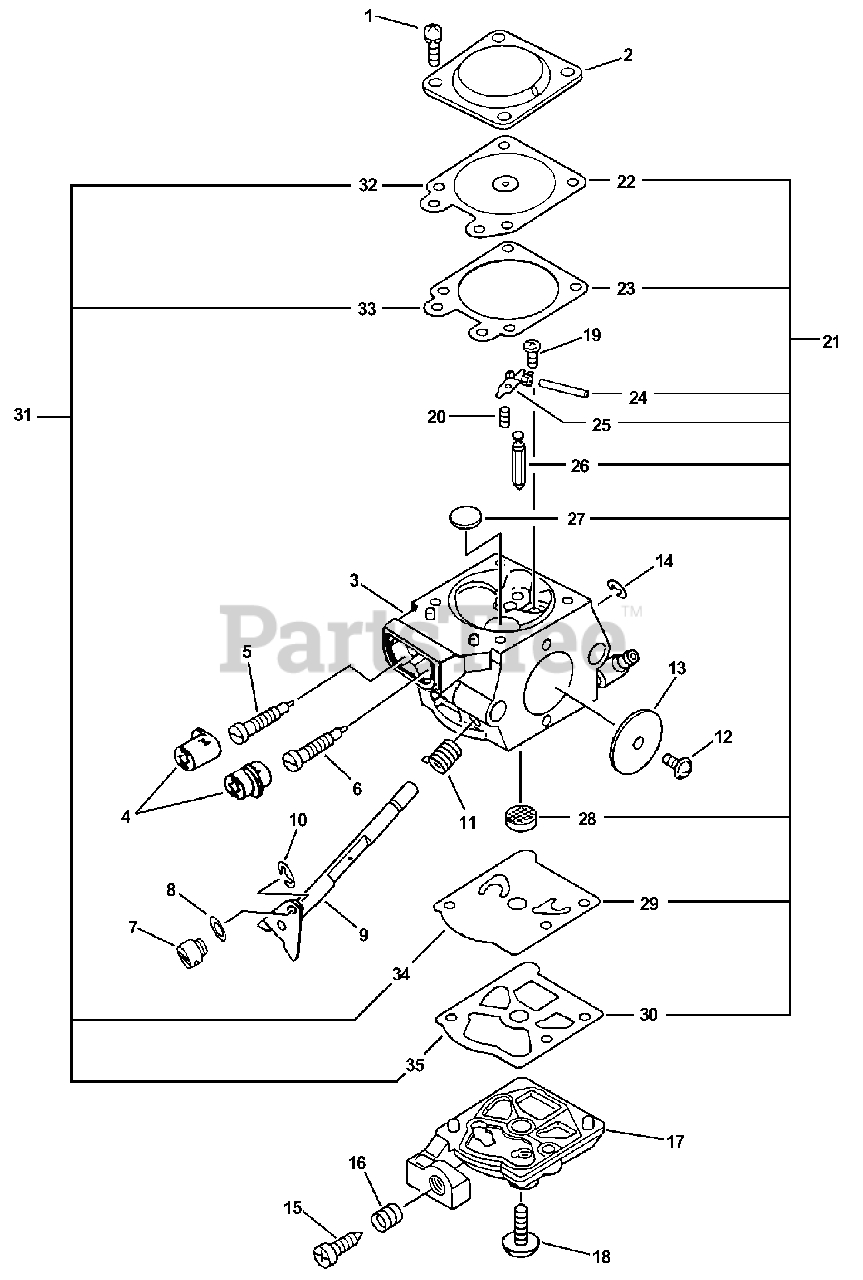

Carburetor -- WT-684 S/N: 09001001 - 09008528 Parts Diagram

  • Title

Echo A021000800

CARBURETOR - WT-684

$149.99

$

Usually ships in 2-4 days

0

1

Echo 12313002960

SCREW

$1.99

$

In Stock, only 1 left!

0

2

Echo 12314203930

COVER, METERING DIAPHRAGM

$4.99

$

In Stock, only 2 left!

0

3

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

4

Echo P003000010

CAP, LIMITER

$0.99

$

In Stock, Qty 20+

0

5

Echo 12312039231

NEEDLE, HIGH SPEED
(Superseded to Discontinued)

$

$

Not available

6

Echo 123118-02261

NEEDLE, MIXTURE
(Superseded to 12311802261)

$4.99

$

In Stock, Qty 6

0

7

Echo 12317226030

SWIVEL

$2.49

$

Usually ships in 2-4 days

0

8

Echo 12314926030

WASHER

$0.99

$

Usually ships in 2-4 days

0

9

Echo P003000070

SHAFT, THROTTLE

$6.49

$

Usually ships in 2-4 days

0

10

Echo 12317307930

E-RING

$1.49

$

In Stock, only 1 left!

0

11

Echo 12311309660

SPRING, THROTTLE RETURN

$1.49

$

In Stock, Qty 11

0

12

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 7

0

13

Echo 12311603930

VALVE, THROTTLE

$2.49

$

In Stock, only 2 left!

0

14

Echo 12312715030

E-RING

$0.99

$

In Stock, only 4 left!

0

15

Echo 12313404260

SCREW, IDLE ADJUST

$2.49

$

In Stock, only 1 left!

0

16

Echo 12313304260

SPRING, IDLE ADJUST

$7.49

$

In Stock, only 2 left!

0

17

Echo 12312402260

COVER, FUEL PUMP

$8.99

$

Usually ships in 2-4 days

0

18

Echo 12311003930

SCREW

$0.99

$

Usually ships in 2-4 days

0

19

Echo 12313903930

SCREW, METERING LEVER PIN

$6.99

$

Usually ships in 2-4 days

0

20

Echo 12312203660

SPRING, METERING LEVER

$1.99

$

Usually ships in 2-4 days

0

21

Echo P003001180

REPAIR KIT

Note: INCLUDES ITEMS 22-30

$15.99

$

In Stock, only 1 left!

0

22

DIAPHRAGM, METERING

$

$

Not available

23

GASKET, DIAPHRAGM

$

$

Not available

24

PIN, METERING LEVER

$

$

Not available

25

LEVER, METERING

$

$

Not available

26

VALVE, INLET NEEDLE

$

$

Not available

27

PLUG, WELCH

$

$

Not available

28

STRAINER

$

$

Not available

29

DIAPHRAGM, PUMP

$

$

Not available

30

GASKET, PUMP

$

$

Not available

31

Echo P003001190

GASKET / DIAPHRAGM KIT

Note: INCLUDES ITEMS 32-35

$7.99

$

Usually ships in 2-4 days

0

32

DIAPHRAGM, METERING

$

$

Not available

33

GASKET, DIAPHRAGM

$

$

Not available

34

DIAPHRAGM, PUMP

$

$

Not available

35

GASKET, PUMP

$

$

Not available
