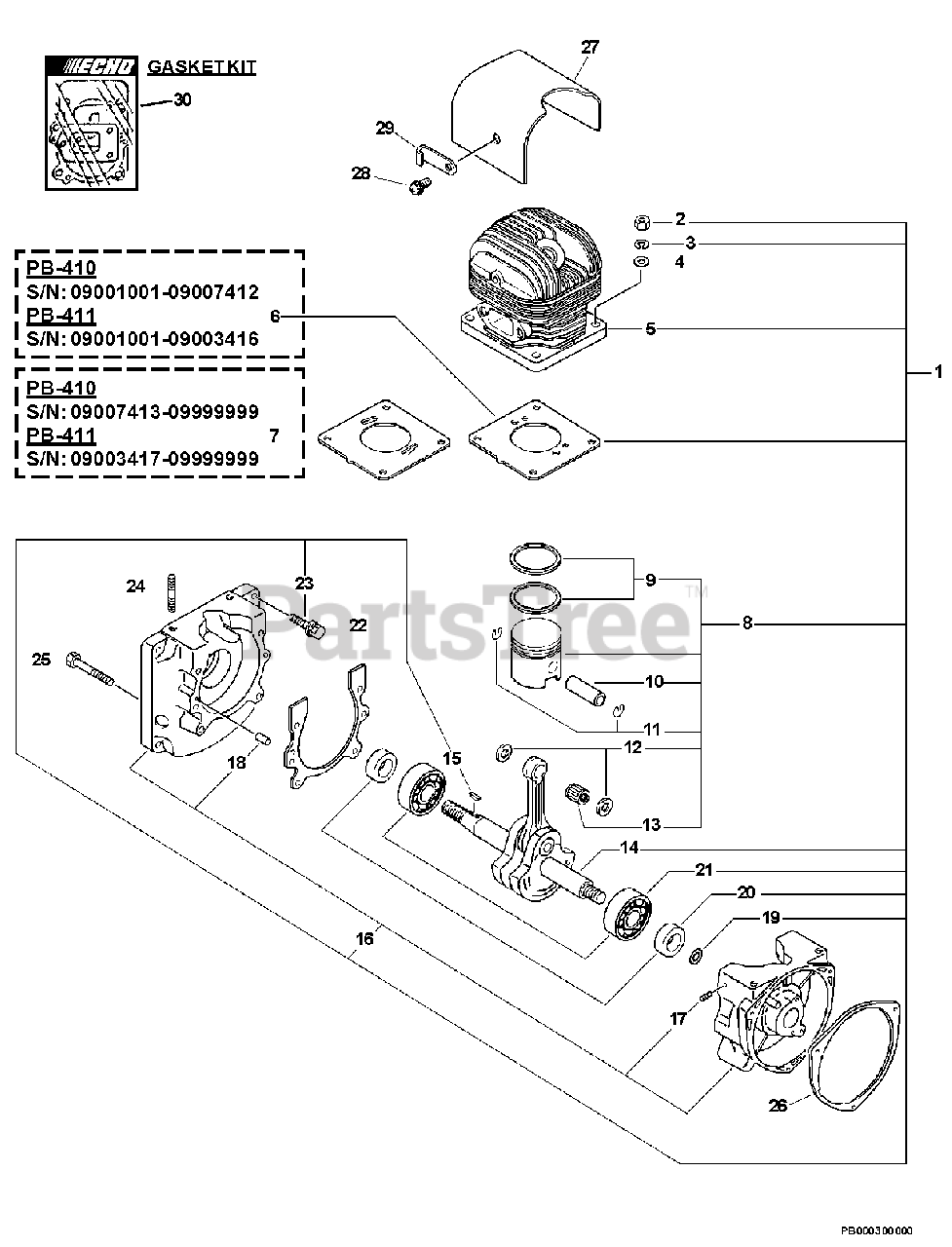

PB-410 - Echo Backpack Blower (SN: 09001001 - 09999999) Engine, Short Block, Cylinder Cover Parts Diagram

Backpack Blower

Engine, Short Block, Cylinder Cover Parts Diagram

  • Title

1

Echo SB1084

SHORT BLOCK -- SB1084

Note: Includes ITEM 2-25

$361.99

$

In Stock, Qty 6

0

2

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

3

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, Qty 20+

0

4

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 9

0

5

Echo A130000580

CYLINDER
(Superseded to A130000581)

$171.99

$

Usually ships in 2-4 days

0

6

Echo V100000150

GASKET, CYLINDER
(Superseded to V100000151)

$6.49

$

Usually ships in 2-4 days

0

7

Echo V100000151

GASKET, CYLINDER

$6.49

$

Usually ships in 2-4 days

0

8

Echo P021002380

PISTON KIT

Note: INCLUDES ITEMS 9-13

$68.99

$

Usually ships in 2-4 days

0

9

Echo 10001101110

RING, PISTON

$8.49

$

Usually ships in 2-4 days

0

10

Echo 10001300410

PIN, PISTON

$7.99

$

In Stock, only 1 left!

0

11

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 9

0

12

Echo 10001402260

SPACER, PISTON

$4.49

$

Usually ships in 2-4 days

0

13

Echo 10001212331

BEARING, NEEDLE

$12.99

$

In Stock, only 4 left!

0

14

Echo 10010002261

CRANKSHAFT ASSY

$166.99

$

In Stock, only 1 left!

0

15

Echo 10014200310

KEY

$1.49

$

Usually ships in 2-4 days

0

16

Echo P021007580

CRANKCASE KIT

Note: Includes ITEMS 17-18

$143.99

$

Usually ships in 2-4 days

0

17

Echo 13011312330

CONNECTOR

$1.49

$

Usually ships in 2-4 days

0

18

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

19

Echo 90061700010

WASHER - 10

$2.49

$

In Stock, only 1 left!

0

20

Echo 10021300310

SEAL, OIL

$5.99

$

In Stock, only 2 left!

0

21

Echo 9403546202

BEARING, BALL - 6202

$11.99

$

Usually ships in 2-4 days

0

22

Echo 10024201110

GASKET, CRANKCASE

$0.99

$

Usually ships in 2-4 days

0

23

Echo 90014206025

BOLT - 6X25

$0.99

$

Usually ships in 2-4 days

0

24

Echo 10025400130

STUD

$1.49

$

Usually ships in 2-4 days

0

25

Echo 10024401111

BOLT

$1.49

$

Usually ships in 2-4 days

0

26

Echo V105000000

GASKET, STARTER

$5.49

$

Usually ships in 2-4 days

0

27

Echo 10151401110

SHIELD, CYLINDER

$9.99

$

Usually ships in 2-4 days

0

28

Echo 90014006010

BOLT - 6X10

$0.99

$

Usually ships in 2-4 days

0

29

Echo 15911001110

CLAMP

$1.49

$

Usually ships in 2-4 days

0

30

Echo P021007570

GASKET KIT
(Superseded to P021007571)

$27.99

$

Usually ships in 2-4 days

0
