PB-410 - Echo Backpack Blower (SN: P07911001001 - P07911999999) Engine, Short Block -- SB1084 Parts Diagram

A compact, lightweight (9.7 kg) two-stroke, single-cyl air-cooled engine (39.7 cc, 38 mm bore x 35 mm stroke) powered by a Walbro WT-684 diaphragm and capacitor-discharge ignition. Compact dimensions: 330 mm long without pipes, 440 mm width and height. Ideal for portable air-blowing tasks.

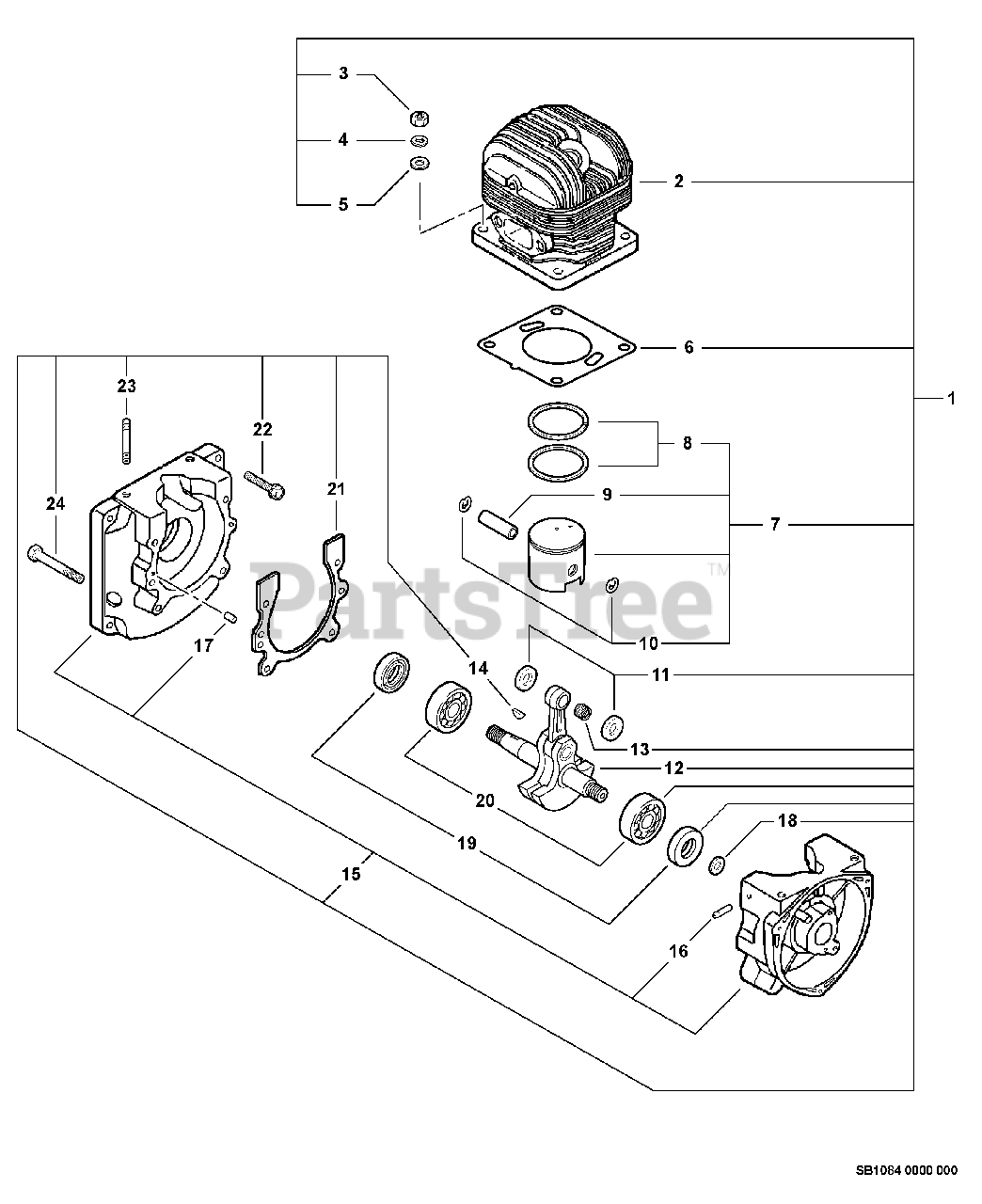

Engine, Short Block -- SB1084 Parts Diagram

  • Title

1

Echo SB1084

SHORT BLOCK

Note: Includes ITEM 2-25

$389.99

$

In Stock, Qty 6

0

2

Echo A130000580

CYLINDER
(Superseded to A130000581)

$184.99

$

Usually ships in 2-4 days

0

3

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

4

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 9

0

5

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

6

Echo V100000151

GASKET, CYLINDER

Note: Included In GASKET KIT

$6.99

$

Usually ships in 2-4 days

0

7

Echo P021002380

PISTON KIT

Note: INCLUDES ITEMS 9-13

$73.99

$

Usually ships in 2-4 days

0

8

Echo 10001101110

RING, PISTON

$8.99

$

Usually ships in 2-4 days

0

9

Echo 100013-00410

PIN, PISTON

$8.49

$

Usually ships in 2-4 days

0

10

Echo 100015-00120

RING, SNAP 8

$0.99

$

In Stock, Qty 10

0

11

Echo 10001402260

WASHER, THRUST

$4.49

$

Usually ships in 2-4 days

0

12

Echo 10010002261

CRANKSHAFT ASSY

$179.99

$

In Stock, only 1 left!

0

13

Echo 10001212331

BEARING, NEEDLE 10

$13.99

$

In Stock, only 2 left!

0

14

Echo 100142-00310

KEY

$1.99

$

Usually ships in 2-4 days

0

15

Echo P021007580

CRANKCASE KIT

Note: Includes ITEMS 17-18

$143.99

$

Usually ships in 2-4 days

0

16

Echo 13011312330

CONNECTOR

$1.49

$

Usually ships in 2-4 days

0

17

Echo 10021502830

PIN, LOCATING 5×10

$0.99

$

Usually ships in 2-4 days

0

18

Echo 90061700010

WASHER PB-400

$

$

Not available

19

Echo 100213-00310

SEAL, OIL

$6.49

$

In Stock, Qty 19

0

20

Echo 9403646202

BEARING, BALL 6202

$11.99

$

In Stock, only 2 left!

0

21

Echo 10024201110

GASKET

Note: Included In GASKET KIT

$0.99

$

Usually ships in 2-4 days

0

22

Echo 900142-06025

BOLT

$0.99

$

Usually ships in 2-4 days

0

23

Echo 10025400130

STUD

$1.99

$

Usually ships in 2-4 days

0

24

Echo 10024401111

BOLT

$1.49

$

Usually ships in 2-4 days

0
