PB-410 - Echo Backpack Blower (SN: P07911001001 - P07911999999) Fuel System Parts Diagram

A compact, lightweight (9.7 kg) two-stroke, single-cyl air-cooled engine (39.7 cc, 38 mm bore x 35 mm stroke) powered by a Walbro WT-684 diaphragm and capacitor-discharge ignition. Compact dimensions: 330 mm long without pipes, 440 mm width and height. Ideal for portable air-blowing tasks.

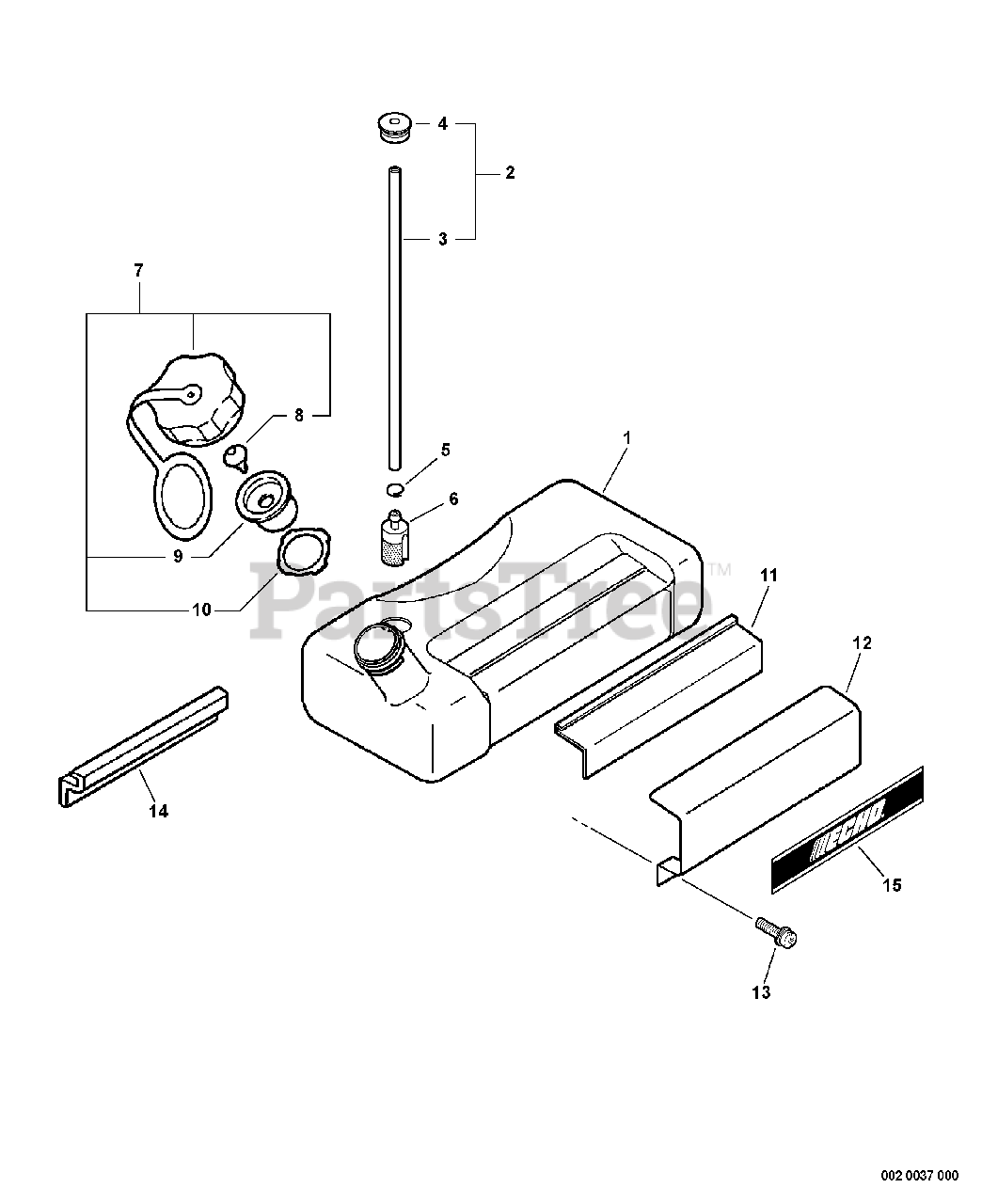

Fuel System Parts Diagram

  • Title

1

Echo A350000630

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

2

Echo 13200700760

PIPE, FUEL W/GROMMET 3×5×250L

Note: INCLUDES ITEMS 3-5

$6.99

$

In Stock, only 4 left!

0

3

Echo 13200700760

PIPE, FUEL W/GROMMET 3×5×250L

$6.99

$

In Stock, only 4 left!

0

4

Echo 13211511131

GROMMET

$2.49

$

In Stock, Qty 9

0

5

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 5

0

6

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.99

$

In Stock, Qty 20+

0

7

Echo 13160009861

CAP ASSY, FUEL
(Superseded to P100006490)

Note: INCLUDES ITEMS 8-10

$13.99

$

In Stock, only 2 left!

0

8

Echo 13131406320

VENT ASSY

$6.49

$

In Stock, Qty 20+

0

9

Echo A358000000

HOLDER, VENT
(Superseded to Discontinued)

$

$

Not available

10

Echo 13101621060

GASKET, FUEL CAP
(Superseded to 13101621061)

$

$

Not available

11

Echo 13192002260

CUSHION, FUEL TANK

$3.49

$

Usually ships in 2-4 days

0

12

Echo 13191002260

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

13

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

14

Echo A390000030

SEAT, FUEL TANK

$2.49

$

Usually ships in 2-4 days

0

15

Echo 89013800760

LABEL - ECHO

$4.49

$

Usually ships in 2-4 days

0
