PB-410 - Echo Backpack Blower (SN: P07911001001 - P07911999999) Ignition Parts Diagram

A compact, lightweight (9.7 kg) two-stroke, single-cyl air-cooled engine (39.7 cc, 38 mm bore x 35 mm stroke) powered by a Walbro WT-684 diaphragm and capacitor-discharge ignition. Compact dimensions: 330 mm long without pipes, 440 mm width and height. Ideal for portable air-blowing tasks.

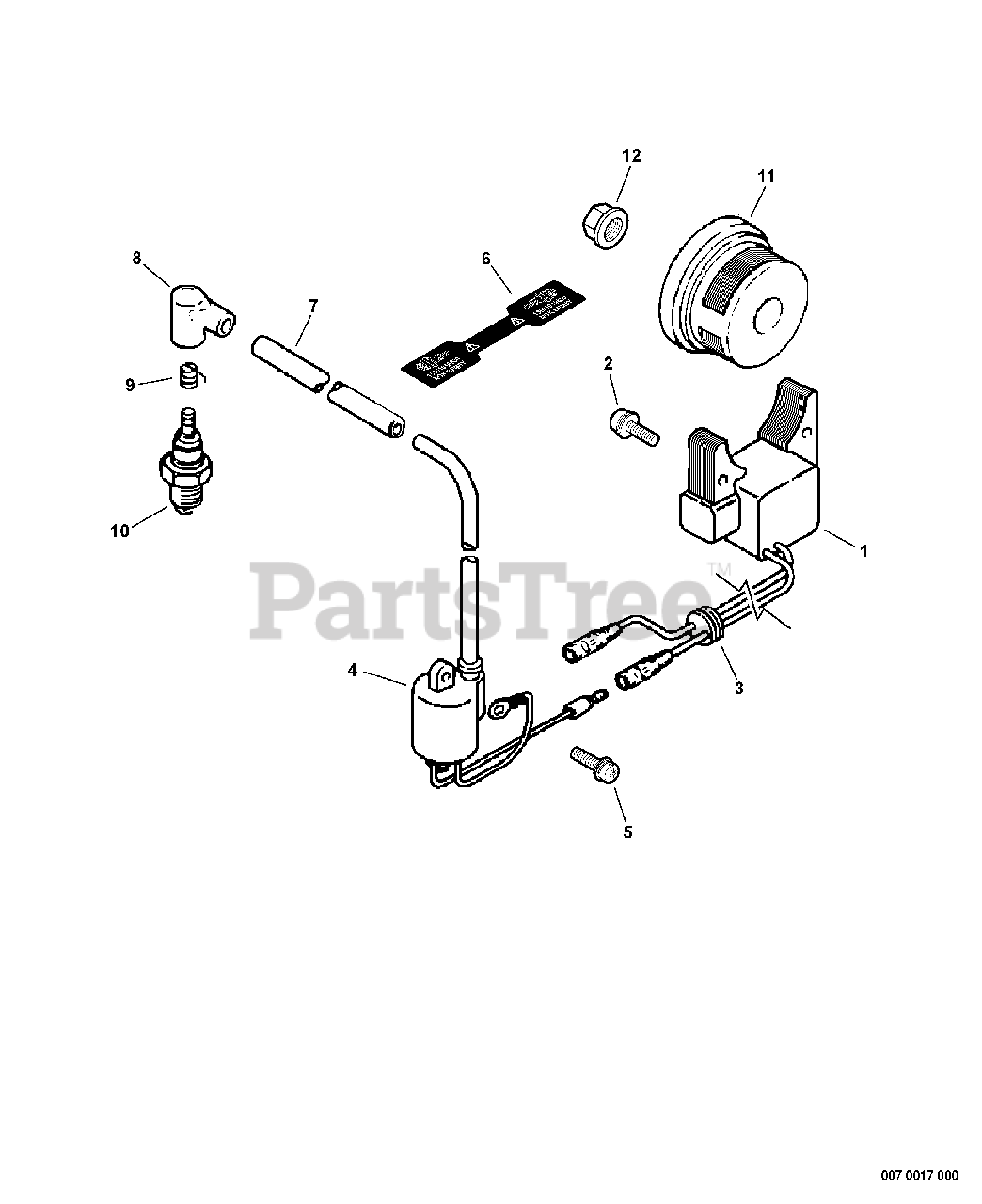

Ignition Parts Diagram

  • Title

1

Echo 15660102912

COIL, IGNITION

$124.99

$

In Stock, only 1 left!

0

2

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

3

Echo 15061402910

GROMMET

$0.99

$

In Stock, only 1 left!

0

4

Echo 15662602111

COIL, IGNITION

$108.99

$

In Stock, only 1 left!

0

5

Echo 900242-04016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

6

Echo X523000671

LABEL - SPARK PLUG

$

$

Currently unavailable

7

Echo 15011101110

TUBE, INSULATOR

$0.99

$

Usually ships in 2-4 days

0

8

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 9

0

9

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

10

Echo 15901019830

SPARK PLUG - BPM8Y

$3.99

$

In Stock, Qty 20+

0

11

Echo A409000260

FLYWHEEL

$97.99

$

Usually ships in 2-4 days

0

12

Echo 90051900010

NUT, FLANGE 10×1.25

$2.49

$

In Stock, only 4 left!

0
