PB-411 - Echo Backpack Blower (SN: 02001001 - 02999999) Engine, Short Block, Cylinder Cover Parts Diagram

Backpack Blower

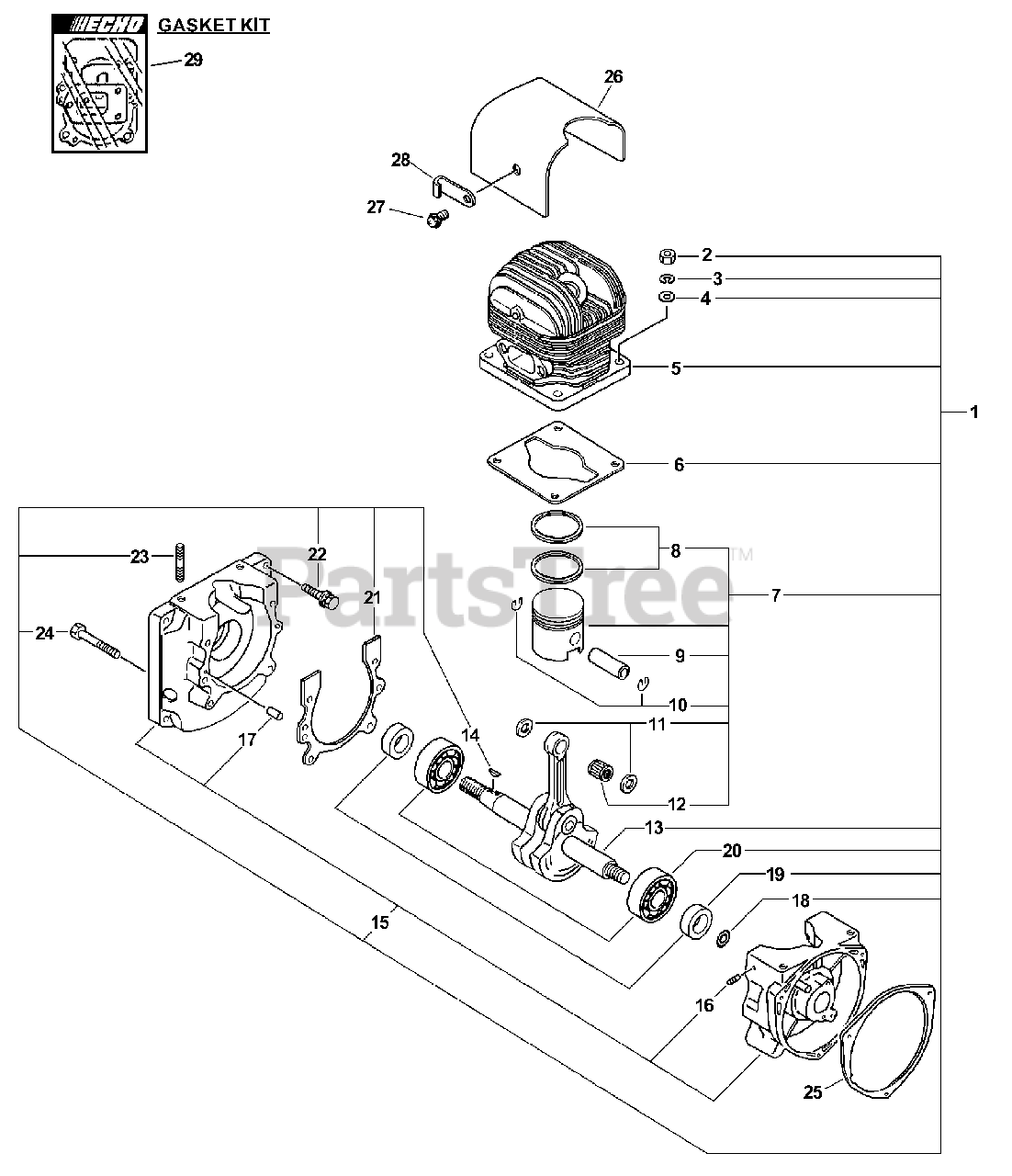

Engine, Short Block, Cylinder Cover Parts Diagram

  • Title

1

Echo SB1056

SHORT BLOCK

Note: Includes ITEM 2-24

$389.99

$

Usually ships in 2-4 days

0

2

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

3

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 15

0

4

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

5

Echo A130000180

CYLINDER

$195.99

$

Usually ships in 2-4 days

0

6

Echo 10101000760

GASKET, CYLINDER
(Superseded to Discontinued)

Note: Included In GASKET KIT

$

$

Not available

7

Echo P021002380

PISTON KIT

Note: INCLUDES ITEMS 8-12

$73.99

$

Usually ships in 2-4 days

0

8

Echo 10001101110

RING, PISTON

$8.99

$

Usually ships in 2-4 days

0

9

Echo 100013-00410

PIN, PISTON

$8.49

$

Usually ships in 2-4 days

0

10

Echo 100015-00120

RING, SNAP 8

$0.99

$

In Stock, Qty 10

0

11

Echo 10001402260

WASHER, THRUST

$4.49

$

Usually ships in 2-4 days

0

12

Echo 10001212331

BEARING, NEEDLE 10

$13.99

$

In Stock, only 2 left!

0

13

Echo 10010002261

CRANKSHAFT ASSY

$179.99

$

In Stock, only 1 left!

0

14

Echo 100142-00310

KEY

$1.99

$

Usually ships in 2-4 days

0

15

Echo 10020000760

CRANKCASE KIT
(Superseded to Discontinued)

Note: Includes ITEMS 16-17

$

$

Not available

16

Echo 13011312330

CONNECTOR

$1.49

$

Usually ships in 2-4 days

0

17

Echo 10021502830

PIN, LOCATING 5×10

$0.99

$

Usually ships in 2-4 days

0

18

Echo 90061700010

WASHER PB-400

$

$

Not available

19

Echo 100213-00310

SEAL, OIL

$6.49

$

In Stock, Qty 9

0

20

Echo 9403546202

BEARING, BALL

$11.99

$

In Stock, only 2 left!

0

21

Echo 10024201110

GASKET

Note: Included In GASKET KIT

$0.99

$

Usually ships in 2-4 days

0

22

Echo 900142-06025

BOLT

$0.99

$

Usually ships in 2-4 days

0

23

Echo 10025400130

STUD

$1.99

$

Usually ships in 2-4 days

0

24

Echo 10024401111

BOLT

$1.49

$

Usually ships in 2-4 days

0

25

Echo V105000000

GASKET, STARTER

Note: Included In GASKET KIT

$5.99

$

Usually ships in 2-4 days

0

26

Echo 10151401110

COVER, CYLINDER

$10.99

$

Usually ships in 2-4 days

0

27

Echo 90014006010

BOLT 6×10

$0.99

$

Usually ships in 2-4 days

0

28

Echo 15911001110

CLIP, CORD

$1.99

$

Usually ships in 2-4 days

0

29

Echo P021002450

GASKET KIT
(Superseded to P021002451)

$

$

Not available
