PB-411 - Echo Backpack Blower (SN: 09001001 - 09999999) Blower Tubes Parts Diagram

Backpack Blower (PB-411) - 39.7 ml 2-stroke, 1-cyl engine. 7000-7600 rpm, NGK BPM-8Y 0.65 mm spark plug. 38 x 35 mm bore, 684 g flywheel. 330 x 440 x 440 mm, 9.7 kg. 1.5 L fuel tank, runs on 50:1 gas+oil (?15 % MTBE) with Echo 2-stroke 89 octan oil. 2003 Echo model.

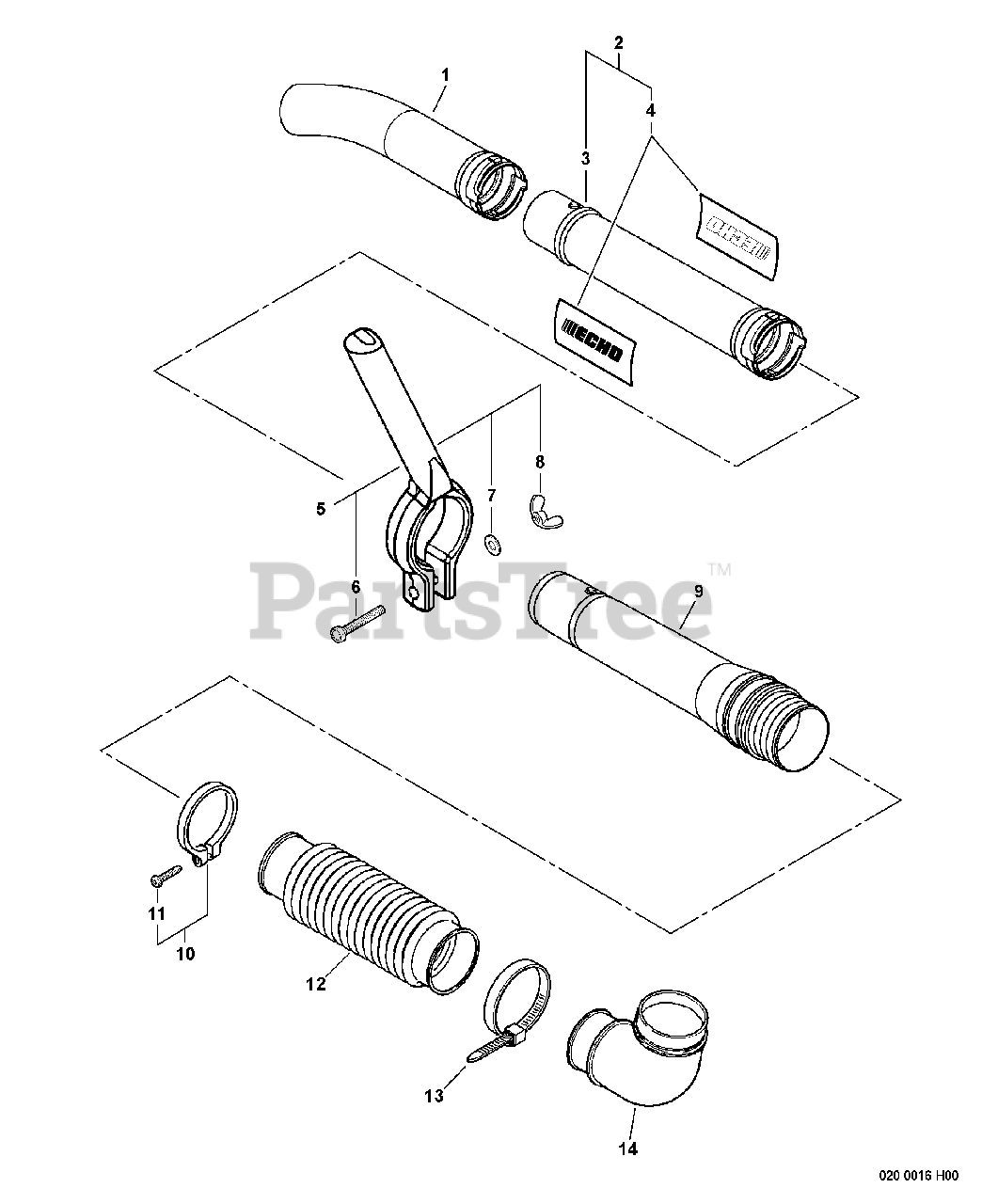

Blower Tubes Parts Diagram

  • Title

1

Echo 21002303461

TUBE, BLOWER - CURVED

$20.99

$

In Stock, Qty 10

0

2

Echo 21000103462

BLOWER TUBE KIT - STRAIGHT
(Superseded to 21000103463)

Note: INCLUDES ITEMS 3-4

$17.99

$

In Stock, Qty 5

0

3

Echo 21001503460

TUBE, BLOWER - STRAIGHT
(Superseded to 21001503461)

$13.99

$

In Stock, Qty 11

0

4

Echo 89011804262

LABEL, ECHO BLOWER TUBE

$1.99

$

In Stock, Qty 6

0

5

Echo 35130009860

HANDLE ASSY

Note: Includes ITEMS 6-8

$17.99

$

Usually ships in 2-4 days

0

6

Echo 90010006045

BOLT 6×45

$0.99

$

In Stock, Qty 20+

0

7

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

8

Echo 90052500006

NUT, WING 6

$1.99

$

In Stock, only 4 left!

0

9

Echo 21200503460

TUBE, BLOWER - SWIVEL

$27.99

$

In Stock, only 3 left!

0

10

Echo 21040000660

CLAMP KIT
(Superseded to P021043140)

Note: Includes ITEM 11

$8.49

$

In Stock, Qty 9

0

11

Echo 90023505030

SCREW 5×30

$

$

Not available

12

Echo 21001201112

TUBE, FLEXIBLE

$86.99

$

In Stock, only 2 left!

0

13

Echo V495000430

CLAMP 58.7 MM / 82.5 MM

$2.49

$

In Stock, Qty 10

0

14

Echo 21001101160

ELBOW

$16.99

$

Usually ships in 2-4 days

0
