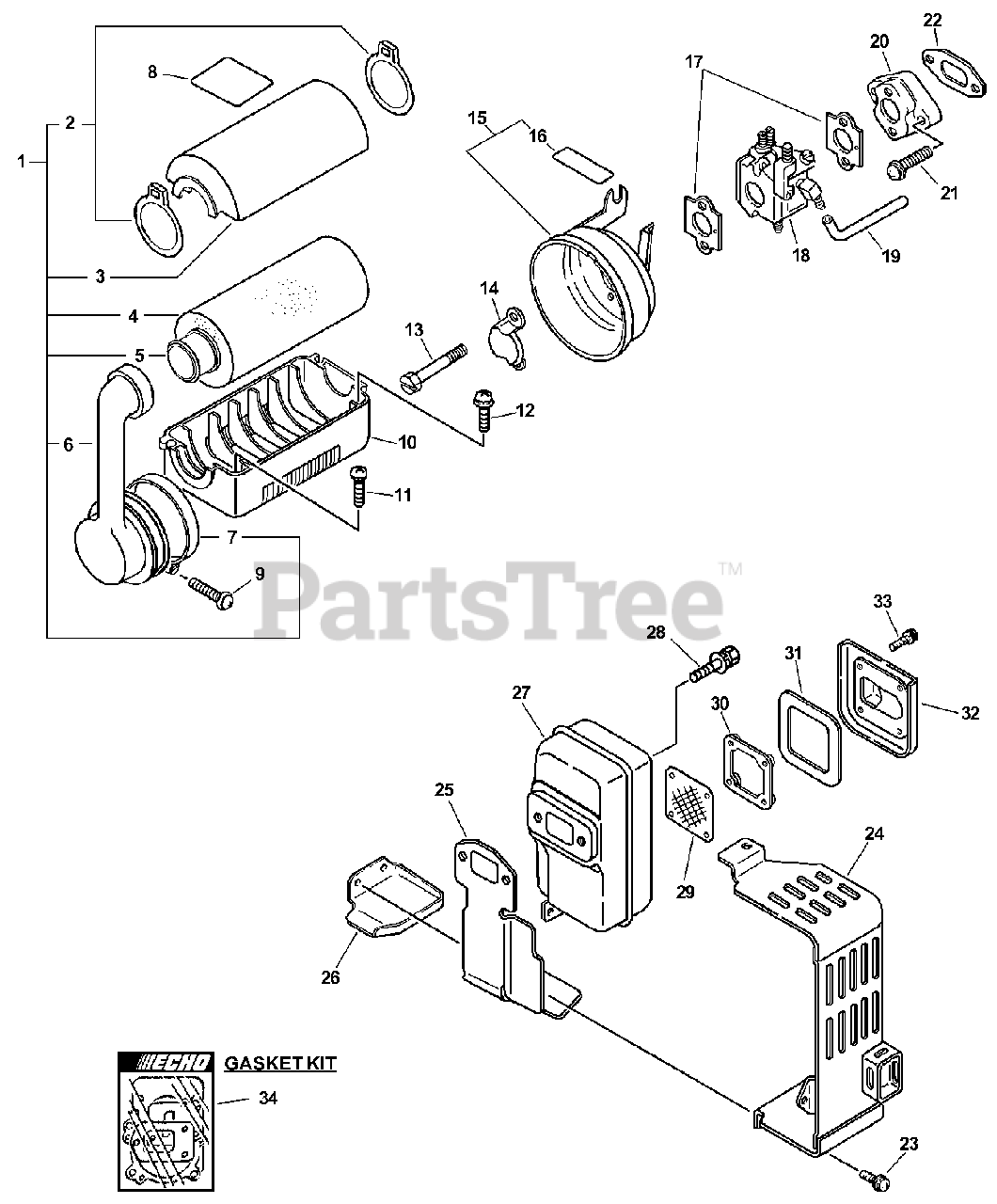

PB-411 - Echo Backpack Blower (SN: 09001001 - 09999999) Intake, Exhaust Parts Diagram

Backpack Blower

Intake, Exhaust Parts Diagram

  • Title

1

Echo 13030402262

AIR CLEANER ASSY

Note: INCLUDES ITEMS 2-7

$111.99

$

Usually ships in 2-4 days

0

2

Echo 13034100760

CLAMP

$7.49

$

In Stock, Qty 9

0

3

Echo 13032600763

COVER, AIR FILTER

$14.99

$

In Stock, only 1 left!

0

4

Echo 13031700760

FILTER, AIR

$46.99

$

In Stock, Qty 17

0

5

Echo 13031100761

FILTER, AIR

$7.49

$

Usually ships in 2-4 days

0

6

Echo 13071102260

ADAPTOR, INTAKE

$49.99

$

In Stock, Qty 5

0

7

Echo 13071302260

CLAMP

$7.49

$

In Stock, only 1 left!

0

8

Echo 89016003360

LABEL - CAUTION
(Superseded to 89016009461)

$1.99

$

In Stock, Qty 18

0

9

Echo 90023505030

SCREW - 5X30

$0.99

$

Usually ships in 2-4 days

0

10

Echo 13031800763

CASE, AIR FILTER

$17.99

$

Usually ships in 2-4 days

0

11

Echo 90022006015

SCREW - 6X15

$0.99

$

Usually ships in 2-4 days

0

12

Echo 90024206020

SCREW - 6X20

$0.99

$

In Stock, Qty 6

0

13

Echo 90022005050

SCREW - 5X55

$0.99

$

Usually ships in 2-4 days

0

14

Echo 12901102260

PLATE, PREVENT

$4.99

$

In Stock, Qty 6

0

15

Echo 13030702361

CASE, AIR FILTER

Note: Includes ITEM 16

$25.99

$

In Stock, only 1 left!

0

16

Echo X506000010

LABEL - CHOKE

$1.49

$

In Stock, only 3 left!

0

17

Echo 13001606232

GASKET, INTAKE

$0.99

$

In Stock, Qty 9

0

18

Echo A021000800

CARBURETOR WT-684

$138.99

$

Usually ships in 2-4 days

0

19

Echo 13011000760

PIPE - IMPULSE
(Superseded to V471001880)

$1.99

$

In Stock, Qty 20+

0

20

Echo A200000230

INSULATOR, INTAKE

$7.99

$

Usually ships in 2-4 days

0

21

Echo 90024206025

SCREW - 6X25

$0.99

$

Usually ships in 2-4 days

0

22

Echo 13001000762

GASKET, INTAKE
(Superseded to 13001000763)

$1.99

$

In Stock, Qty 20+

0

23

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

24

Echo A320000050

SHIELD, EXHAUST

$41.99

$

In Stock, only 1 left!

0

25

Echo 14551002261

GASKET, EXHAUST

$14.99

$

In Stock, only 1 left!

0

26

Echo 14571502260

BRACKET, MUFFLER COVER

$7.99

$

Usually ships in 2-4 days

0

27

Echo A300000150

MUFFLER
(Superseded to A300001500)

$109.99

$

In Stock, only 1 left!

0

28

Echo 90016206020

SCREW - 6X20

$1.49

$

In Stock, only 4 left!

0

29

Echo 14580100761

SCREEN, SPARK ARRESTOR

$9.99

$

Usually ships in 2-4 days

0

30

Echo 14588200761

RETAINER, SCREEN

$4.99

$

In Stock, only 1 left!

0

31

Echo V104000540

GASKET, EXHAUST

$3.99

$

Usually ships in 2-4 days

0

32

Echo A313000510

GUIDE, EXHAUST

$11.99

$

Usually ships in 2-4 days

0

33

Echo 90024204016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

34

Echo P021007570

GASKET KIT
(Superseded to P021007571)

$27.99

$

Usually ships in 2-4 days

0
