PB-413 H - Echo Backpack Blower (SN: 10001001 - 10999999) Backpack Frame, Harness Parts Diagram

Backpack Blower

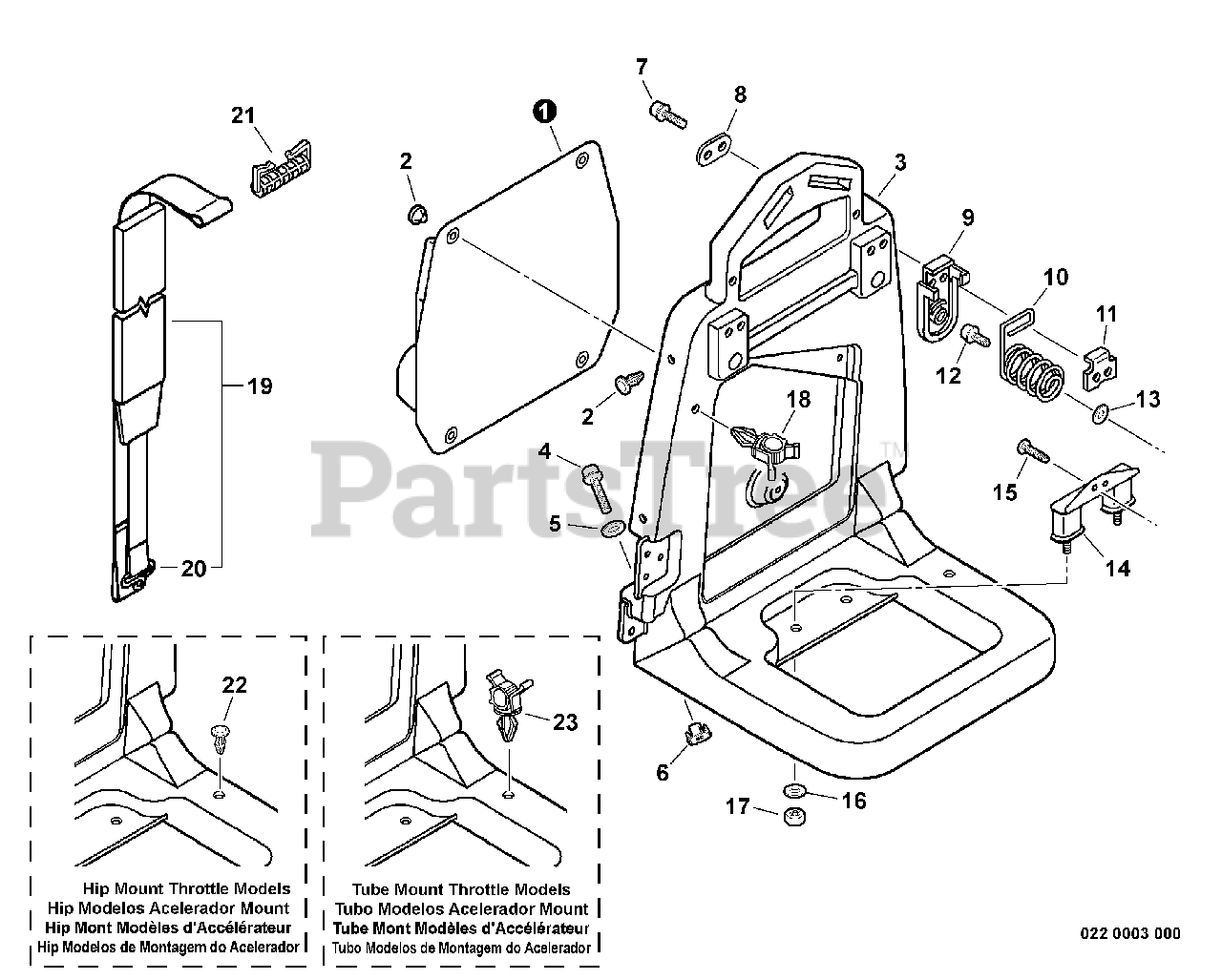

Backpack Frame, Harness Parts Diagram

  • Title

1

Echo 30010508261

CUSHION, BACKPACK

$22.99

$

In Stock, Qty 15

0

2

Echo V491000120

CLIP

$0.99

$

In Stock, Qty 20+

0

3

Echo C620000212

FRAME, BACKPACK

$42.99

$

Usually ships in 2-4 days

0

4

Echo 90010506025

BOLT 6×25

$1.49

$

In Stock, Qty 16

0

5

Echo V304000040

WASHER 6.6×20×1.6

$0.99

$

In Stock, Qty 20+

0

6

Echo C622000000

T-NUT

$0.99

$

Usually ships in 2-4 days

0

7

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

8

Echo V150001350

PLATE, EYE

$0.99

$

In Stock, Qty 6

0

9

Echo V456000010

HOLDER, SPRING

$0.99

$

In Stock, Qty 10

0

10

Echo V450000390

SPRING, COMPRESSION

$4.99

$

Usually ships in 2-4 days

0

11

Echo V263000050

PLATE, THREADED

$1.49

$

In Stock, Qty 5

0

12

Echo 9114705020

BOLT 5×20

$0.99

$

In Stock, Qty 20+

0

13

Echo 61301907350

WASHER 5.5×16×2T

$0.99

$

In Stock, Qty 20+

0

14

Echo V401000110

CUSHION 5

$14.99

$

In Stock, only 2 left!

0

15

Echo 90025305016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

16

Echo 30021700610

WASHER 5.5×18×1

$0.99

$

In Stock, Qty 10

0

17

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

18

Echo V491000110

CLIP, CABLE

$2.49

$

Usually ships in 2-4 days

0

19

Echo C061000111

HARNESS ASSY, BACKPACK

Note: Includes ITEM 20

$17.99

$

In Stock, Qty 5

0

20

Echo 30101608260

RING, HARNESS

$0.99

$

In Stock, Qty 10

0

21

Echo V491000040

CLIP, HARNESS

$1.49

$

In Stock, Qty 20+

0

22

Echo V491000120

CLIP

$0.99

$

In Stock, Qty 20+

0

23

Echo V491000110

CLIP, CABLE

$2.49

$

Usually ships in 2-4 days

0
