PB-413 H - Echo Backpack Blower (SN: 10001001 - 10999999) Exhaust Parts Diagram

Backpack Blower - 44 cc, air-cooled 2-stroke single-cylinder engine, 70 dB intake noise. Dimensions: 325 mm x 515 mm x 440 mm (L x W x H); dry weight 10 kg.

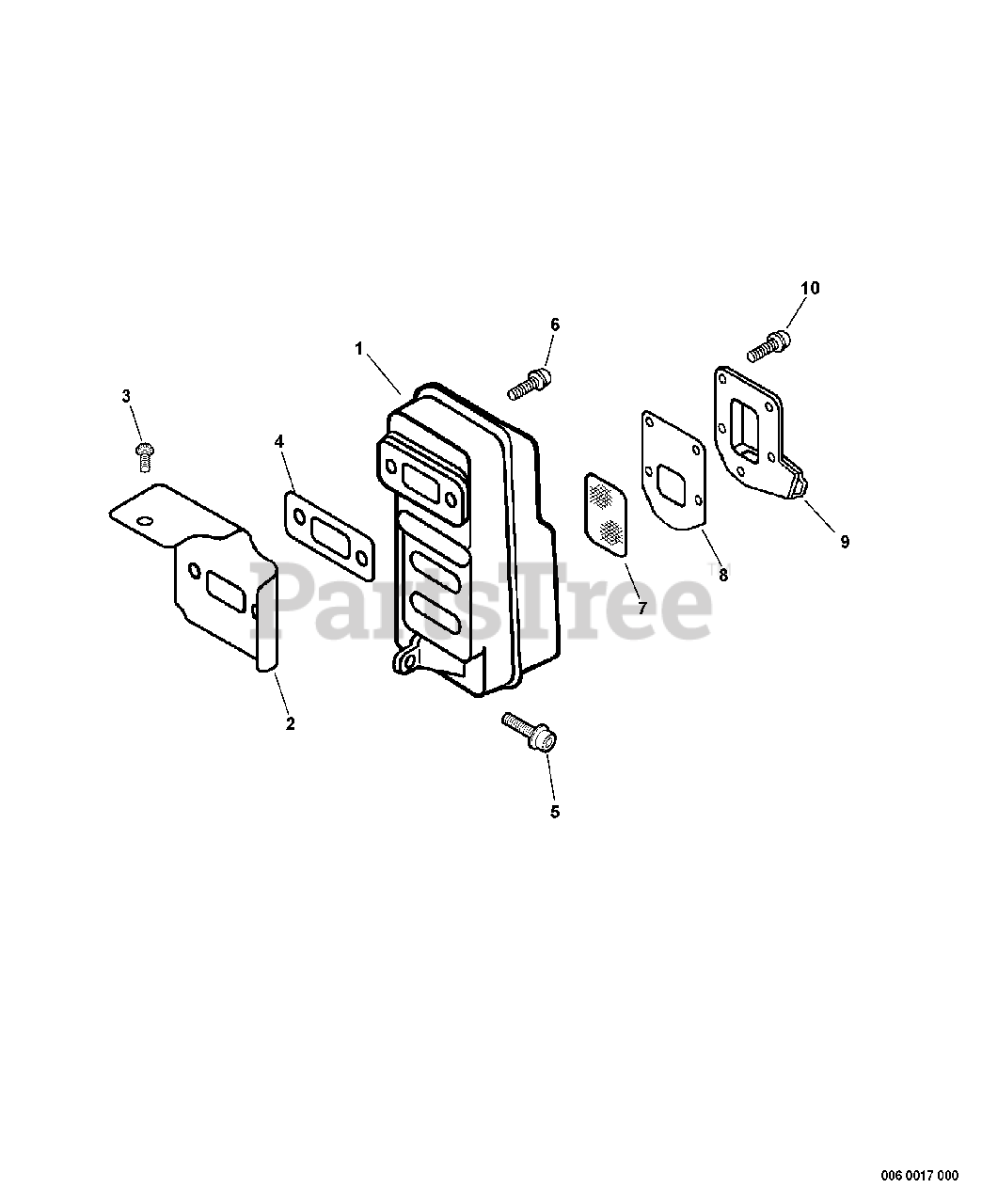

Exhaust Parts Diagram

  • Title

1

Echo A300000204

MUFFLER
(Superseded to P021007514)

$

$

Not available

2

Echo A160000290

COVER, CYLINDER
(Superseded to Discontinued)

$

$

Not available

3

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

0

4

Echo 14551006211

GASKET, MUFFLER

Note: Included In GASKET KIT

$3.99

$

Usually ships in 2-4 days

0

5

Echo 90010605020

BOLT 5×20

$1.49

$

In Stock, Qty 5

0

6

Echo 90010506020

BOLT 6×20

$1.49

$

In Stock, Qty 20+

0

7

Echo 14586206720

SCREEN, SPARK ARRESTER

$5.49

$

In Stock, Qty 7

0

8

Echo V104000220

GASKET, EXHAUST

Note: Included In GASKET KIT

$2.99

$

In Stock, Qty 10

0

9

Echo A313000260

GUIDE, EXHAUST

$14.99

$

Usually ships in 2-4 days

0

10

Echo 90023804010

SCREW 4×10

$0.99

$

In Stock, Qty 6

0
